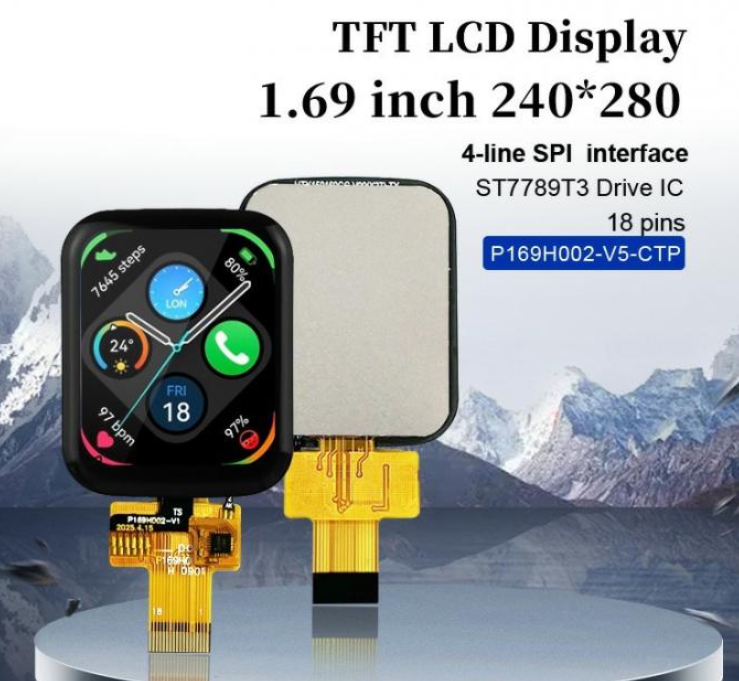

Parameter:
| Model | P169H002-V5-CTP |
| Screen Size | 1.69 inch |
| Number of Pixel | 240RGB(H)x280(V) |
| Display area | 27.97(H)x32.63(V)mm |
| Pixel pitch | 0.11655(H)x0.11655(V)mm |
| Pins | 18 Pins |
| Outline Dimension | 33.13x41.13x3.8 mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 500 nit |
| Contrast Ratio | 1000:1 |
| Interface | 4-line SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789T3 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
The module's active display area is 27.97mm (horizontal) × 32.63mm (vertical), and the size of a single pixel is only 0.11655mm × 0.11655mm. Prolife in the display is delivered by the RGB vertical stripe pixel arrangement that supports a total of 262K colors. The brightness of the display is set to a maximum of 500 nits, which is quite a bit higher than a typical display of the same size. This display remains visible and readable even under direct sunlight outdoors or in brightly lit indoor environments such as sports venues, where it effectively reduces the impact of ambient light on the user's experience. Besides that, the form factor of the LED side-entry backlight system is only slightly intrusive, while the spatial distribution of light is even, and power consumption can be controlled, thus allowing the extension of battery life for wearable devices that run on batteries.
The maximum brightness of the display is 500 nits, which is significantly higher than that of normal size displays. The display continues to be perfectly visible and readable even when it is used outdoors where there is direct sunlight, or in brightly lit places such as being at the sports fields, which greatly reduces the impact of ambient light on the user's visual experience. The LED side-entry backlight system is slender and lightweight, deliver even illumination, and the power consumption can be controlled, therefore, it is able to improve the battery running time of portable wearable devices.

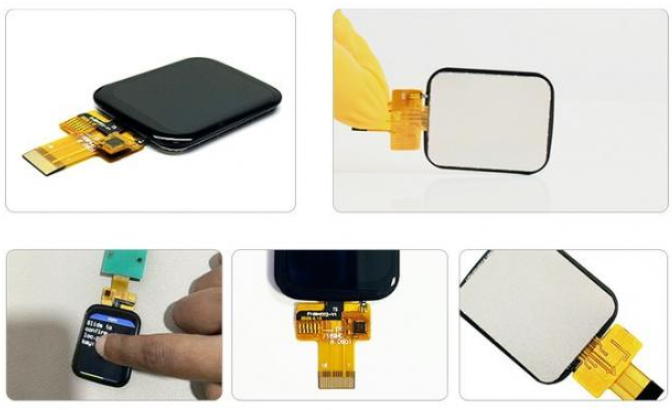

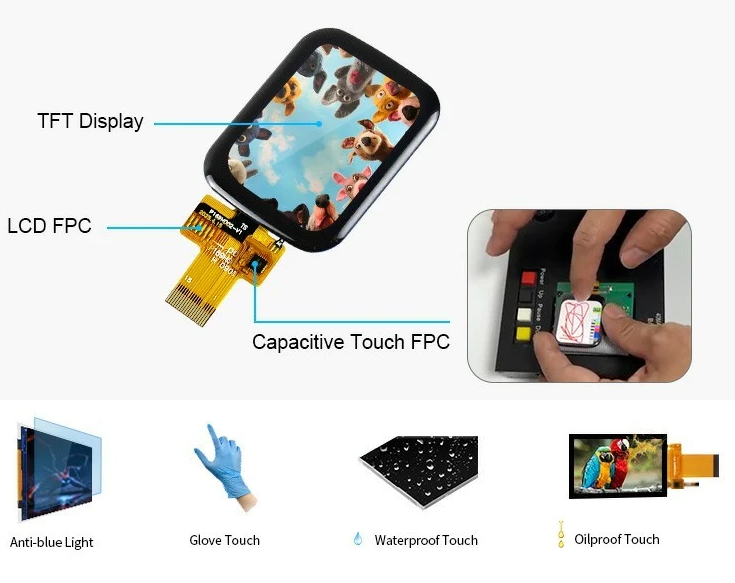

For communication purposes, the panel is equipped with an 18-pin FPC cable that connects to a 4-wire SPI serial communication protocol; this system requires only a very small number of GPIO resources to operate the display and touch features simultaneously, therefore it is very suitable for low-power Bluetooth SoCs, Nordic nRF series, and various microcontrollers. The module's dimensions are 33.13mm × 41.13mm × 3.8mm, and it boasts a very neatly packed layout.
Established in 2014, Shenzhen Yitai Optoelectronics is a national high-tech enterprise that has been experienced with the manufacturing of displays for 12 years. We work in an independent factory spanning 20,000 square meters which is furnished with 20 automated LCD production lines and a 10,000-class dust-free workshop. Having a staff of more than 320, we can produce 2.5 to 3 million units monthly to supply large-scale order demands.
Our 28 professional R&D team is devoted to innovation and has created more than 1,000 TN/HTN/STN/VA displays and different TFT color LCD screens. We make mainly 0.96-7 inch small-size displays for industrial and consumer areas, and provide LED backlight customization services. We have over 20 patents and ISO9001 certification.
In line with the philosophy of the customer first and quality foremost, all of our products are subjected to strict tests to ensure their stable performance even in complicated environments. We also regularly upgrade our production lines which allow us to maintain our manufacturing capability at the very top of the industry.
Our products are used in medical devices, smart home, IoT and testing equipment. We have a strong sales network not only in China but also in Europe, America and Southeast Asia.
Along with a major communication equipment manufacturer, we designed a 3.5-inch industrial-grade intercom display. They required a high-brightness IPS fully laminated touch screen with waterproofing up to IP67 level. We redesigned the shock-resistant frame and anti-slip texture, which are the distinctive characteristics of the industry, and at the same time ensured dependable functioning in the tough environments. The display features automatic adjustment using light-sensing technology and that it can intelligently detect light and switch to day or night display mode accordingly thereby significantly increasing the ease of seeing and productivity in outdoor work.

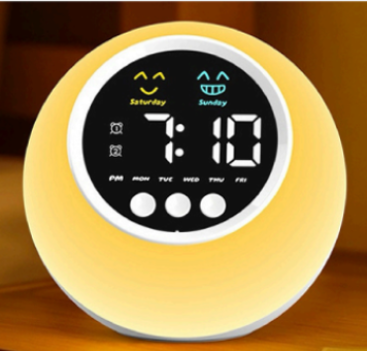

In cooperation with a famous household brand, we made a 2.8-inch minimalist clock display with a low-power IPS full lamination technology and a wide viewing angle of 180° enabling clear view from different angles. Since the clock is mostly used in the bedroom, the ultra-thin borderless design and the soft light guide structure were both optimized to fit perfectly the modern home style. An intelligent light-sensing adjustment system is integrated into the screen which can switch the display modes automatically corresponding to the change in the daylight and at night it switches to the soft light mode automagically, so the time is visible clearly without affecting the quality of sleep.

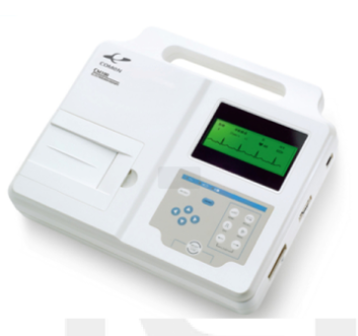

We custom-built a 5-inch medical-grade touch display based on a high-resolution IPS fully laminated panel for a globally recognized medical manufacturer. Our medical device is designed to meet Class B electromagnetic compatibility standards. We have implemented antibacterial bezels and also offered an anti-glare surface as we recognize that the products need to be used in sterile environments such as operating theaters. The screen features an intelligent ambient light sensor which adjusts the display parameters to minimize the occurrence of eye fatigue which among other things will enhance the level of efficiency in diagnosis and medical treatments by the healthcare personnel.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
