Product Details
P/N: | P023H022 | Size (inch): | 2.31 |
Resolution: | 320*240 | Brightness (cd/m²): | 250 |
Interface: | MCU 8/16BIT, SPI3/4wire, RGB 18BIT | Driver Ic: | ILI9342C |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm | Delivery Time | 1-7 working days |
Payment Terms | T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram | Supply Ability | 40,000 PCS per day |
Product Description

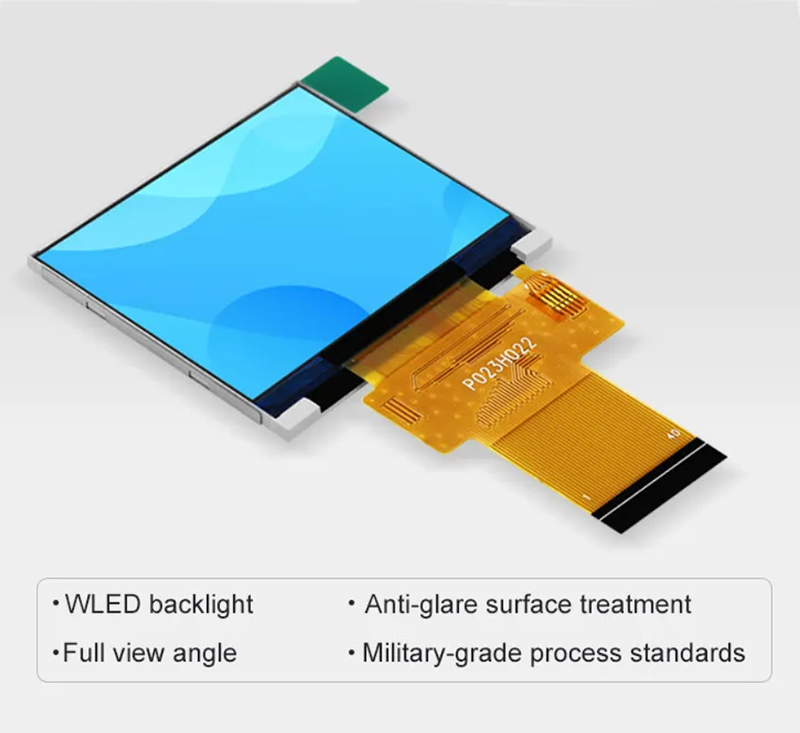

This Medical LCD Display is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 2.31 inch then our lcd is just what you need. Improve your product design by adding our 320 * 240 resolution product. QC department measured the luminance is 300 nits under normal operating.
| Item | Specification |
| Model | P023H022 |
| Screen Size | 2.31 inch |
| Number of Pixel | 320RGB(H)x240(V) |
| Display area | 46.75(H)x35.06(V)mm |
| Pixel pitch | 0.1461(H)x0.1461(V)mm |
| Pins | 40 pins |

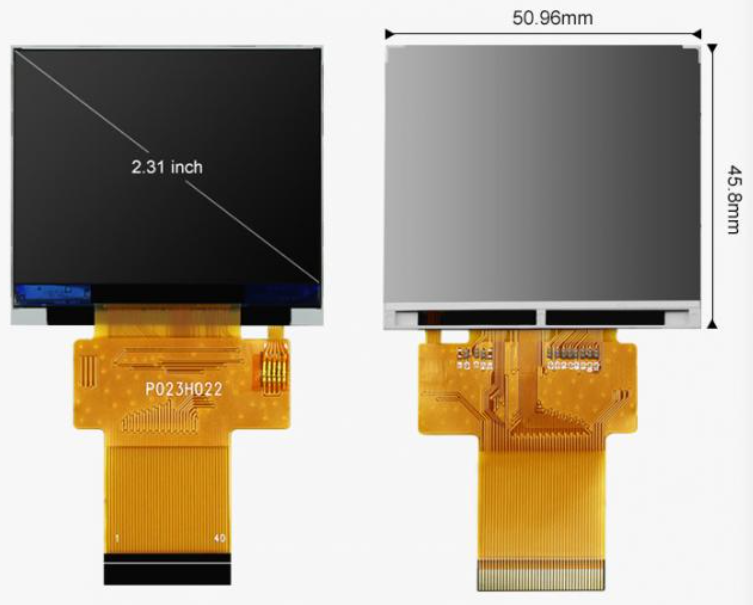

| Outline Dimension | 50.96x45.80x2.40mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally White |
| Viewing Direction(eye) | 12 0'CLOCK |
| Gray inversion direction | -- |
| Display Color | 262K |
| Luminance(cd/m2) | 250 nit |
| Contrast Ratio | 500:1 |
| Surface treatment | -- |
| Interface | MCU8/16BIT SPI3/4wire RGB18BIT |
| Back-light | LED Side-light type |
| Drive IC | ILI9342C |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
| Weight | -- |
This type of RGB 18bit can be suitable for a variety of scenarios. From the datasheet we can know the driver of the LCD is is ILI9342C. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).
Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.
Q: How long can I get the goods?
A: It depends on the quantity. Our inventory is mainly raw materials, semi-finished and a small number of finished products. Samples available in stock will be sent in 3 days; Small batch delivery takes 15-20 working days include producing; Large batch delivery takes 20-30 working days. We will list the time cost for you before order.
Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
