Product Details
Size: | 2 Inch | Resolution: | 240*320 |
Brightness (cd/m²): | 300 Nit | Interface: | MCU 8BIT |
Driver Ic: | ST7789V | PIN: | 20 Pin |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm | Delivery Time | 1-7 working days |
Payment Terms | T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram | Supply Ability | 40,000 PCS per day |
Product Description
Product description:
The 2.0 inch TFT LCD is a versatile display technology that offers high resolution, accurate color representation, low power consumption, and a compact size. It is a popular choice for use in handheld devices like digital cameras, portable media players, and gaming devices.
Parameter:
| Model | P020H017-IPS |
| Screen Size | 2.0 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 30.60(H)x40.80(V)mm |
| Pixel pitch | 0.0425(H)x0.1275(V)mm |

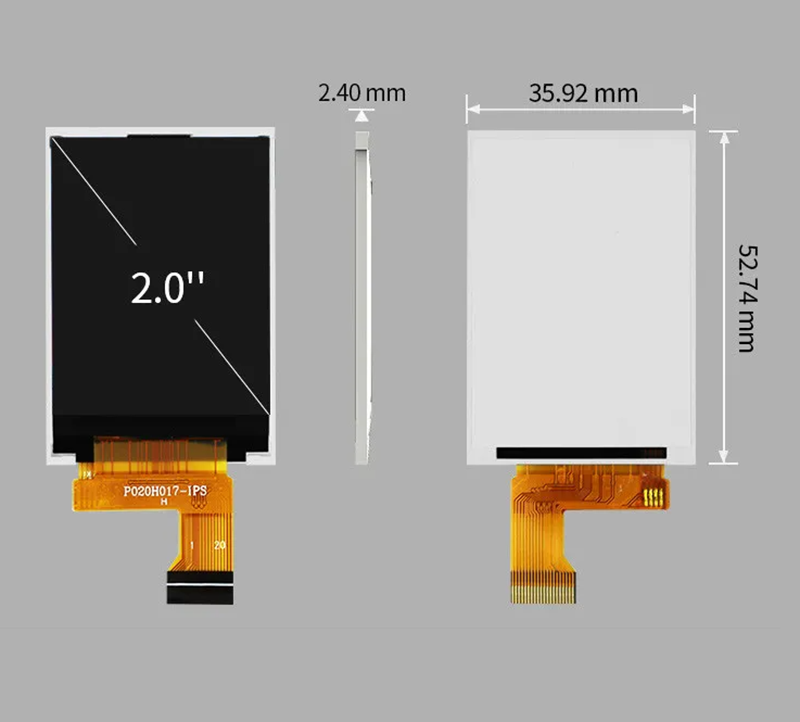

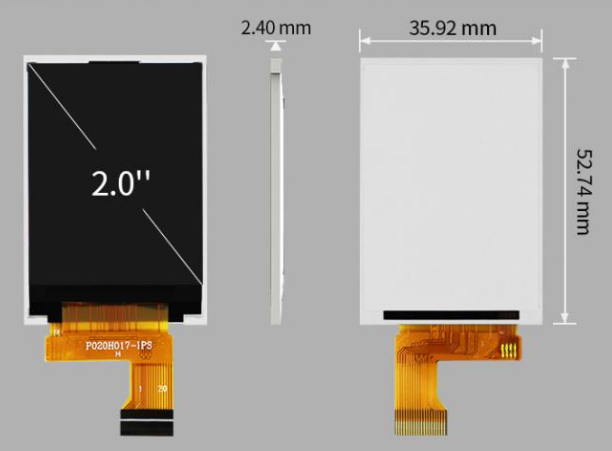

| Outline Dimension | 35.92x52.74x2.40mm |
| Pixel arrangement | RGB Vertical Stripe |
| Pins | 20 Pins |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 800:1 |
| Interface | MCU 8BIT |
| Back-light | LED Side-light type |
| Drive IC | ST7789V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Features:
High resolution: The 2.0 inch TFT LCD typically has a resolution of 320x240 pixels, which makes it capable of displaying high-quality images and text.
Color depth: It can display up to 262,144 colors, which allows for accurate color representation of images and videos.
Low power consumption: The TFT LCD technology used in the 2.0 inch screen typically has low power consumption, which is important for devices that run on battery power.
Wide viewing angle: The 2.0 inch TFT LCD typically has a wide viewing angle, which means that the screen can be viewed clearly from different angles without distortion or color shifting.
Compact size: The 2.0 inch TFT LCD is a small display screen, making it well-suited for use in handheld devices like digital cameras, portable media players, and gaming devices.
Backlight: The 2.0 inch TFT LCD is often designed with a backlight to improve visibility in low-light conditions, making it suitable for use in various lighting environments.
Touchscreen:Some 2.0 inch TFT LCD screens are designed with touchscreen capabilities, allowing for user input and interaction with the device.
