Product Details
Size: | 2.8 | Resolution: | 240*320 |
Viewing Direction(eye): | 12 0'CLOCK | Brightness (cd/m²): | 270 Nit |
Interface: | MCU 16bit | Driver Ic: | ILI9341V |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm | Delivery Time | 1-7 working days |
Payment Terms | T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram | Supply Ability | 25,000 PCS per day |

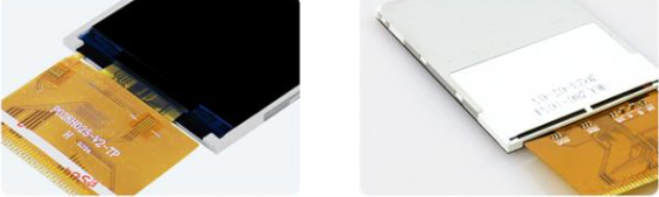

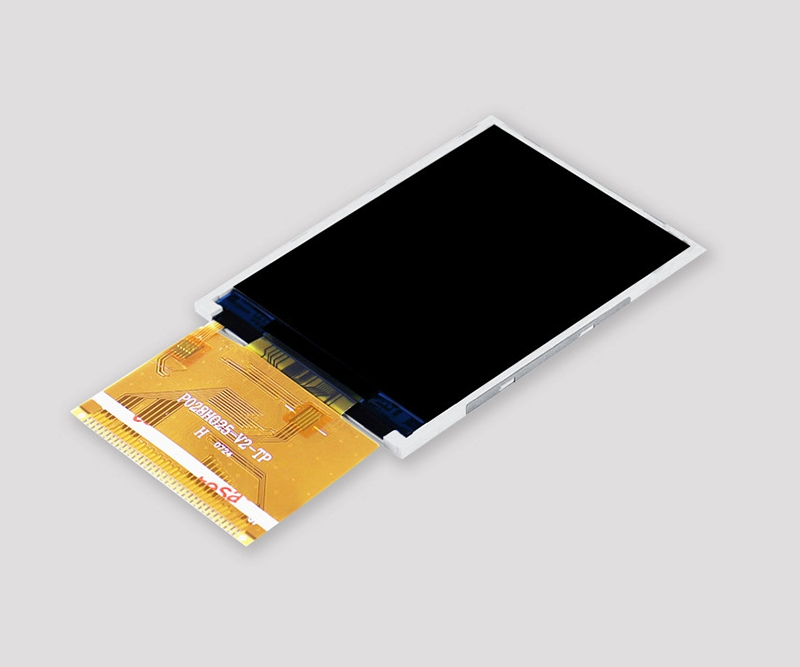

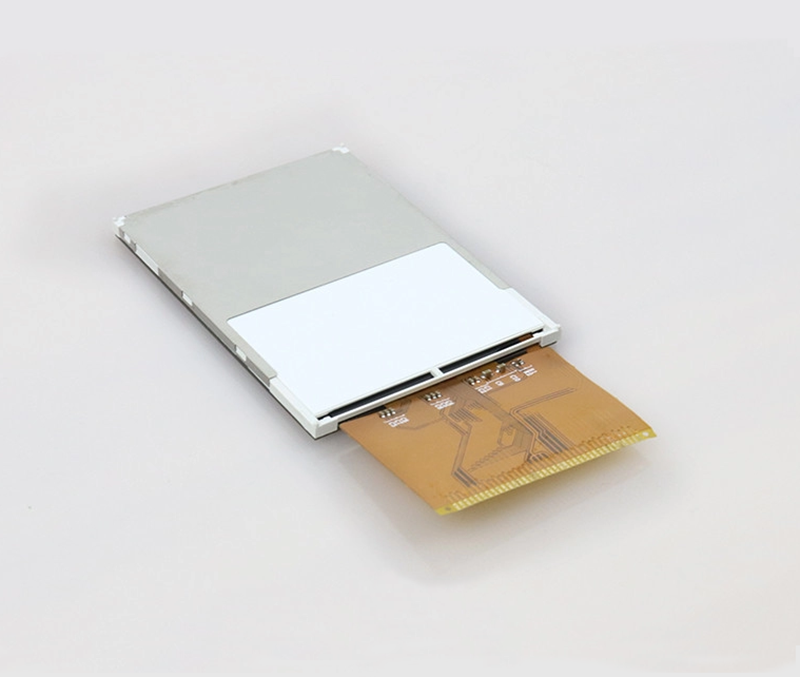

What can we expect from this one? Before this question it is better to know some information about this LCD Touch Panel. Screen size is 2.8 inch. A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 240 * 320, clear enough for most scenes to be used. 300 nits allow this lcd to work well indoors.

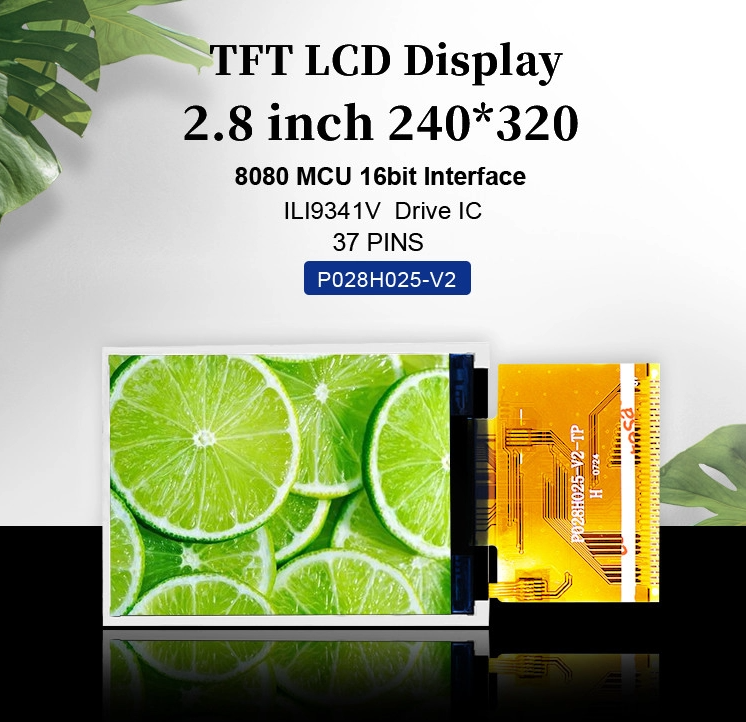

| P/N | P028H025-V2 |
| Size(inch) | 2.8 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 300 |
| Interface | 8080 MCU 16bit |
| Driver Ic | ILI9341V |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 37 |
Supported by 8080 MCU 16bit, this type of TFT LCD can be used in many applications. ILI9341V is the driver IC of the tft lcd.The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.
