Product Details
P/N: | EO-DIS-TFT24V03 | Size (inch): | 2.4 |
Resolution: | 240*320 | Brightness (cd/m²): | 300 |
Interface: | 8080 MCU 8bits | Driver Ic: | ST7789V |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | 20 cm * 30 cm * 40 cm | Delivery Time | 5-8 working days |
Payment Terms | T/T, L/C, Credit card, PayPal | Supply Ability | 500,000 piece per week |

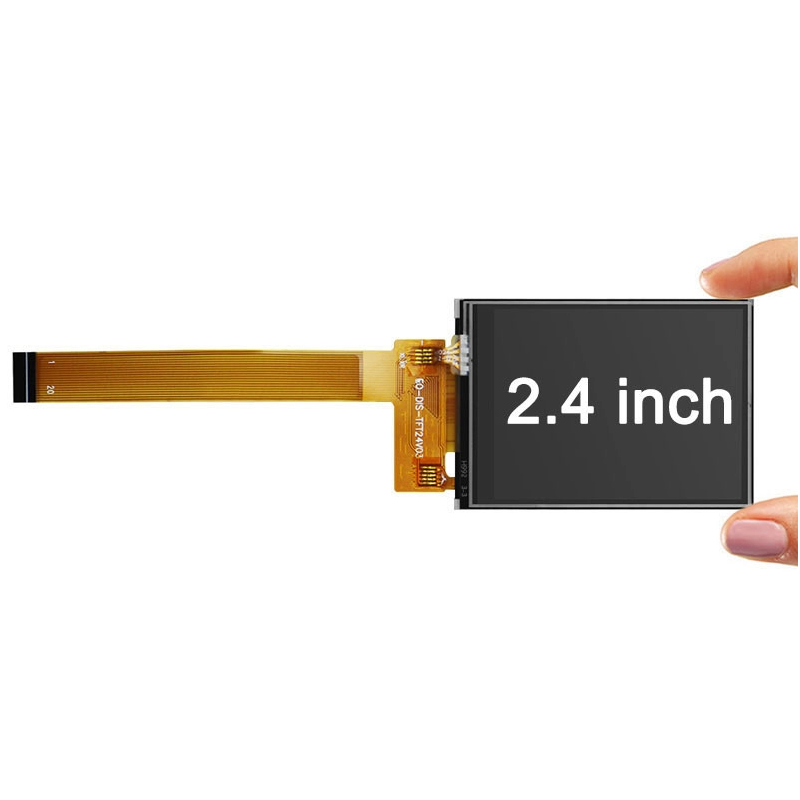

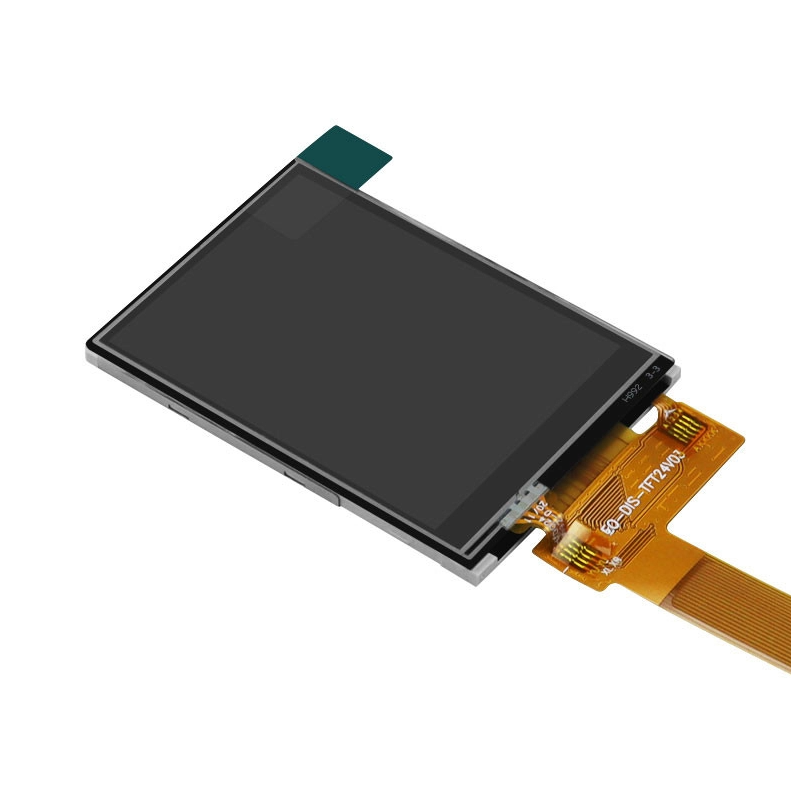

New published TFT LCD Display for commercial and industrial use. Screen size is 2.4 inch. A very common and hot selling size for small size TFT display. Improve your product design by adding our 240 * 320 resolution product. 300 nits allow this lcd to work well indoors.
| P/N | EO-DIS-TFT24V03 |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Active Area(mm) | 36.72*48.96 |
| Pixel pitch(um) | 51*153 |

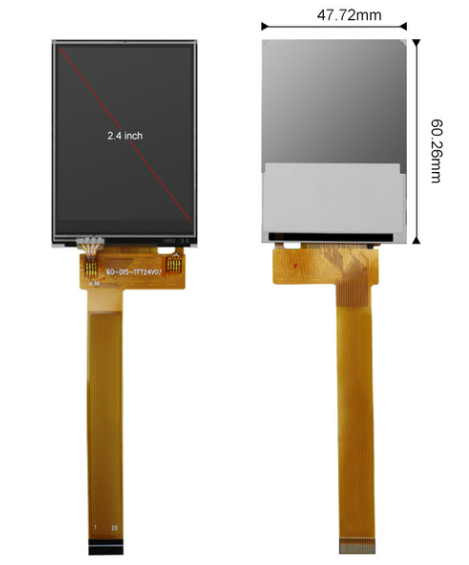

| Outline Dimension(mm) | 42.72*60.26*3.40 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 12 0'CLOCK |
| Display colors | 262K |
| Brightness (cd/m²) | 300 |
| Contrast Ratio | 600:1 |
| Interface | 8080 MCU 8bits |
| Back-light | LED Side-light type |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 20 |
The Interface of this LCD is 8080 MCU 8bits. We can also customize other types of interfaces and FPCs for you. ST7789V is the driver IC of the tft lcd. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).
Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.
Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.
Q: Can I trust the quality? We want good quality first.
A: Our company has a professional Quality Control Department, and all products are 100% inspected prior to ship. We welcome all the customers from the wolrd visiting our factory for checking any time.
