Product Details
Screen Size: | 1.54 Inch | Resolution: | 240x240 |
Active Area: | 27.72(H)x27.72(V)mm | Brightness (cd/m²): | 350 Nit |
Interface: | RGB666 | Viewing Direction(eye): | Full View Angle |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | 20 cm * 30 cm * 40 cm | Delivery Time | 1-7 working days |
Payment Terms | T/T, L/C, Credit card, PayPal | Supply Ability | 500,000 piece per week |
Product Description

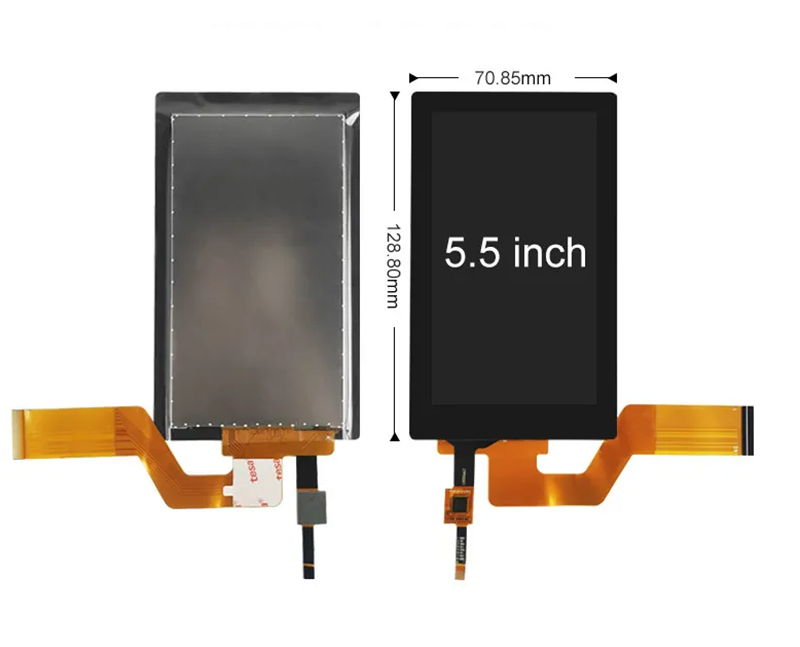

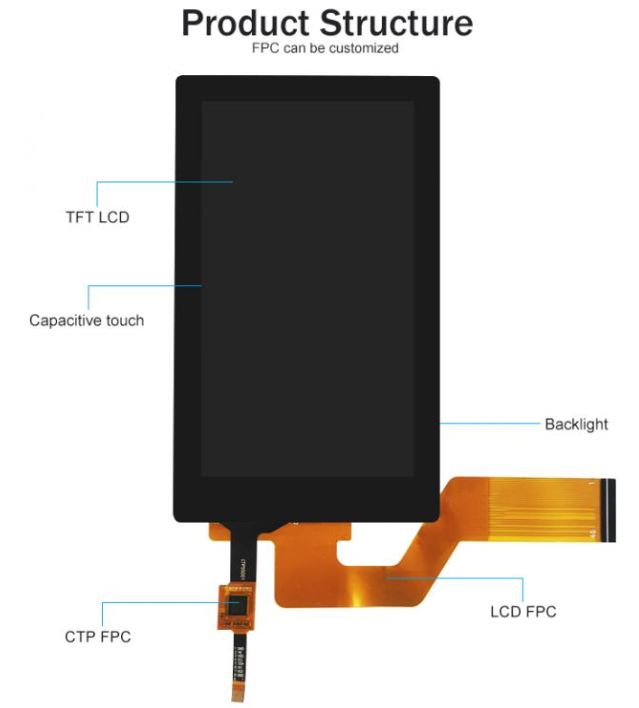

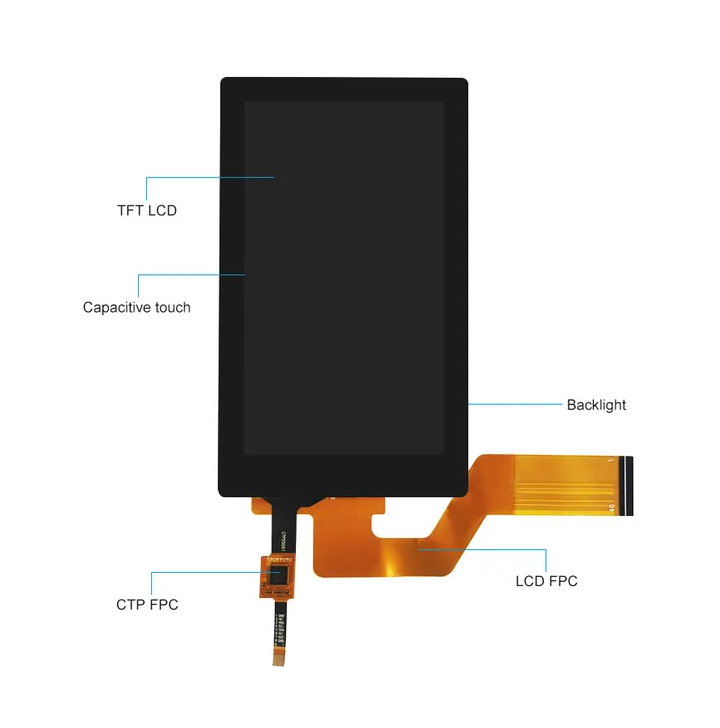

A 5.5-inch TFT LCD with capacitive touch is a high-quality display screen commonly used in smartphones and other portable electronic devices. It offers a clear and sharp visual display with vibrant colors and is designed with touch screen capabilities, enabling seamless user interaction.
Parameter:
| TFT LCD | Specification | Unit |
| Model No. | P055H018-IPS-CTP | -- |
| Screen Size | 5.5 inch | diagonal |
| Number of Pixel | 720RGB(H)x1280(V) | Pixels |
| Pin | 40 PIN | -- |
| Display area | 68.04(H)x120.96(V) | mm |
| Pixel pitch | 0.0945(H)x0.0945(V) | mm |
| Outline Dimension | 70.85x128.80x3.50 | mm |
| Pixel arrangement | RGB Vertical Stripe | -- |
| Display mode | Normally Black | -- |
| Viewing Direction(eye) | ALL | -- |
| Gray inversion direction | -- | |
| Display Color | 262K | -- |
| Luminance(cd/m2) | 300 | nit |
| Contrast Ratio | 800:1 | -- |
| Surface treatment | -- | -- |
| Interface | MIPI | |
| Back-light | LED Side-light type | -- |
| Drive IC | ST7703 | |
| Operation Temperature | -20~70 | ℃ |
| Storage Temperature | -30~80 | ℃ |
| Weight | -- | g |
