Product Details
Resolution: | 240*320 | Size (inch): | 3.2 |
Active Area (W * H ): | 30.60(H)x40.80(V)mm | Brightness (cd/m²): | 350 |
Interface: | 8080 MCU 16bit | Driver Ic: | ILI9341V |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm | Delivery Time | 1-7 working days |
Payment Terms | T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram | Supply Ability | 40,000 PCS per day |
Product Description
What can we expect from this one? Before this question it is better to know some information about this Industrial Touch Screen. Screen size is 3.2 inch. A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 240 * 320, clear enough for most scenes to be used. 350 nits allow this lcd to work well indoors.

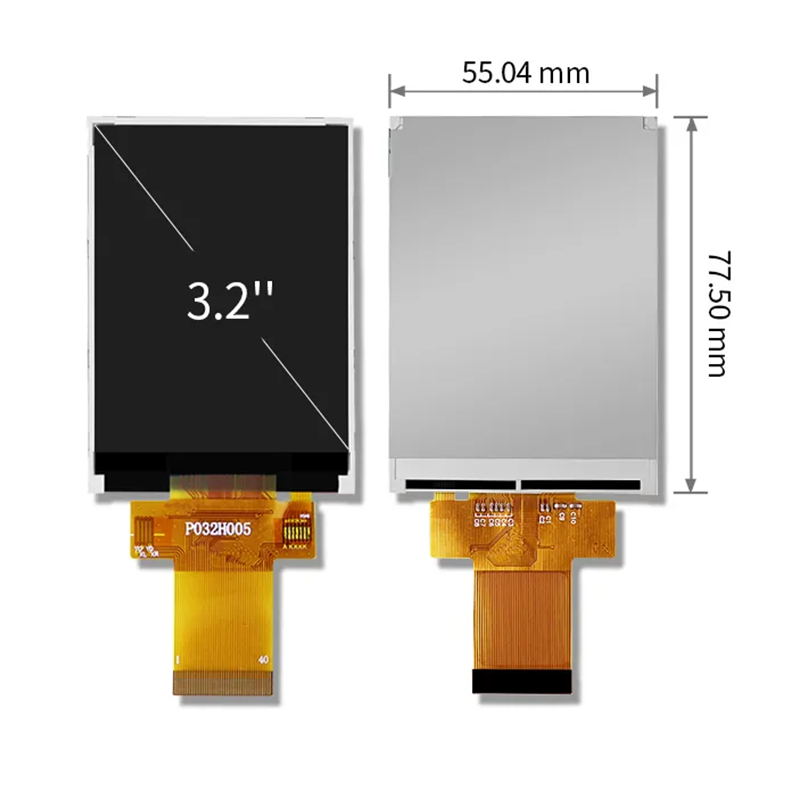

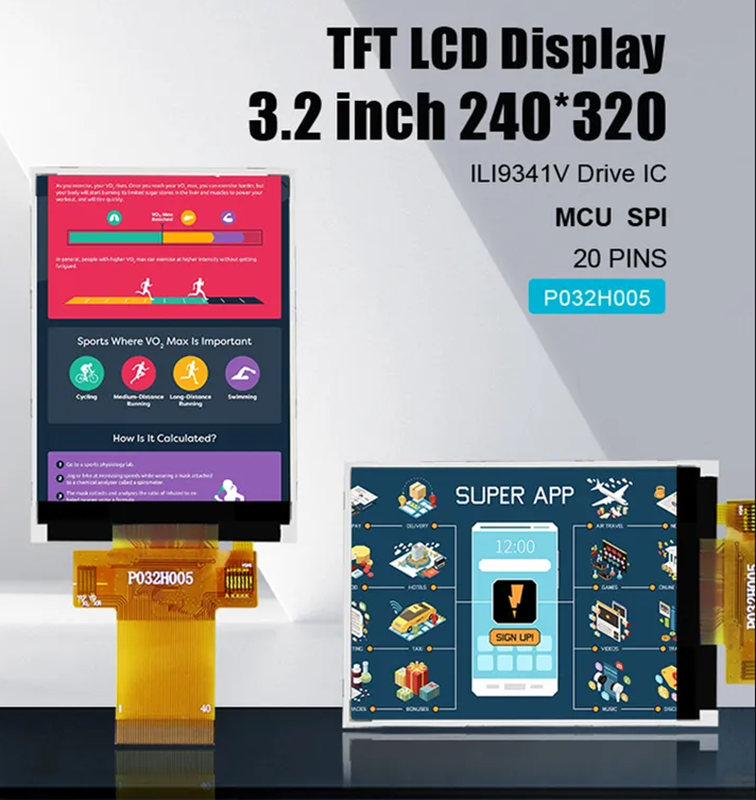

| P/N | P032H005 |
| Size(inch) | 3.2 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 350 |
| Interface | 8080 MCU 16bit |
| Driver Ic | ILI9341V |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |
Supported by 8080 MCU 16bit, this type of TFT LCD can be used in many applications. ILI9341V is the driver IC of the tft lcd. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.

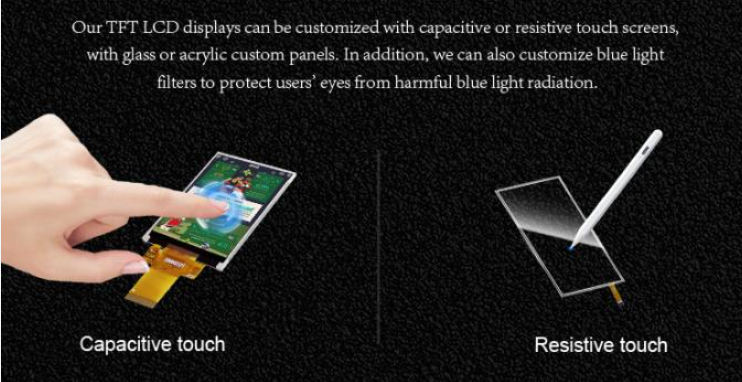

Q: Is there a Touch Panel (Touch Screen) on the display?
A: We can offer you the RTP (Resistive Touch Panel) and CTP (Capacitive Touch Panel) if you need.
Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.
Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.
Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
