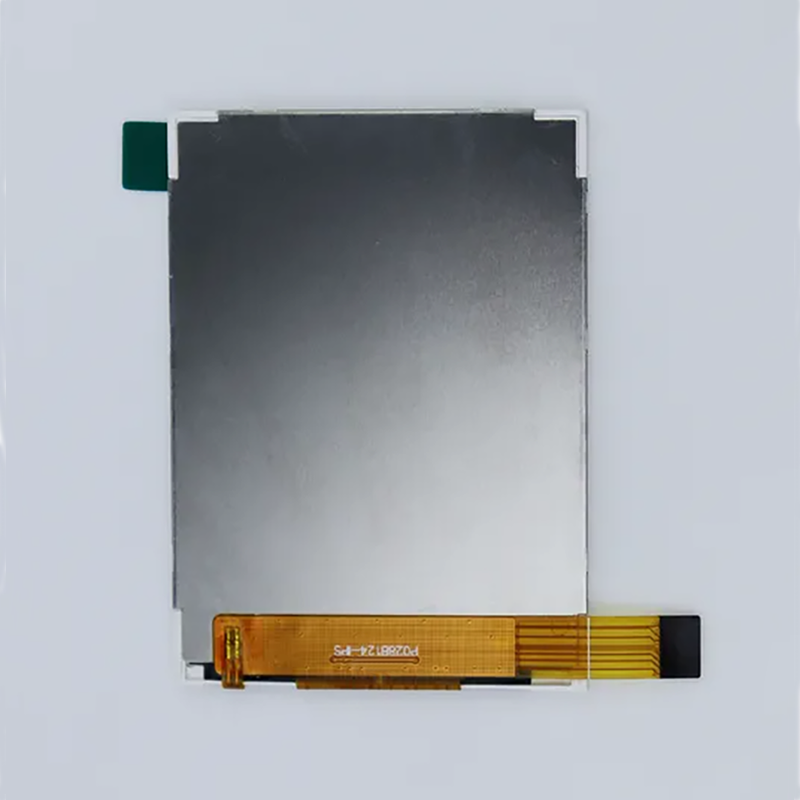

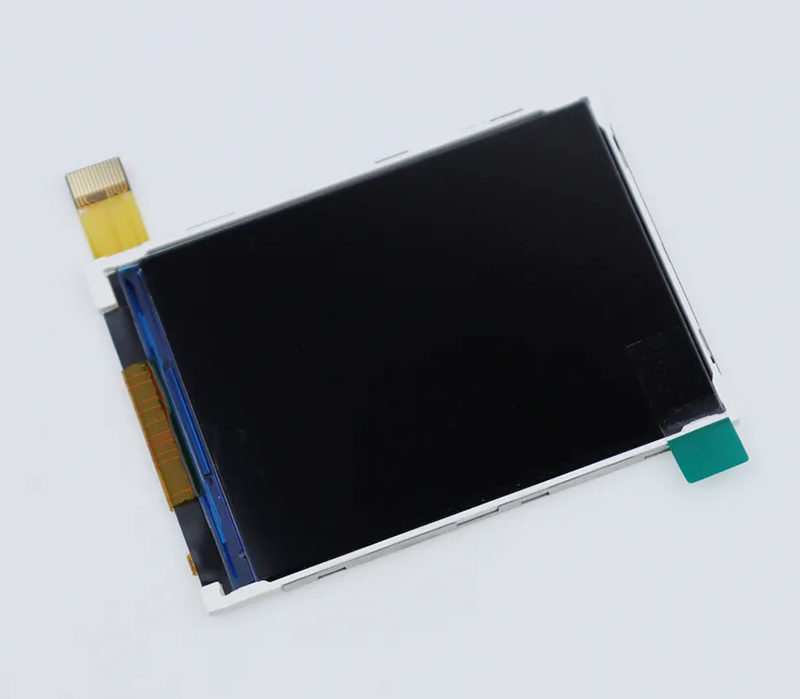

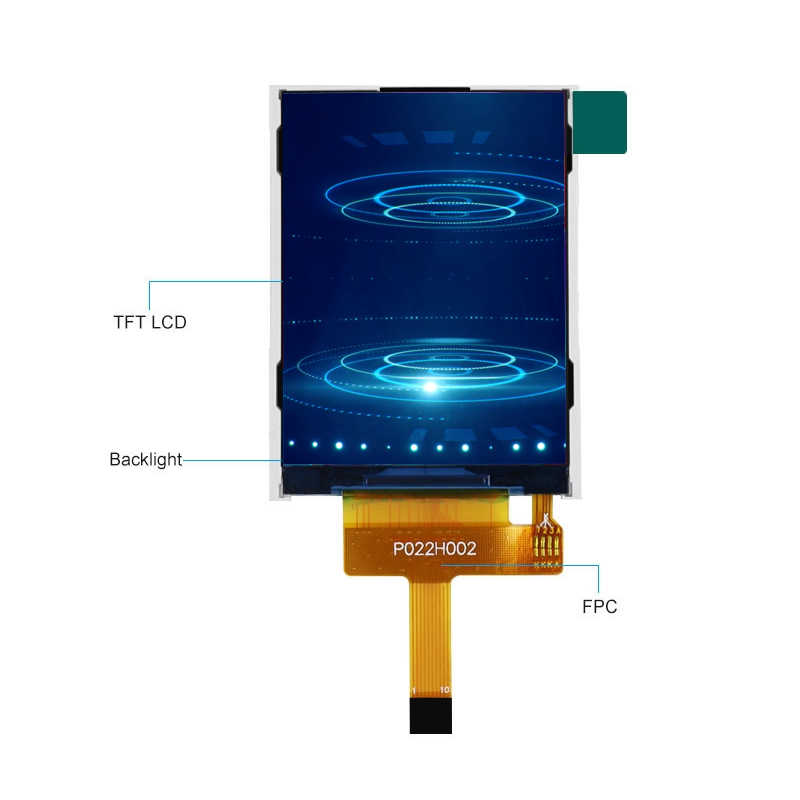

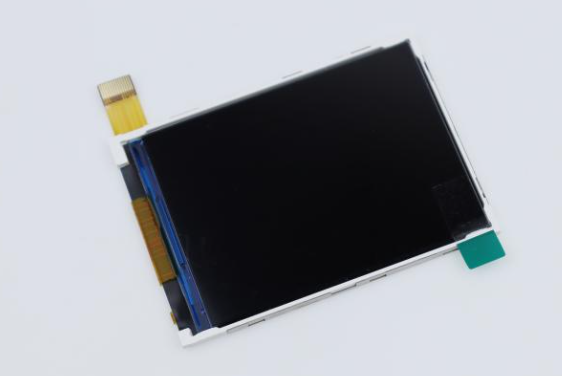

2.8'' TFT LCD Module Resistive Capacitive Touch IPS Small TFT Display

BrandYiTai
Product originShenzhen, China
Delivery time 5-8 working days
Supply capacity 500,000 piece per week

This 2.8'' TFT LCD display features IPS technology and an SPI interface, delivering clear and accurate visuals suitable for a range of applications that require high-quality displays in a compact form factor.

Get Best Price

Product Details

Screen Size:	2.8 Inch	Number Of Pixel:	240RGB(H)x320(V)
Display Area:	43.20(H)x57.60(V)	Brightness (cd/m²):	300
Interface:	SPI / MCU / RGB	Driver Ic:	ST7789V

Payment & Shipping Terms

Minimum Order Quantity	1 piece	Price	Please contact us for latest price
Packaging Details	Sample packing box 201813cm	Delivery Time	5-8 working days
Payment Terms	T/T, L/C, Credit card, PayPal	Supply Ability	500,000 piece per week

Product Description

Item	Specification	Unit
Screen Size	2.8 inch	Diagonal
Number of Pixel	240RGB(H)x320(V)	Pixels
Display area	43.20(H)x57.60(V)	mm
Pixel pitch	0.180(H)x0.180(V)	mm

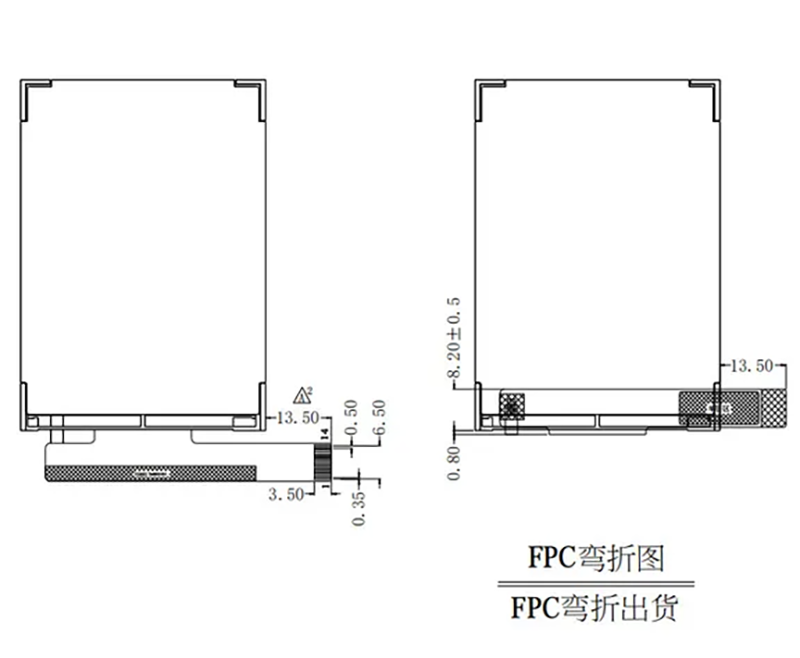

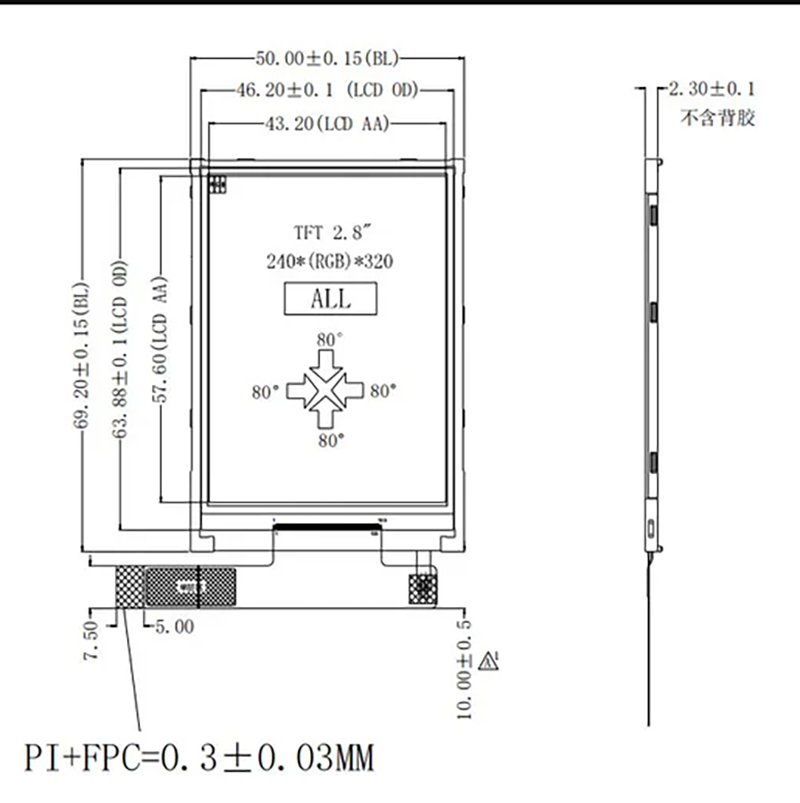

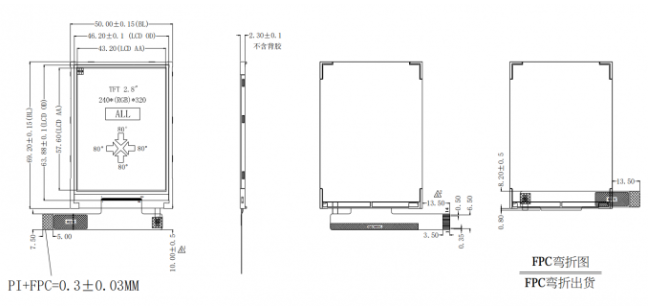

Outline Dimension	50.00x69.20x2.30	mm
Pixel arrangement	RGB Vertical Stripe	--
Display mode	Normally Black	--
Viewing Direction(eye)	ALL	--
Gray inversion direction	--
Display Color	262K	--
Luminance(cd/m²)	300	nit
Contrast Ratio	1200:1	--
Surface treatment	--	--
Interface	4wire SPI
Back-light	LED Side-light type	--
Drive IC	ST7789V
Operation Temperature	-20~70	℃
Storage Temperature	-30~80	℃
Weight	--	g
