Product Details
Resolution: | 240*320 | Size (inch): | 2 Inch |
Active Area (W * H ): | 30.60(H)x40.80(V)mm | Brightness (cd/m²): | 260 Nit |
Interface: | 4W SPI | Driver Ic: | ST7789V |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm | Delivery Time | 1-7 working days |
Payment Terms | T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram | Supply Ability | 40,000 PCS per day |
Product Description
Product description:
The 2 inch TFT LCD is a versatile display technology that offers high resolution, accurate color representation, low power consumption, and a compact size. It is a popular choice for use in handheld devices like digital cameras, portable media players, and gaming devices.
Parameter:
| Model | P020H025-IPS |
| Screen Size | 2.0 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 30.60(H)x40.80(V)mm |
| Pixel pitch | 0.0425(H)x0.1275(V)mm |

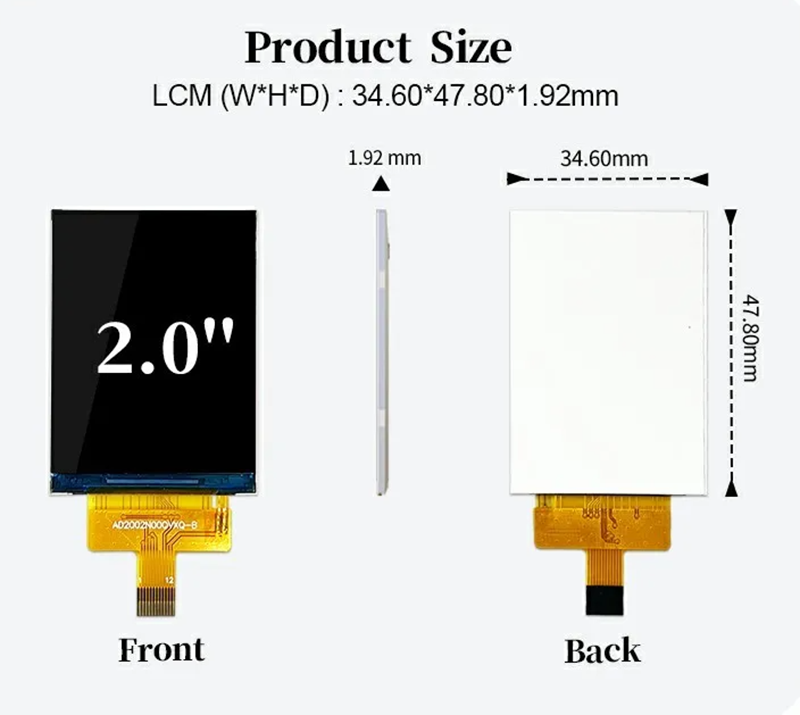

| Outline Dimension | 34.60x47.80x1.92mm |
| Pixel arrangement | RGB Vertical Stripe |
| Pins | 12 Pins |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 260 nit |
| Contrast Ratio | 800:1 |
| Interface | 4W SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
