Product Details
Size: | 1.69 Inch | Resolution: | 240*280 |
Display Area: | 27.97(H)x32.63(V)mm | Brightness (cd/m²): | 500 Nit |
Interface: | 4 Line SPI | Driver Ic: | ST7789T3 |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm | Delivery Time | 1-7 working days |
Payment Terms | T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram | Supply Ability | 40,000 PCS per day |

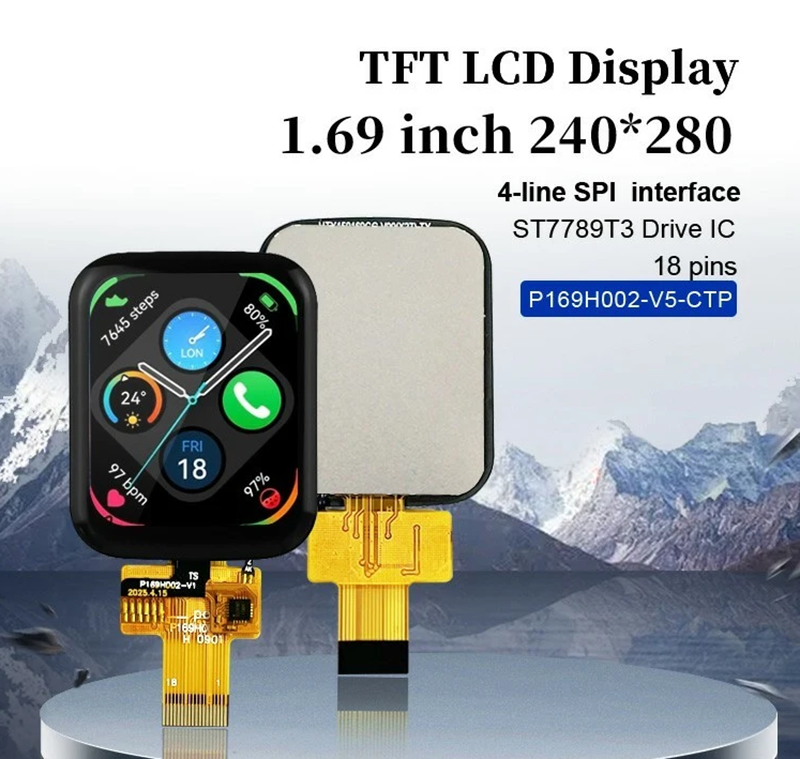

1.69'' TFT LCD is a versatile display technology that offers high resolution, accurate color representation, low power consumption, and a compact size. It is a popular choice for use in wearable devices, industrial equipment, medical devices, and other applications where a small, high-quality display is required.

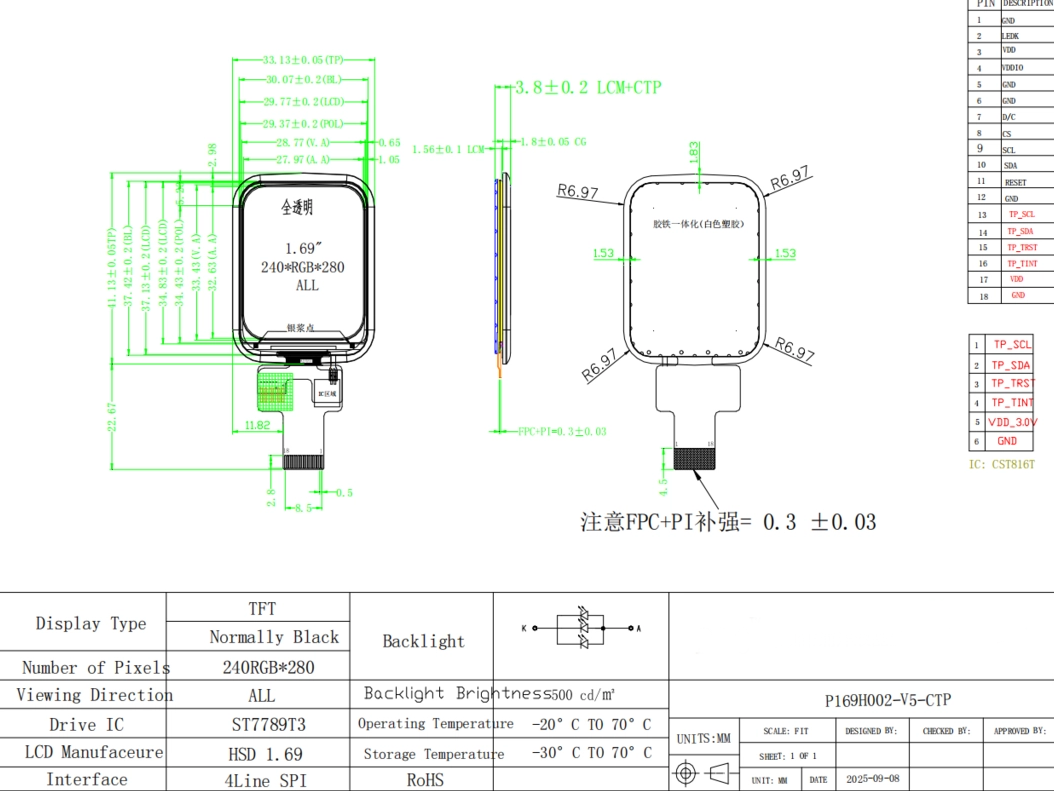

Parameter:
| Model | P169H002-V5-CTP |
| Screen Size | 1.69 inch |
| Number of Pixel | 240RGB(H)x280(V) |
| Display area | 27.97(H)x32.63(V)mm |
| Pixel pitch | 0.11655(H)x0.11655(V)mm |
| Pins | 18 Pins |
| Outline Dimension | 33.13x41.13x3.8 mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 500 nit |
| Contrast Ratio | 1000:1 |
| Interface | 4-line SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789T3 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Product Characteristics:
High resolution: The 1.69'' TFT LCD typically has a resolution of 240x280 pixels, which makes it capable of displaying high-quality images and text.
Color depth: It can display up to 65,000 colors, which allows for accurate color representation of images and videos.
Low power consumption: The TFT LCD technology used in the 1.69'' screen typically has low power consumption, which is important for devices that run on battery power, such as smartwatches and other wearables.
Wide viewing angle: The 1.69'' TFT LCD typically has a wide viewing angle, which means that the screen can be viewed clearly from different angles without distortion or color shifting.
Compact size: The 1.69'' TFT LCD is a small display screen, making it well-suited for use in wearable devices like smartwatches and fitness trackers.
Backlight: The 1.69'' TFT LCD is often designed with a backlight to improve visibility in low-light conditions, making it suitable for use in various lighting environments.
