Transform your device into a visual powerhouse with our 1.6-inch vibrant TFT color screen. Whether you're developing industrial control panels, smart home interfaces, wearable tech, or medical instrumentation, this 360×360 resolution display delivers crisp, square-shaped visuals that bring data to life. Featuring a reliable QSPI interface and the ST77916 driver IC, it ensures fast and flicker-free updates, even in dynamic environments. Its versatile 12-pin plug-in design allows for quick assembly, saving valuable production time. With a low-power 2.8V–3.3V supply and a tiny form factor, it seamlessly integrates into portable and embedded systems. Beyond standard specs, we specialize in tailored solutions—work with our team to adjust the housing, pinout, or mounting structure to perfectly match your product's unique design language.
Product Name: 1.5" Color Screen
Resolution: 360 × 360
Driver IC: ST77916
Power Supply: 2.8V–3.3V
Interface Type: QSPI
Product Size: 1.5 inch
Display Type: Color
Connection Method: Plug-in 16P

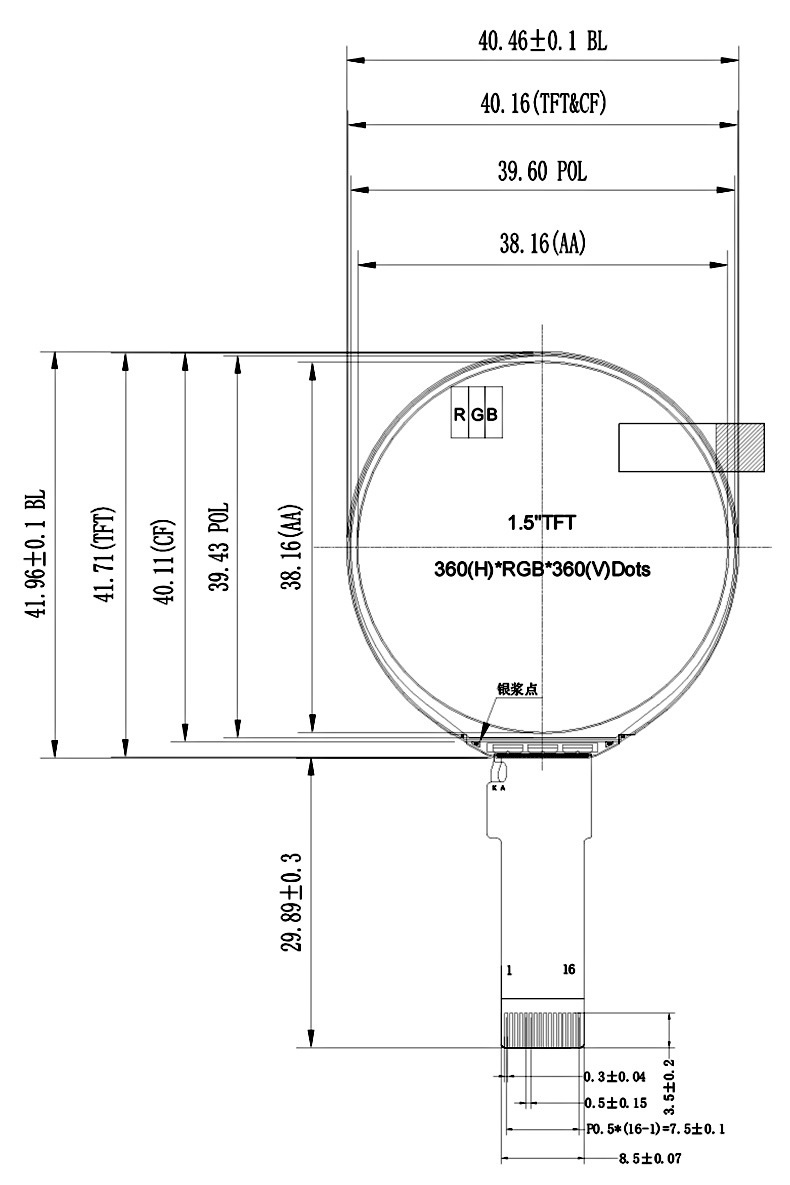

Display Area: 38.16 × 38.16 mm

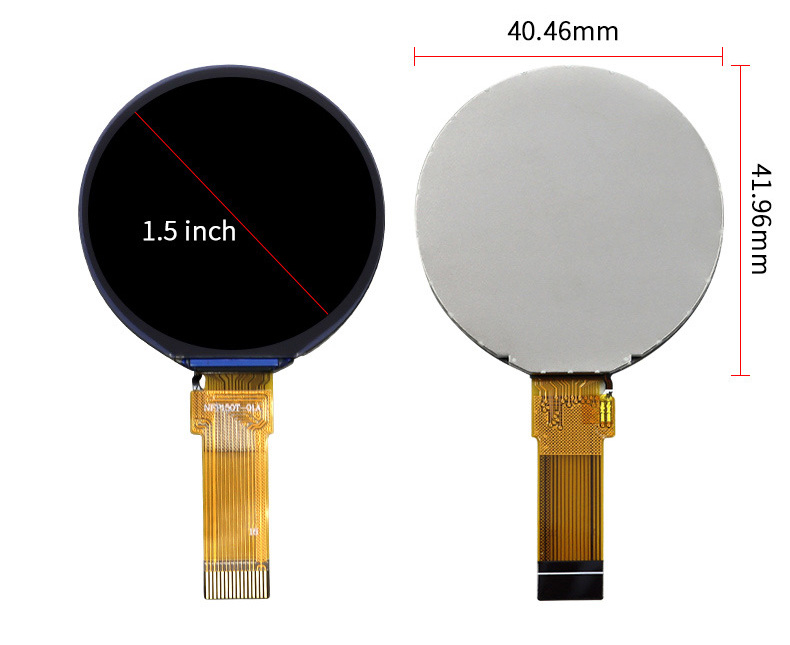

Screen Dimensions: 40.46 × 41.96 × 2.16 mm
| 0 | PIN NAME | PIN | PIN NAME |
| 1 | K | 9 | I01 |
| 2 | A | 10 | I00 |
| 3 | GND | 11 | TE |
| 4 | CS | 12 | VCC |
| 5 | SCL | 13 | IOVCC |
| 6 | RESET | 14 | GND |
| 7 | I03 | 15 | GND |
| 8 | I02 | 16 | GND |
Core Strength
Rich Product Line: Successfully developed over a thousand TN/HTN/STN/VA display products and hundreds of TFT color LCD screens, providing customized LED backlight services covering a variety of application scenarios.
Core Product Features
1. High PPI, Clear and Sharp
Up to 800*480, pixel density over 250 PPI, high pixel density, displaying fine details without graininess.
2. High Brightness
300-1000 nits, clearly visible under strong light, meeting visibility requirements in outdoor or high-light environments.
3. Wide Viewing Angle
Using IPS/FFS technology, viewing angle up to 160°~178°, no color shift when viewed from the side.
4. Wide Temperature Operation
Supports industrial temperature range of -30°C~85°C, suitable for complex environments.
5. High Integration, Rich Interfaces
Supports SPI, MCU, RGB, MIPI and other interfaces, compatible with mainstream host chips, easy to drive.
6. Slim and Compact, Space-Saving
Compact module structure, thickness can be less than 2.0mm, easy to integrate into portable and small devices.
7. Long Lifespan
LED backlight life over 50,000 hours.
8. Flexible Customization
Supports customization of FPC length, pin definition, and interface position, meeting various structural layout requirements.
Ether Photoelectric is a high-tech enterprise integrating R&D, design, production, sales, and service, with two manufacturing bases in Shenzhen and Jiangxi. We have developed over 100 TFT color screens and colorful module products, as well as more than 1,000 TN/HTN/STN/VA display products. Equipped with advanced facilities, extensive production experience, and a professional R&D team, we offer customized structural designs to meet your needs, ensuring high-quality products and complete after-sales support.
Transform your device into a visual powerhouse with our 1.6-inch vibrant TFT color screen. Whether you're developing industrial control panels, smart home interfaces, wearable tech, or medical instrumentation, this 360×360 resolution display delivers crisp, square-shaped visuals that bring data to life. Featuring a reliable QSPI interface and the ST77916 driver IC, it ensures fast and flicker-free updates, even in dynamic environments. Its versatile 12-pin plug-in design allows for quick assembly, saving valuable production time. With a low-power 2.8V–3.3V supply and a tiny form factor, it seamlessly integrates into portable and embedded systems. Beyond standard specs, we specialize in tailored solutions—work with our team to adjust the housing, pinout, or mounting structure to perfectly match your product's unique design language.
Product Name: 1.5" Color Screen
Resolution: 360 × 360
Driver IC: ST77916
Power Supply: 2.8V–3.3V
Interface Type: QSPI
Product Size: 1.5 inch
Display Type: Color
Connection Method: Plug-in 16P
Display Area: 38.16 × 38.16 mm
Screen Dimensions: 40.46 × 41.96 × 2.16 mm
| 0 | PIN NAME | PIN | PIN NAME |
| 1 | K | 9 | I01 |
| 2 | A | 10 | I00 |
| 3 | GND | 11 | TE |
| 4 | CS | 12 | VCC |
| 5 | SCL | 13 | IOVCC |
| 6 | RESET | 14 | GND |
| 7 | I03 | 15 | GND |
| 8 | I02 | 16 | GND |
Our advantage
Customized a 4-inch financial-grade encrypted display for international banks, using a military-grade IPS full lamination touch screen, compliant with PCIDSS payment security standards. For the high security requirements of the financial industry, we specially designed an anti-peeping structure and tamper-proof frame to ensure data security on self-service terminals such as ATMs. The screen integrates an intelligent ambient light adaptation system, which can automatically adjust to the optimal display state according to the lighting conditions of the branch, significantly enhancing the customer operation experience and transaction efficiency.
Custom-developed a 3.5-inch high-precision temperature control display for a well-known HVAC brand, using full-view IPS full lamination technology and supporting multi-touch operation. Based on home environment requirements, we adopted an ultra-thin bezel and rounded corner design, perfectly matching modern interior decoration styles. The screen integrates an ambient light sensing intelligent adjustment function, which can automatically optimize display brightness and contrast according to indoor lighting, greatly enhancing user experience and energy-saving effects.
Customized development of a 4.3-inch industrial-grade instrument display for a well-known power equipment manufacturer, using high-contrast IPS full lamination technology, meeting IP65 protection level requirements. We optimized the dustproof and waterproof structure and wide-temperature design (-30°C~70°C) to meet the special needs of the power industry, ensuring stable operation in complex environments such as substations. The screen integrates an adaptive brightness adjustment system, which can automatically optimize the display effect according to ambient light, significantly improving data reading efficiency and operational safety during outdoor inspections.
