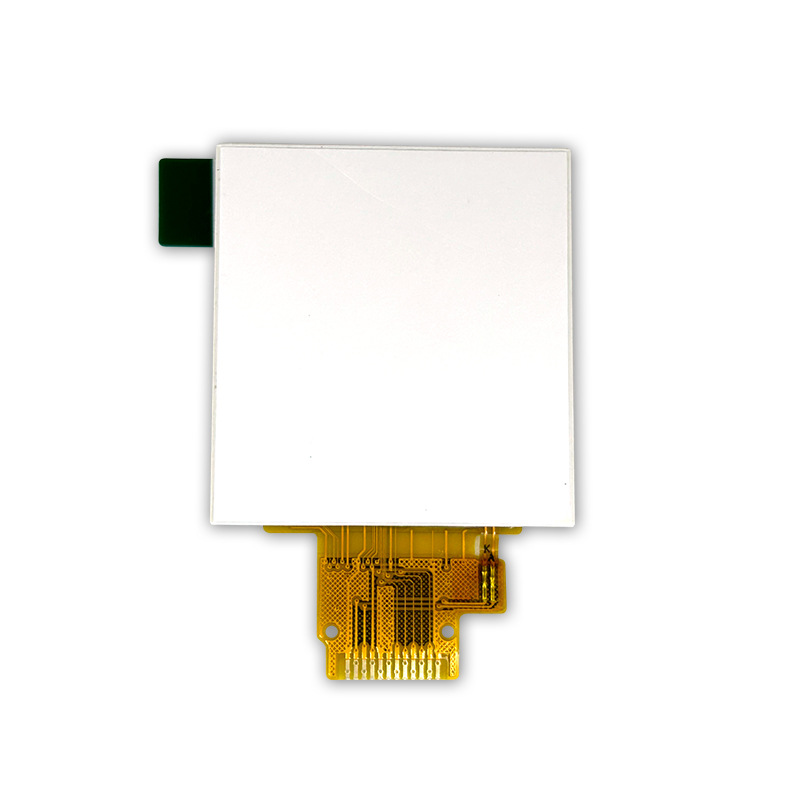

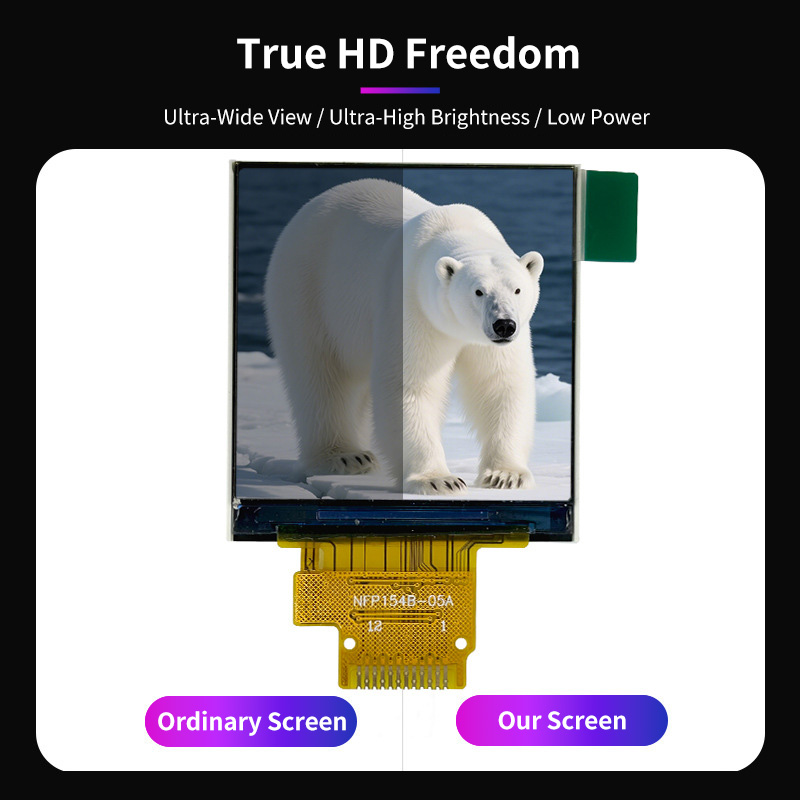

ZHJ154V-12H-A03 is a 240RGBX240 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC and a Backlight unit.
| NO. | Item | Contents | Unit |
| 1 | LCD Size | 1.54 inch(Diagonal) | - |
| 2 | Display Mode | Normally black | - |
| 3 | Resolution | 240(H)RGB×240(V) | - |
| 4 | Dot pitch | 0.115(H)×0.115(V)mm | - |
| 5 | Active area | 27.72(H)×27.72(V)mm | - |

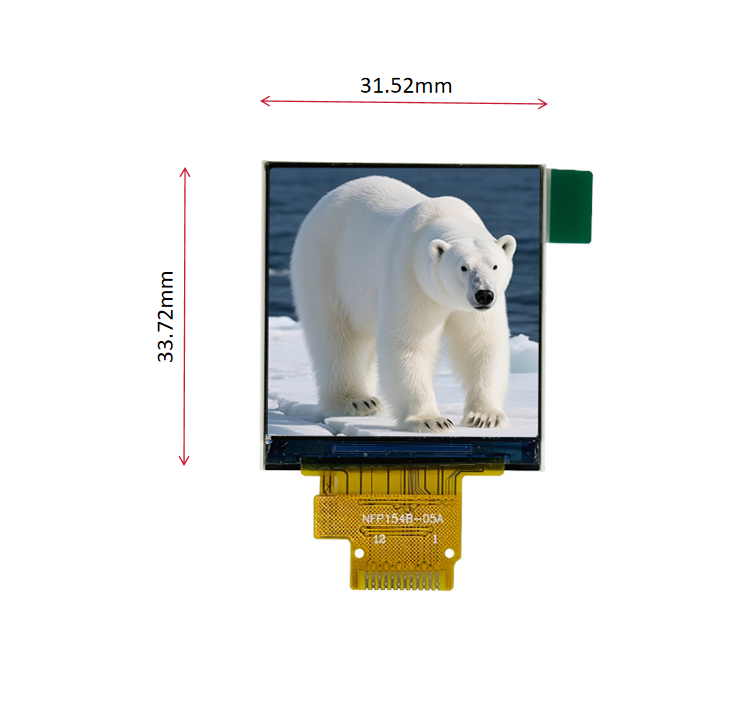

| 9 | Module size | 31.52(H)×33.72(V)x1.87(D)mm | - |
| 7 | Color arrangement | RGB Vtertical stripe | - |
| 8 | Interface | 4 Line SPI | - |
| 9 | Drive IC | ST7789T3 | - |
| 10 | Luminance(cd/m2) | 300(TYP) | - |
| 11 | Viewing Direction | All View | - |
| 12 | Backlight | 3 White LED | - |
| 13 | Operating Temp. | -20℃~+70℃ | ℃ |
| 14 | Storage Temp. | -30℃~+80℃ | ℃ |
| 15 | Weight | TBD | g |

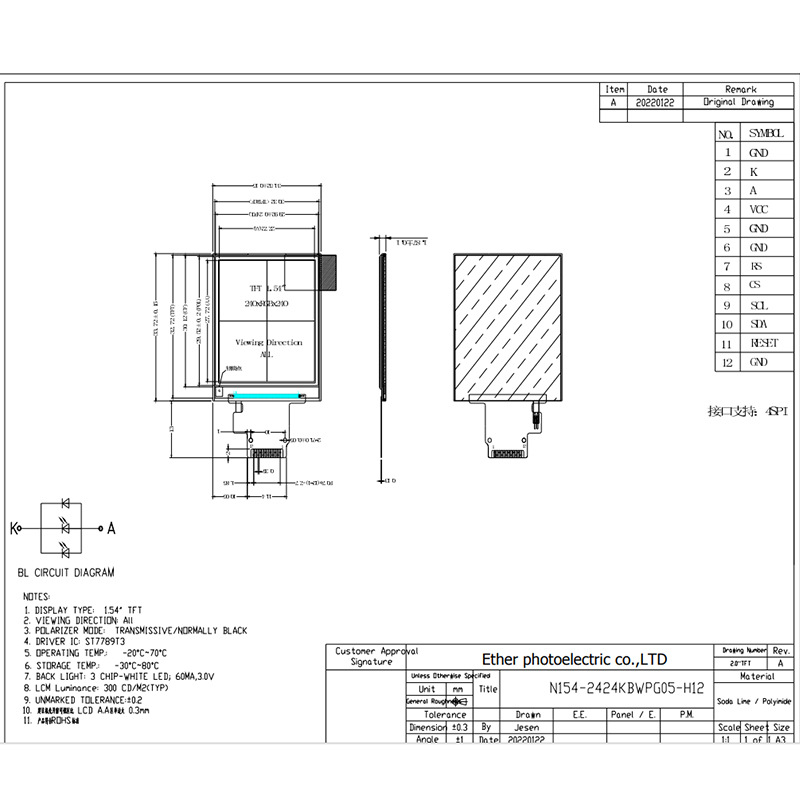

FPC Connector is used for the module electronics interface.
| NO. | Symbol | Description |
| GND | Power Ground | |
| 2 | LEDK | LED Cathode |
| 3 | LEDA | LED Anode |
| 4 | VDD | Power Supply for Analog |
| 5 | GND | Power Ground |
| 6 | GND | Power Ground |
| 7 | D/C | Display data/command selection pin in 4-line serial interface. |
| 8 | CS | Chip selection pin;Low enable,high disable. |
| 9 | SCL | This pin is used to be serial interface clock |
| 10 | SDA | SPI interface input/output pin.the data is latched on the rising edge of the SCL signal. |
| 11 | RESET | This signal will reset the device and itmust be applied to properly initialize the chip.Signal is active low. |
| 12 | GND | Power Ground |

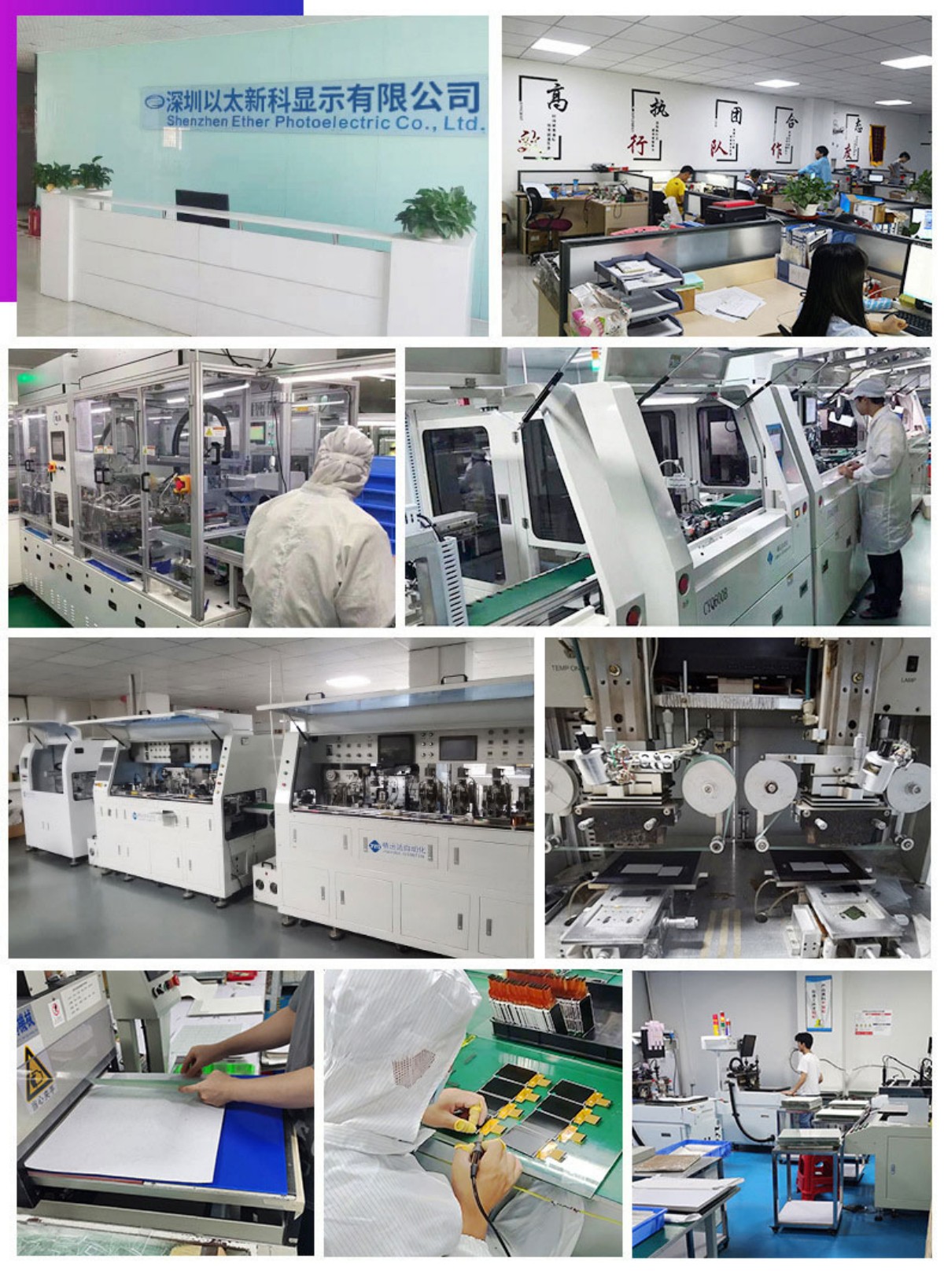

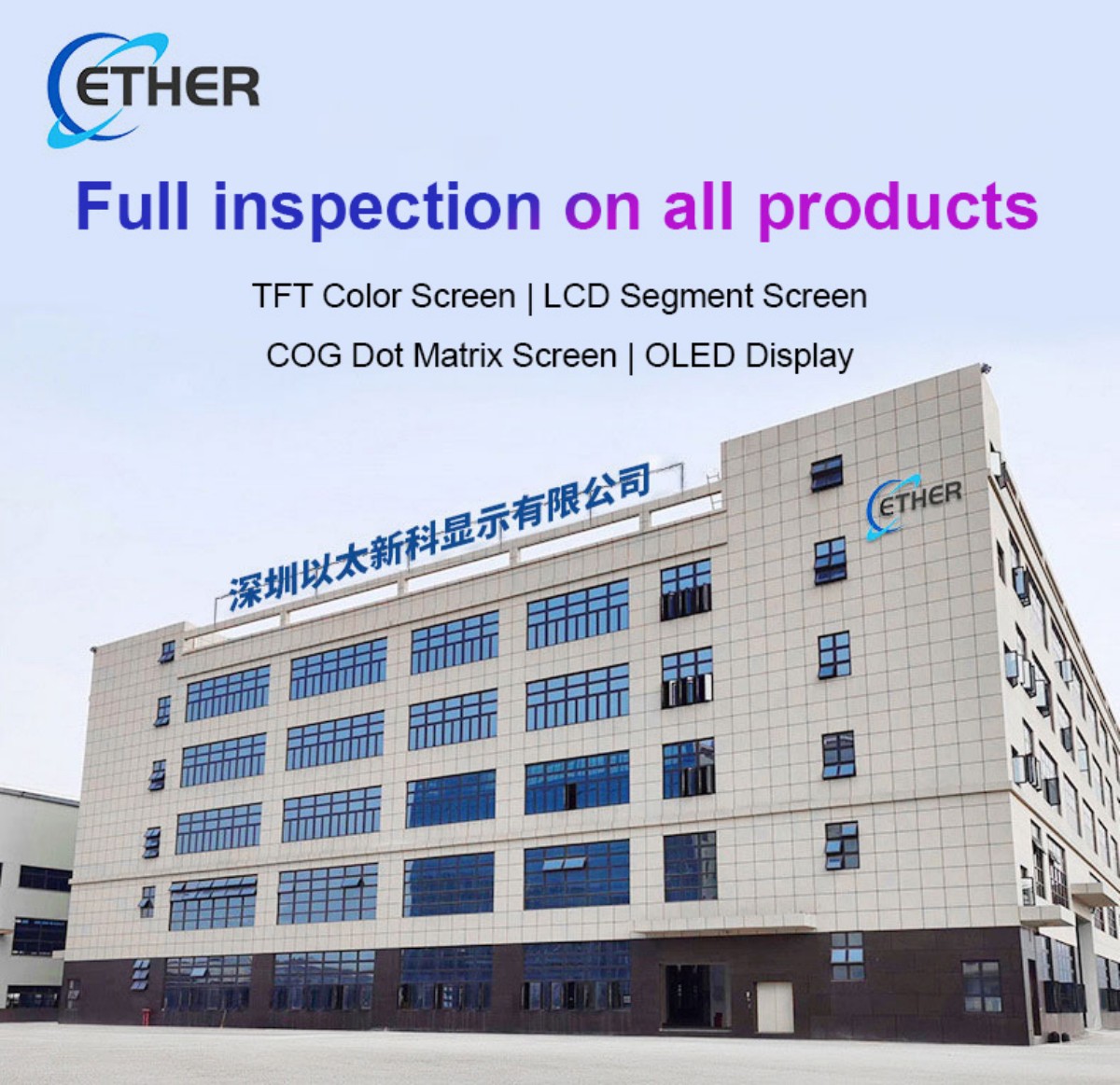

Ether Photoelectric is a high-tech enterprise integrating R&D, design, production, sales, and service, with two manufacturing bases in Shenzhen and Jiangxi. We have developed over 100 TFT color screens and colorful module products, as well as more than 1,000 TN/HTN/STN/VA display products. Equipped with advanced facilities, extensive production experience, and a professional R&D team, we offer customized structural designs to meet your needs, ensuring high-quality products and complete after-sales support.
