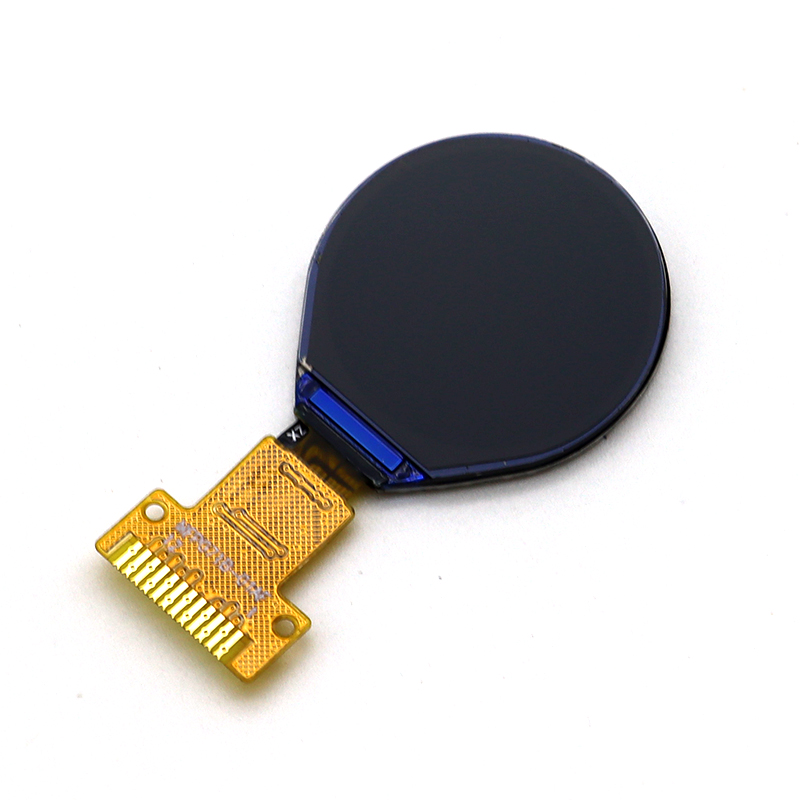

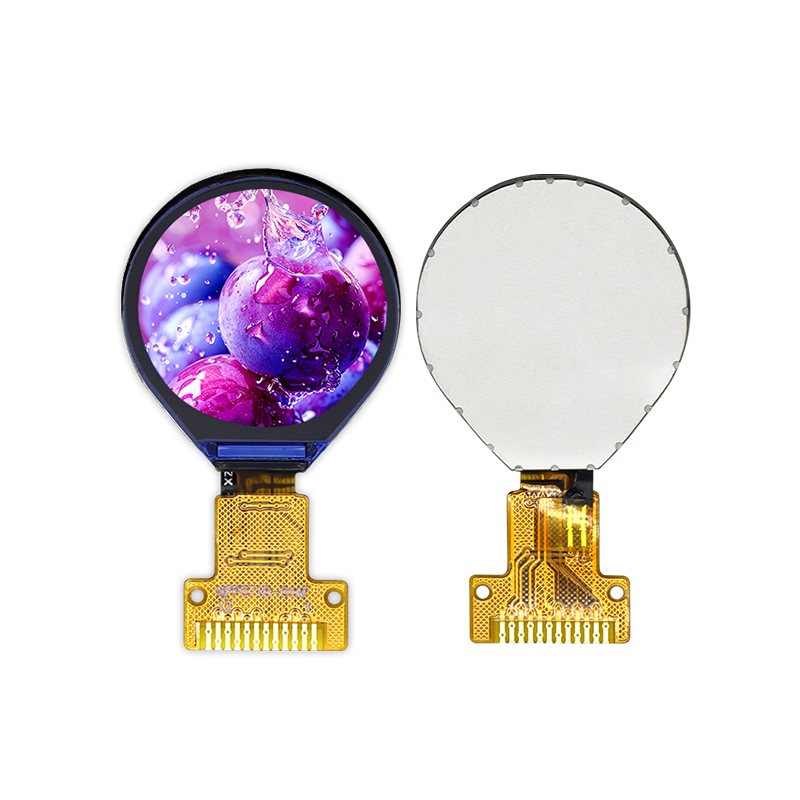

This 0.71-inch round display is an IPS TFT color screen with a diagonal size of 0.71 inch, featuring a normally black display mode and an all-directional viewing angle for excellent visibility from any position.
It boasts a resolution of 160 RGB(H)×160(V) pixels and 262K display colors, paired with an RGB vertical stripe color arrangement that delivers vivid, clear and uniform visual effects. The screen has a dot pitch of 37.5(H)×112.5(V) um, with an active area of 18.0(W)×18.0(H)mm and a compact module size of 20.12(W)×22.3(H)×1.81(T)mm, making it suitable for space-constrained installation scenarios.
Equipped with the GC9D01 driver IC and a 4-Wire SPI interface, the screen enables stable and efficient data transmission. It supports reliable operation within an operating temperature range of -20℃~70℃ and a storage temperature range of -30℃~80℃, ensuring adaptability to various environments. The screen adopts a 12-pin connection design with clear pin definitions for easy integration and does not come with a touch panel, focusing on meeting basic high-quality display needs.
| NO. | Features | Details | Unit |
| 1 | Display Size(Diagonal) | 0.71” | Inch |
| 2 | LCD type | IPS TFT | - |
| 3 | Display Mode | Normally black | - |
| 4 | Resolution | 160 RGB(H)×160(V) | Pixels |
| 5 | Viewing Direction | ALL | - |

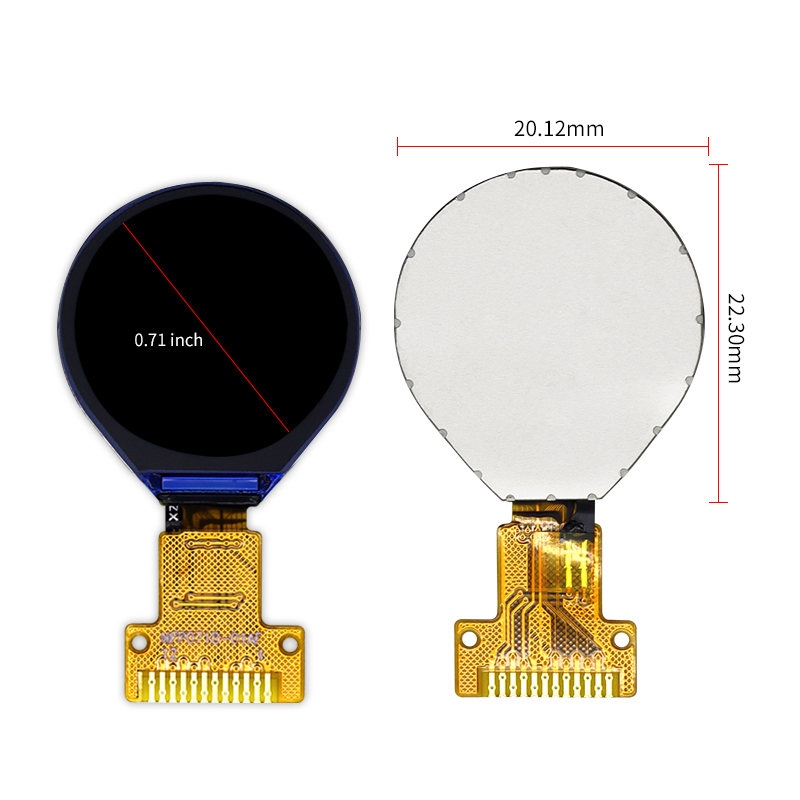

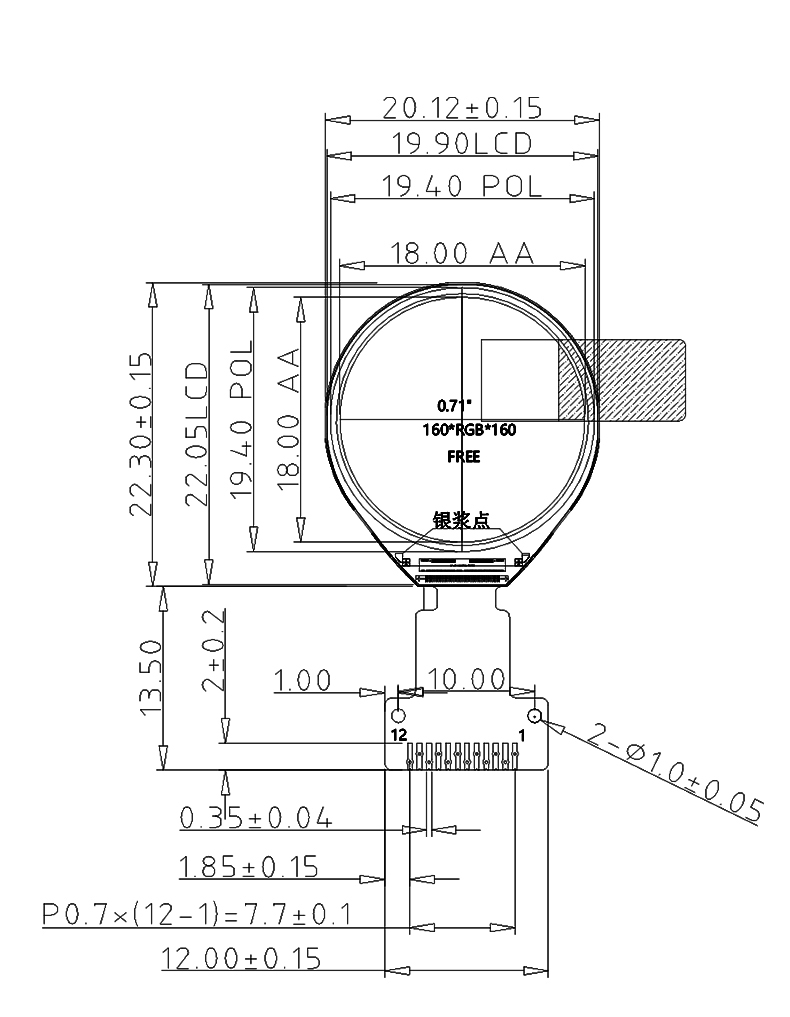

| 6 | Module size | 20.12(W)×22.3(H)×1.81(T) | mm |
| 7 | Active Area | 18.0(W)x 18.0(H) | mm |
| 8 | Dot pitch | 37.5(H)×112.5(V) | um |
| 9 | Color arrangement | RGB Vtertical stripe | - |
| 10 | Interface | 4 Wire SPI | - |
| 11 | Display Colors | 262K | - |
| 12 | Driver IC | GC9D01 | - |
| 13 | With or Without Touch Panel | Without | - |
| 14 | Operating Temperature | -20℃~70℃ | ℃ |
| 15 | Storage Temperature | -30℃~80℃ | ℃ |
| 16 | Weight | - | g |

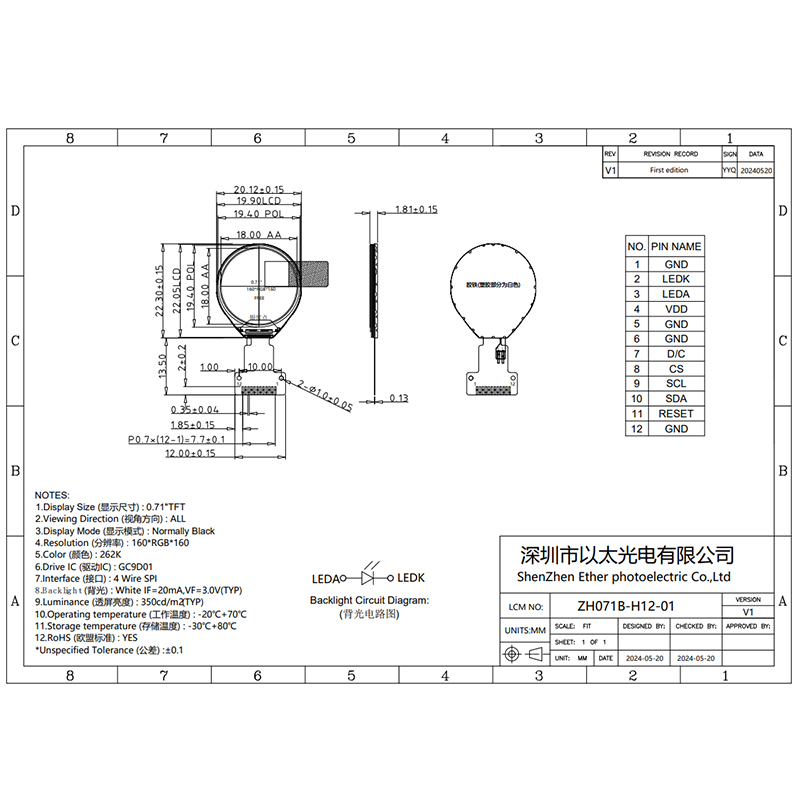

| PIN | SYMBOL | PIN | SYMBOL |
| 1 | GND | 7 | D/C |
| 2 | LEDK | 8 | CS |
| 3 | LEDA | 9 | SCL |
| 4 | VDD | 10 | SDA |
| 5 | GND | 11 | RESET |
| 6 | GND | 12 | GND |
