This Industrial Touch Screen is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
If your product requires a size 2.4 inch then our lcd is just what you need. Improve your product design by adding our 240 * 320 resolution product.
QC department measured the luminance is 300 nits under normal operating.
| P/N | P024C118 |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 300 |
| Interface | 3 Wire 2 Line SPI |
| Driver Ic | ST7789V2 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 18 |
.
This 2.4-inch TFT LCD display module, model P024C118, is centered around the ST7789V2 driver chip and a 3-wire/2-wire SPI serial interface, specifically designed for ultra-compact embedded systems with severely limited pin resources. The module requires only 18 pins to complete all display signal transmissions, the lowest pin usage among similar products, providing an ideal display expansion solution for micro development boards with limited pins such as Arduino Micro, ESP32-C3, STM32G0, and space-constrained IoT terminal devices.
The module has a resolution of 240×320 pixels, delivering high-definition and delicate visuals within a compact 2.4-inch size. Using a 3-wire/2-wire SPI interface architecture, full-function control can be completed through streamlined clock (SCL), data (SDA), and chip select/command select signal lines, further reducing pin usage compared to traditional 4-wire SPI while maintaining stable and reliable data transfer performance. The ST7789V2 driver chip, an optimized version of the ST7789 series, improves video memory management efficiency while maintaining low power consumption characteristics. Combined with simplified SPI timing, the main control MCU only needs to send a few commands to quickly render complex graphics, effectively reducing software development difficulty and the load on the main processor.
Relationship marketing is the market philosophy of Shenzhen Yitai Optoelectronics Co., Ltd. The company does not engage in one-off transactions with customers but instead builds long-term partnerships. A 20,000-square-meter base, 20 production lines, and a monthly capacity of 2.5 to 3 million pieces provide production guarantees for relationships. The 320-member team, including 28 R&D personnel, maintains customer relationships, and 12 years of relationship-building has cultivated customer loyalty. With ISO9001 certification, more than 20 patented technologies, national high-tech enterprise qualifications, a class-10,000 cleanroom, and fully automated production lines, the company consolidates relationships with strength. Over a thousand TN/HTN/STN/VA products, hundreds of TFT color screens, and customized LED backlights focus on small displays from 0.96 inches to 7 inches. Products undergo rigorous environmental testing and are widely used in handheld testing instruments, portable medical devices, smart home control panels, and IoT terminals. Relationship marketing drives the success of products both domestically and internationally.

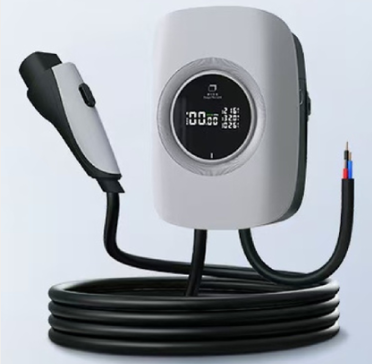

Customized a 4.3-inch charging pile interactive screen for a well-known new energy brand, using high-brightness IPS full lamination technology, meeting the IP65 protection level requirements. We specially optimized the anti-glare design and wide temperature operation performance (-30°C~70°C) for complex outdoor environments to ensure clear display under various weather conditions. The screen integrates an intelligent light-sensing adjustment system that can automatically optimize display brightness according to day and night light changes, greatly enhancing the user operation experience.

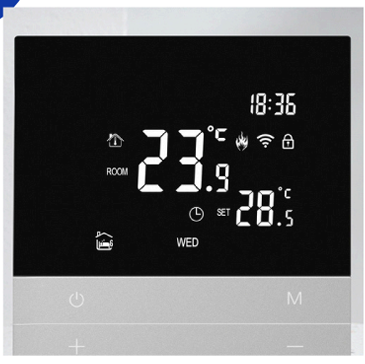

Developed a 3.5-inch high-precision temperature control display customized for a well-known HVAC brand, using full-view IPS full lamination technology and supporting multi-touch operation. According to home environment requirements, we adopted an ultra-thin bezel and rounded corner design, perfectly matching modern interior decoration styles. The screen integrates an ambient light intelligent adjustment function, which can automatically optimize display brightness and contrast according to indoor lighting, greatly enhancing user operation experience and energy efficiency.

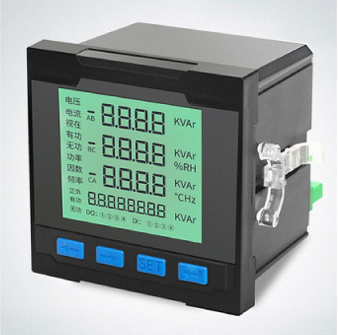

A 4.3-inch industrial-grade instrument display was custom-developed for a well-known power equipment manufacturer. It uses high-contrast IPS full lamination technology and meets the IP65 protection level. To address the specific needs of the power industry, it features an optimized wide temperature design from -30°C to 70°C and a dustproof and waterproof structure suitable for substation environments, ensuring stable operation in complex settings such as substations. The adaptive brightness automatically adjusts, enhancing the efficiency of outdoor inspections and operational safety.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
