Product Details
P/N: | P032H013 | Size (inch): | 3.2 |
Resolution: | 240*320 | Brightness (cd/m²): | 300 Nit |
Interface: | 4 Line SPI | Driver Ic: | ST7789V |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | 20 cm * 30 cm * 40 cm | Delivery Time | 5-8 working days |
Payment Terms | T/T, L/C, Credit card, PayPal | Supply Ability | 500,000 piece per week |
Product Description

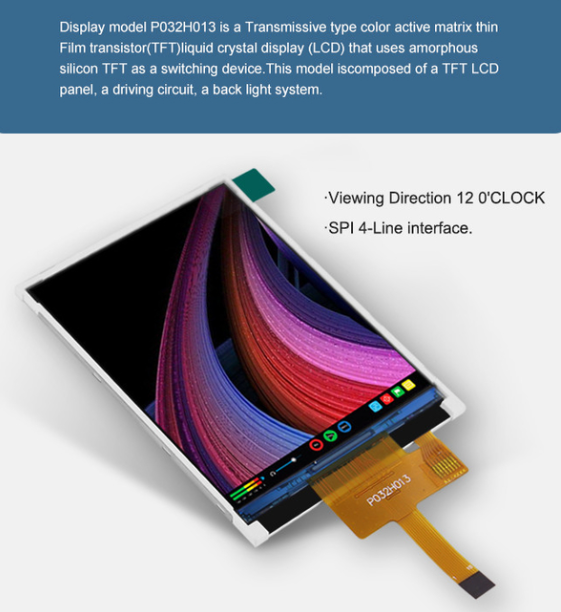

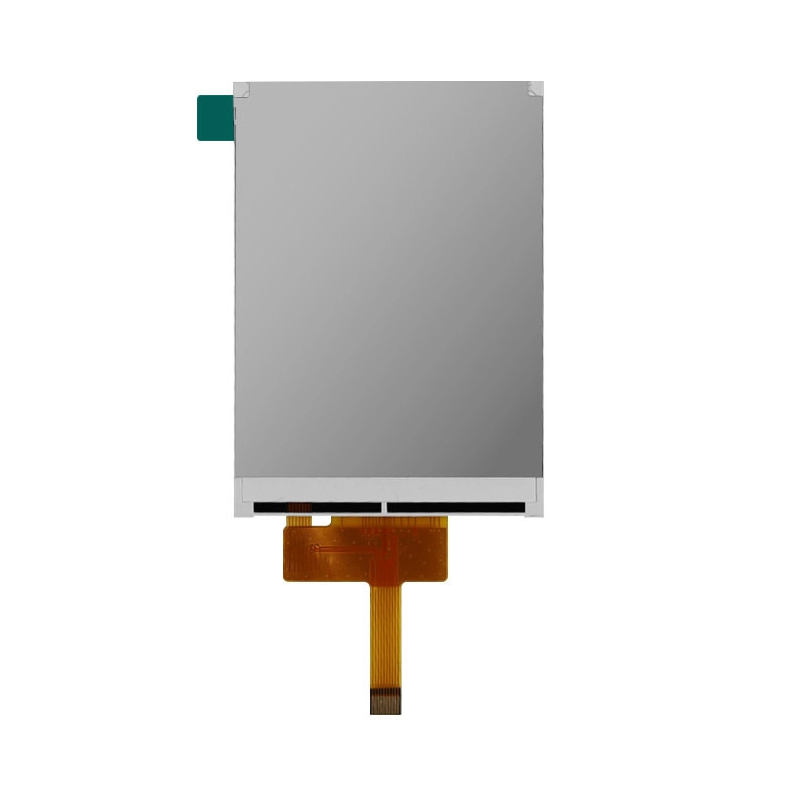

What can we expect from this one? Before this question it is better to know some information about this Small LCD Display module. Screen size is 3.2 inch. A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 240 * 320, clear enough for most scenes to be used. 300 nits allow this lcd to work well indoors.
| P/N | P032H013 |
| Size(inch) | 3.2 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 300 |
| Interface | 4 Line SPI |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 10 |
Supported by 4 Line SPI , this type of TFT LCD can be used in many applications. ST7789V is the driver IC of the tft lcd. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.
