Product Description
This LCD Touch Panel is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that utilizes amorphous silicon TFT as the switching device. Our lcd is the very LCD that you need if your product demands a size 2.8 inch. Enhance your product by equipping it with our 240 * 320 resolution product. The QC department measured the luminance value to be 300 nits within the normal operating condition.
Parameter:
| Model | P028H025-V2 |
| Screen Size | 2.8 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 43.20(H)x57.60(V)mm |
| Pixel pitch | 0.06(H)x0.18(V)mm |
| Pins | 37 pins |
| Outline Dimension | 50.00x69.20x2.30mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally White |
| Viewing Direction(eye) | 12 0'CLOCK |
| Display Color | 262K |
| Luminance(cd/m2) | 270 nit |
| Contrast Ratio | 500:1 |
| Interface | MCU 16bit |

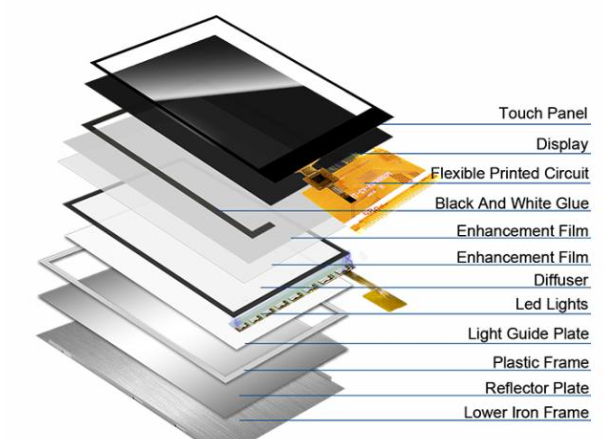

| Back-light | LED Side-light type |
| Drive IC | ILI9341V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |

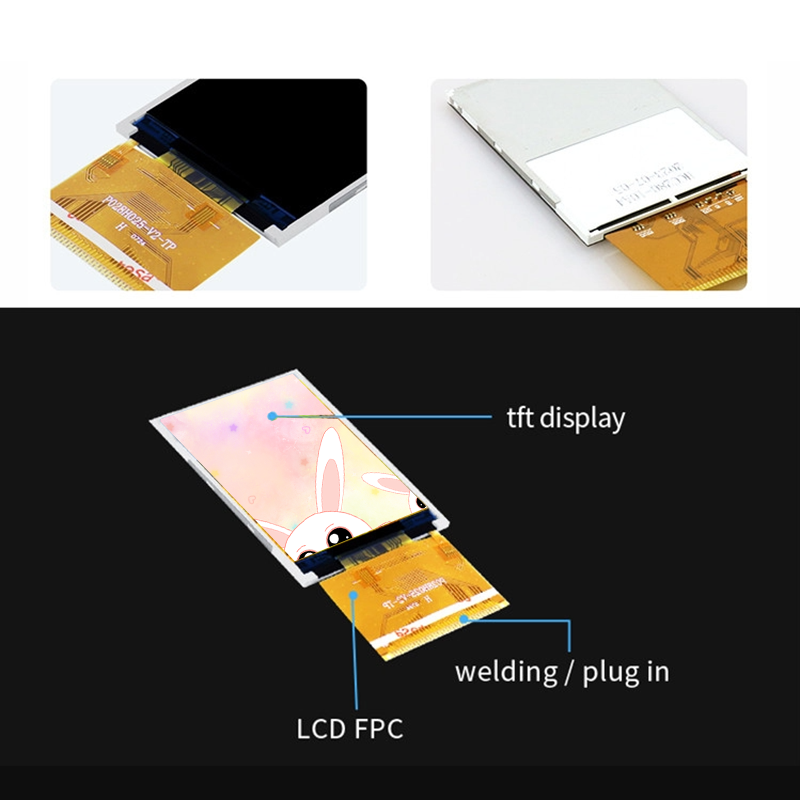

This 2.8-inch TFT LCD display module, P028H025-V2, is an ideal solution for portable medical devices and industrial handheld terminals. It is equipped with a built-in ILITEK ILI9341V high-performance driver chip and displays a resolution of 240×320 pixels (QVGA portrait). Offering a high-brightness display, wide temperature operation, and an MCU parallel interface at a mature stage, P028H025-V2 makes a stable and reliable visual interaction core for devices such as blood pressure monitors, pulse oximeters, portable ultrasound probes, industrial barcode scanners, and smart home control panels.

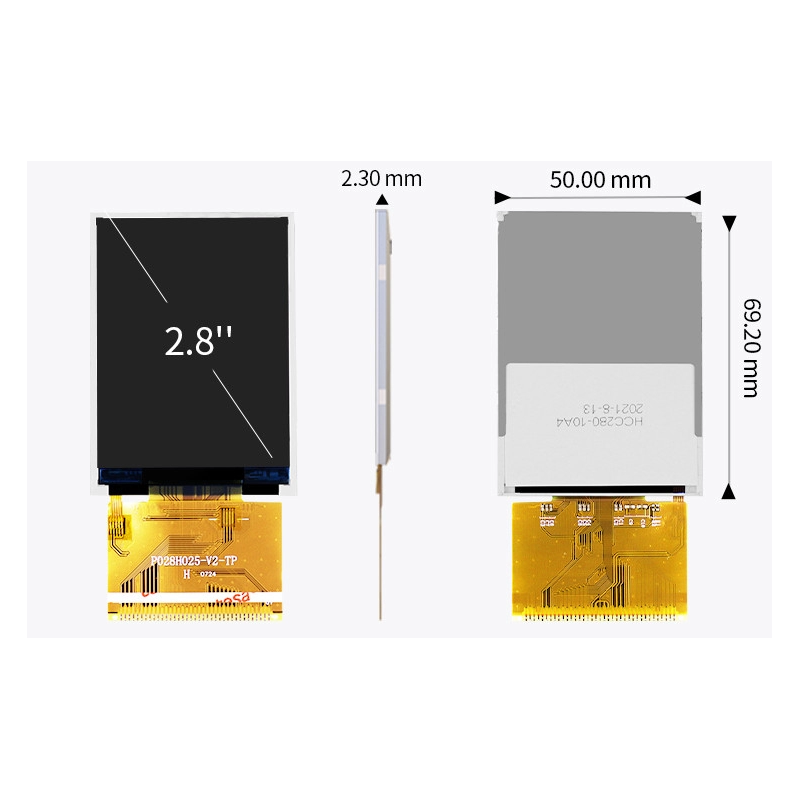

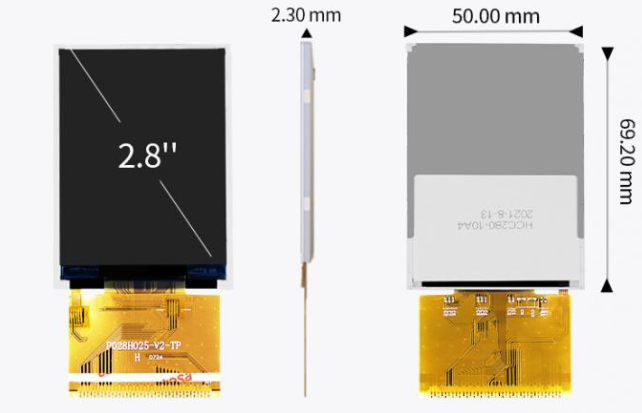

The panel size of the module is 50.00mm × 69.20mm × 2.30mm, with the thickness being only 2.30mm, having a very compact and slim configuration that allows it to be easily embedded into portable devices with limited space. It shows a remarkable level of environmental adaptability through its operating temperature range of -20°C to 70°C and its storage temperature of -30°C to 80°C. Therefore, it can be used even in harsh scenarios of hospital wards, field emergency situations, and industrial workshops that experience large temperature and humidity fluctuations. Besides being RoHS certified, this product is lead-free and halogen-free thus conforming to global medical device export regulations. With the core strengths of a 270 nit high-brightness display, MCU 16-bit wide bus, and medical-grade reliability, the P028H025-V2 has emerged as a powerful choice in medium to high-end 2.8-inch portable display solutions.
Extensive development has led to the stable growth of Shenzhen Yitai Optoelectronics Co., Ltd. The company has been established simultaneously developing in different dimensions: technology (over 20 patents, a 28-person R&D team), production (20,000-square-meter base, 20 production lines, monthly output of 2.5–3 million units), quality (ISO9001, ten-thousand-level cleanroom, rigorous testing), and market (popular domestically, exported to Europe, America, and Southeast Asia). Carrying out the collaborative efforts of 320 staff members, the company has earned the recognition of a national high-tech enterprise and a Shenzhen technology-based SME. Their product range includes more than a thousand TN/HTN/STN/VA modules and several hundred TFT color screens, with customizable LED backlights. It has become the 'invisible screen supplier' in many niche markets through high-precision display technology and deeply customized services while focusing on industrial and consumer displays ranging from 0.96 inches to 7 inches.

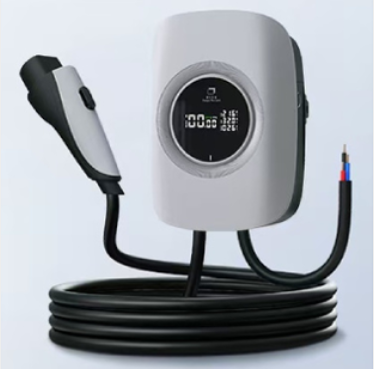

We made a 4.3-inch charging pile interactive screen for a well-known new energy brand based on IPS full lamination technology with high brightness and a protective level of IP65. For the complex outdoor environment, we specially considered the anti-glare design and the wide temperature tolerance (-30°C~70°C) to keep the display clearly visible in all weather conditions. Also, the screen incorporates a smart light sensor that adjusts the brightness automatically for day and night changes, radically enhancing user experience.
Our customer, a well-known communication equipment manufacturer, requested us to customize a 3.5-inch industrial-grade intercom display. We developed the product with a high-brightness IPS fully laminated touch screen, and it also meets IP67 protection requirements. Besides the fact that it is a robust shock-resistant frame, it also has a slip-proof texture design. These 2 elements were our focus during optimization because they have a major impact on the functionality and durability of the product in harsh environments. The product displays automatically adjust based on ambient light because of the integrated intelligent light-sensing adjustment technology feature. Therefore, visibility and operational efficiency during outdoor work are significantly enhanced.
We have made a 4.3-inch industrial-grade instrument display for a well-known power equipment manufacturer using high-contrast IPS full lamination technology and meeting IP65 protection requirements. We have tailored the dustproof and waterproof structure and wide temperature design (-30°C to 70°C) for power industry, which is a quite special sector, keeping the product firm and steady at substations and other challenging outdoor situations. The screen is equipped with an adaptive brightness adjustment system which automatically adjusts the display effects to the ambient light, thus greatly enhancing the efficiency of reading the data and the safety of operations in outdoor inspections.
