Product Description

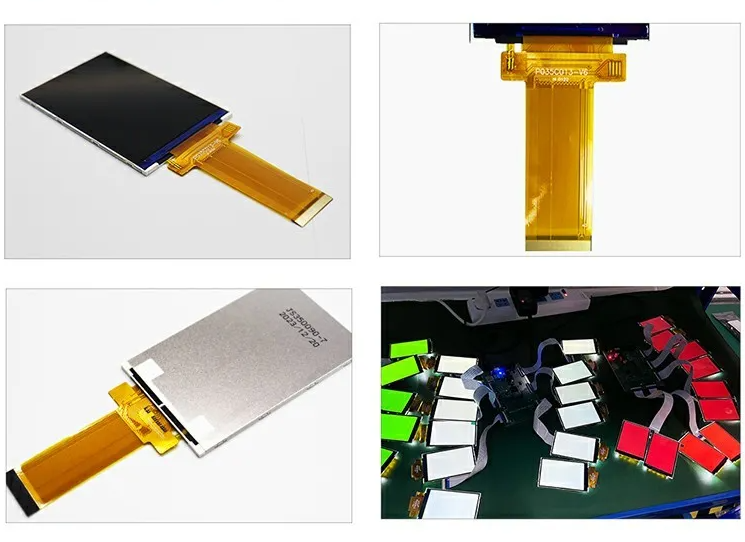

The P035C013-V6-CTP-911 is a 3.5-inch TFT LCD display module incorporating highly integrated display and touch functions. It is equipped with a built-in ILI9488 high-performance driver chip and GT911 capacitive touch IC, with a resolution of 320×480 pixels (HVGA portrait). Offering a high level of brightness, high integration, and flexible interface configurations, it caters to a broad range of one-stop human-machine interaction solutions for smart wearables, medical devices, automotive electronics, industrial handheld terminals, and IoT gateways.
Parameter:
| Model | P035C013-V6-CTP-911 |
| Screen Size | 3.5 inch |
| Number of Pixel | 320RGB(H)x480(V) |
| Display area | 48.96(H)x73.44(V)mm |
| Pixel pitch | 0.153(H)x0.153(V)mm |
| Pins | 40 pins |
| Outline Dimension | 54.48x84.71x3.40mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally white |
| Viewing Direction(eye) | 12 0’CLOCK |
| Gray inversion direction | -- |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 500:1 |
| Surface treatment | -- |
| Interface | MCU 8/16bit SPI 3/4 wire |
| Back-light | LED Side-light type |
| Drive IC | ILI9488 |
| CTP IC | GT911 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
The module measures 54.48mm × 84.71mm × 3.40mm, featuring a small-sized design and an excellent FPC cable bending capability that facilitate the flexible arrangement of limited spaces in the device. Not only is it highly adaptable to different environments with the ability to work at temperatures within the range of -20°C to 70°C and to store at temperatures within the range of -30°C to 80°C, but it also manages to withstand the changes of seasons and the alternation of high and low temperatures in industrial conditions. Moreover, this product has been subjected to a RoHS test, which certifies the use of environmentally friendly materials and export compliance.
Integrated display and touch, flexible interfaces, high brightness, and high reliability are the core advantages of the P035C013-V6-CTP-911, which make it a perfect display solution for 3.5-inch small to medium-sized smart interaction terminals.
Customer approval is the top form of recognition for Shenzhen Yitai Optoelectronics Co., Ltd. The products of the company, which was founded in 2014, have become a part of the supply chains of many globally recognized companies and are found in handheld detectors, portable medical devices, smart home control panels, and IoT terminals. Validated by customers for twelve years, the company boasts a 20,000-square-meter plant, 20 production lines with a monthly output of 2.5-3 million units, and a staff of 320 people including 28 R&D staff. They have been awarded more than 20 patents, have achieved ISO9001 certification, and are acknowledged as a national high-tech enterprise. Their class 10,000 cleanroom and automated production lines have been subjected to the customer factory audits. Having more than a thousand TN/HTN/STN/VA products, over a hundred TFT color screens, and customized LED backlight sources, the company places its emphasis on the 0.96-7 inch market. Its products have been exported to Europe, the United States, and Southeast Asia, where they have received great customer recognition.

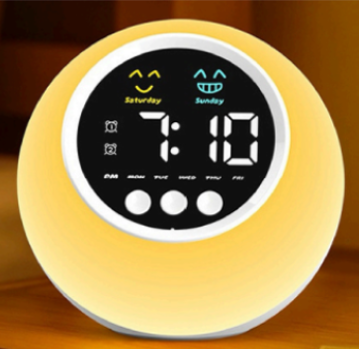

We have tailored the making of a 2.8-inch minimalist clock display for a household brand, using very few watt IPS full lamination, enabling clear display from 180° wide viewing angles. For bedroom scenarios, we worked on the ultra-thin borderless design and soft light guide structure, making the two perfectly compatible with the appearance of modern homes. The display panel is also equipped with a smart sensor adjusting light level automatically so as to change the display modes on the basis of daylight, and also it will be in soft light mode at night in this way the time is visible clearly without interfering with sleep quality.
Created a 3.5-inch high-precision temperature control display uniquely designed for a famous HVAC brand, incorporating full-view IPS full lamination technology and enabling multi-touch operation. In consideration of home environment, we decided to go for an ultra-thin bezel and rounded corner style, which are consistent with chic interior design motifs of present day. The screen also features ambient light intelligent adjustment, which is able to automatically fine-tune display brightness and contrast depending on indoor lighting, thereby largely enhancing user's operation experience and saving energy too.
Designed a 4.3-inch industrial-grade instrument display for a famous power equipment manufacturer according to specifications, employing high-contrast IPS full lamination technology and suitable for IP65 protection level requirement. We made further improvements to the dustproof and waterproof design, and the wide temperature range (-30°C to 70°C) for the particular needs of the power industry so that the equipment can be used reliably in such complicated environments as power substations without problems. The display has a system determining brightness adaptively and tuning the presentation automatically as per the surrounding conditions which is a very useful feature for outdoor data reading and enhancing operational safety significantly.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
