Product Description

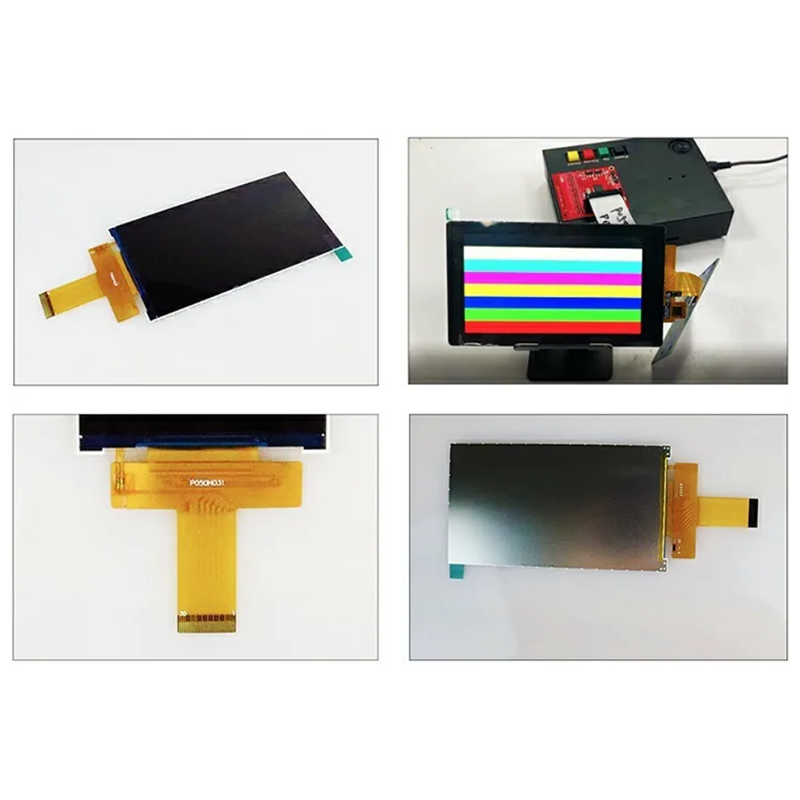

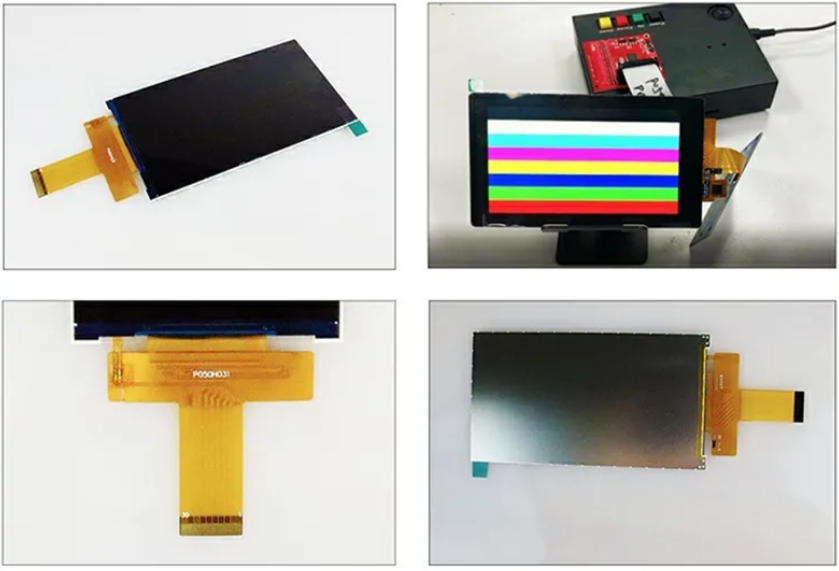

The P050H031-IPS is a compact 5-inch TFT LCD display especially targeted for mid-to-high-end smart terminals equipped with an advanced visual experience. It uses IPS full-view display technology and comes with a built-in professional driver chip of the ST7703 type. Its resolution reaches up to 720×1280 pixels (HD portrait). Its characteristics include a tight pixel layout, great color space coverage, and a rapid MIPI interface that makes it capable of delivering high-quality visuals for a range of products including smartphones, tablets, vehicles’ central control systems, medical equipment, industrial tablets, as well as luxurious consumer electronics.
Parameter:
| Item | Specification |
| Model | P050H031-IPS |
| Screen Size | 5 inch |
| Number of Pixel | 720RGB(H)x1280(V) |
| Display area | 62.10(H)x110.40(V)mm |
| Pixel pitch | 0.0945(H)x0.0945(V)mm |
| Pins | 30 pins |
| Outline Dimension | 66.40x120.05x1.70mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Gray inversion direction | -- |
| Display Color | 262K |
| Luminance(cd/m2) | 400 nit |
| Contrast Ratio | 800:1 |
| Surface treatment | -- |
| Interface | MIPI |
| Back-light | LED Side-light type |
| Drive IC | ST7703 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Regarding its display capabilities, it can show 400 nits of brightness. Conjointly with 800:1 high contrast ratio and Normally Black display mode, the set-up is capable of producing very dark areas that are rich and pure, giving bright areas that are full of details and providing a more dynamic range in addition to HDR contents with better layering. The backlight uses an LED side-in structure which has the characteristics of being thin, light and possessing superior light emission. Physically it measures 66.40mm × 120.05mm × 1.70mm and its thickness is only 1.70mm; the extremely slim design allows straightforward fitting with all kinds of portable devices that are focused heavily on being very slim.
It also performs very well with regard to environmental conditions. For instance, it can be used at a temperature range of -20°C to 70°C and can be stored at a temperature range of -30°C to 80°C. This shows that it can adapt not only to temperature changes inside and outside of buildings but also to different seasons. It has passed through the RoHS environment certification, and the use of lead-free and halogen-free materials has been ensured, thus, the product is compliant with the international green manufacturing standards. Besides its features like 720P HD resolution, IPS full viewing angle, 98% sRGB wide color gamut, and high-speed MIPI interface, the P050H031-IPS could perfectly meet the requirements for the 5-inch mid-to-high-end display solutions that provide an excellent balance between visual quality and energy-saving.
Since Shenzhen Yitai Optoelectronics Co., Ltd. made a quality commitment to its customers, the latter can rest assured that the promise is sincere. Even since 2014 when the company came into existence, it has never wavered from the motto "customer first, quality foremost," and before being put on the market, almost every product is subjected to rigorous tests which include high and low temperature, vibration, and anti-interference. With a 20,000 square meter base, a ten-thousand-level dust-free purification workshop, and 20 automated production lines, the monthly production capacity is 2.5 to 3 million units. A team of 320 people fulfills the quality commitment, with 28 R&D personnel enhancing quality standards, and more than 20 patents covering quality technology. It is a national high-tech enterprise with ISO9001 certification. The products include over a thousand TN/HTN/STN/VA modules and hundreds of TFT color screens, with customizable LED backlight sources. Focused on the 0.96-inch to 7-inch market, with twelve years of steadfast quality commitment, the products are widely used in handheld testing, portable medical devices, smart home, and IoT terminals, and are exported to Europe, America, and Southeast Asia.

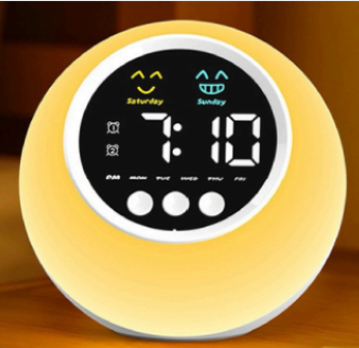

We designed a 2.8-inch minimalist clock display for a famous home brand, which had a very low beight using IPS technology and full lamination, allowing it to be clearly seen from a wide 180-degree angle. Considering the main use of a bedroom, we came up with a very thin borderless design and a soft light guide structure that are in complete harmony with contemporary home interiors. Additionally, the display has intelligent sensors that adjust lighting, which can automatically change the display modes based on the amount of daylight and at night switch to a soft light mode to prevent disturbance of sleep while still ensuring the time is visible.

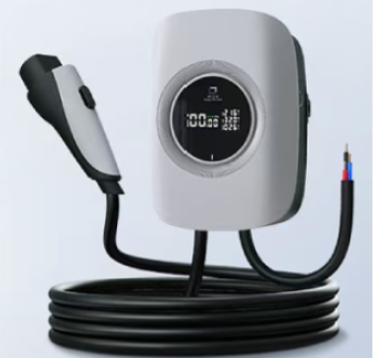

For a new energy brand of great repute, we developed a 4.3-inch charging pile interactive screen. It was made with high-brightness IPS full lamination technology, and we met IP65 protection level requirements. Our priority was to upgrade anti-glare design and wide temperature operation performance (-30°C~70°C) for the complex outdoor environment. This would ensure that the display could be clearly seen in any weather. Besides, the display is equipped with an intelligent light-sensing system that automatically adjusts brightness according to light changes during the day and at night, thereby improving greatly the user experience.
We have developed a 4.3-inch industrial-grade instrument display for a leading power equipment manufacturer. The display used high-contrast IPS full lamination technology and met the IP65 protection level requirements. In addition to meeting the IP65 requirements, we also improved the PCBA dustproof and waterproof design and made it suitable for a wide range of temperatures (-30°C~70°C). All of these are essential features in the power industry where the equipment is typically used outdoors in very challenging environments, such as substations. The display has a brightness adjustment system that can automatically change the display results depending on the level of ambient light, which greatly assists us in outdoor inspections by providing better data reading and enhancing safety during operations.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
