Product Description
Description of 2.4 inch TFT LCD :
2.4 inch TFT LCDs are widely found in diverse electronic gadgets such as handheld gaming consoles, car displays, industrial control panels, medical instruments, and smart home devices. Usually, these displays feature low energy consumption, broad viewing angles, and offer flexibility in customization to suit different needs of applications. Such customizations may involve touch screen enabling or selection of various backlight types.
Parameter:

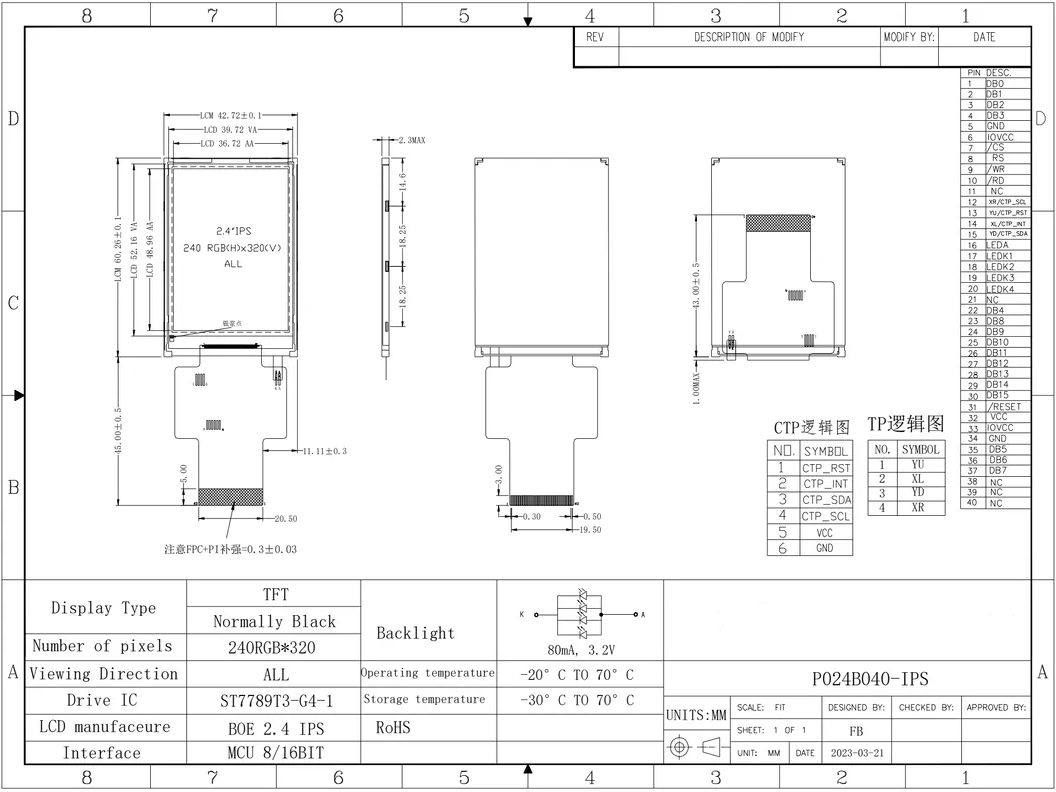

| Item | Specification |
| Model | P024B040-IPS |
| Screen Size | 2.4 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 36.72(H)x48.96(V)mm |
| Pixel pitch | 0.153(H)x0.153(V)mm |
| Pins | 40 pins |
| Outline Dimension | 42.72x60.26x2.30mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Gray inversion direction | -- |
| Display Color | 262K |
| Luminance(cd/m2) | 450 nit |
| Contrast Ratio | 1200:1 |
| Surface treatment | -- |
| Interface | MCU 8/16BIT |
| Back-light | LED Side-light type |
| Drive IC | ST7789V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |

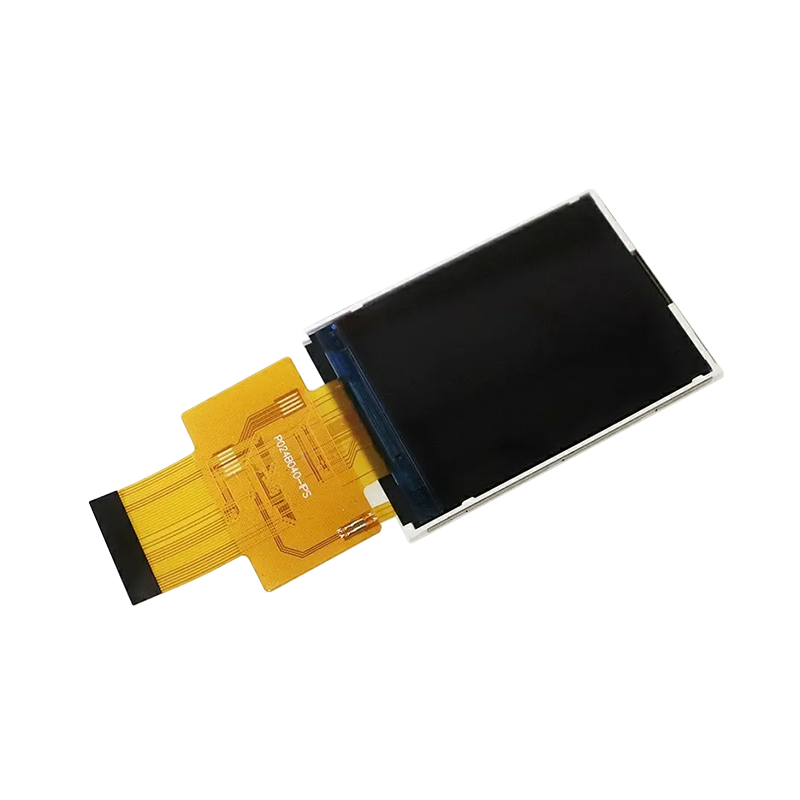

The 2.4-inch P024B040-IPS display module features an advanced TFT LCD with IPS full-view technology and ST7789V2 driver chip. The display resolution is QVGA (240×320 pixels) portrait and the color performance and viewing angles are excellent. The charming visual experience provided by the screen makes it a perfect fit for medical equipment, industrial instruments, smart home appliances, wearable gadgets, and portable terminals.
The visible display area of the module is 36.72mm (horizontal) × 48.96mm (vertical), with a pixel pitch of 0.153mm × 0.153mm, enabling the display of images with fine detail and clarity. The RGB vertical stripe pixel layout is used and the module is capable of producing 262K different colors (18-bit color depth) with very natural and smooth changes between colors. The key attribute of IPS technology is its design for viewing from all sides (ALL) angles; even when looking at the screen from any direction - up, down, left, or right - one cannot notice a significant color change or brightness reduction, thereby effectively doing away with the viewing-angle blind spots and gray-scale inversion problems encountered in traditional TN panels. It is highly fitting for use cases in which multiple people view the screen simultaneously or where the device orientation is changed frequently.
Shenzhen Yitai Optoelectronics Co., Ltd. holds manufacturing precision as their main KPI. The enterprise commenced operations in 2014, and the company, within their 20,000-square-meter area, has maintained super-high manufacturing precision through ten-thousand-level cleanrooms and 20 high-end fully automated LCD production lines. The monthly turning out is about 2.5 to 3 million units, with 320 workers carrying out precision work and a 28-person R&D team advancing precision processes. Among their achievements are more than 20 patents, ISO9001 certification, designation as a national high-tech enterprise, and a product lineup comprising over a thousand TN/HTN/STN/VA modules and hundreds of TFT color screens with customizable LED backlights. The company has focused on the small-size market ranging from 0.96 inches to 7 inches and has twelve years of precision control experience. Moreover, the products are subjected to high and low temperature, vibration, and anti-interference tests and are widely used in handheld inspection, portable medical devices, smart home, and IoT terminals. The products are exported to Europe, the US, and Southeast Asia.
Customized design and development of a 3.5-inch industrial-grade intercom display for a leading communication equipment manufacturer where the display was a high-brightness IPS fully laminated touch screen meeting IP67 protection standards. Additional features included the optimized shock-resistant frame and the anti-slip texture design, which were specially made for the unique requirements of the industry, thereby achieving stable operation when used in the harsh environment. The implementation of the intelligent light-sensing adjustment technology in the screen allows for automatic changes from day to night display modes based on the surrounding light, greatly improving the level of visibility and the overall efficiency of operations carried out outdoors.
We provided a 4.3-inch charging pile interactive screen tailored to a famous new energy brand that used high-brightness IPS full lamination technology with the screen also meeting IP65 protection level requirements. We primarily worked on the anti-glare features and extended temperature performance range for operations (-30°C to 70°C), so as to be able to see the screen clearly even in extreme weather conditions. The screen also comprises an intelligent light-sensing adjustment system which can), based on changes in light levels during day and night, automatically optimize the screen brightness level, this feature significantly enhances the user experience when operating the device.

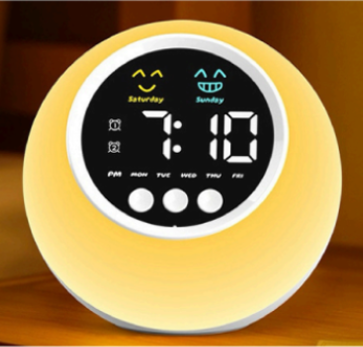

Making a 2.8-inch minimalist clock display for a famous home brand, customized to low-power IPS full lamination technology the wide clear viewing angle of 180° is supported. Since the main use of this type of clock will be in bedrooms, the extra-effort went into the design to make it an ultra-thin borderless one with soft light guide structure. Now it is a perfect match to the aesthetics of the modern home. To the screen was added an intelligent light sensing adjustment system, it can change the display modes automatically upon the change of daylight; At night, the switch to soft light mode is made independently so that the time can still be read clearly but the quality of sleep is not disturbed.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
