Product Description
New published LCD Touch Panel for commercial and industrial use. Screen size is 1.77 inch. A very common and hot selling size for small size TFT display.
Improve your product design by adding our 800 * 480 resolution product. 300 nits allow this lcd to work well indoors.
| P/N | P177C011 |
| Size(inch) | 1.77 |
| Resolution | 128*160 |
| Active Area(mm) | 28.03*35.04 |
| Pixel pitch(um) | 73*219 |

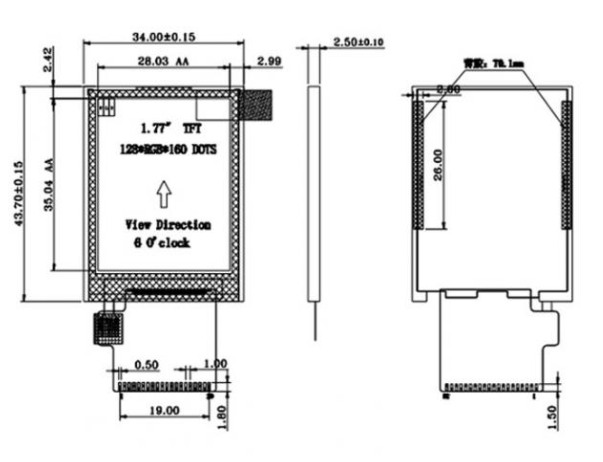

| Outline Dimension(mm) | 34.00*43.70*2.5 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | ALL |
| Display colors | 262K |
| Brightness(cd/m²) | 300 |
| Contrast Ratio | 300:1 |
| Interface | RGB 24bit |
| Back-light | LED Side-light type |
| Driver Ic | ST7262 |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 30 |
| Pin Number | 40 |

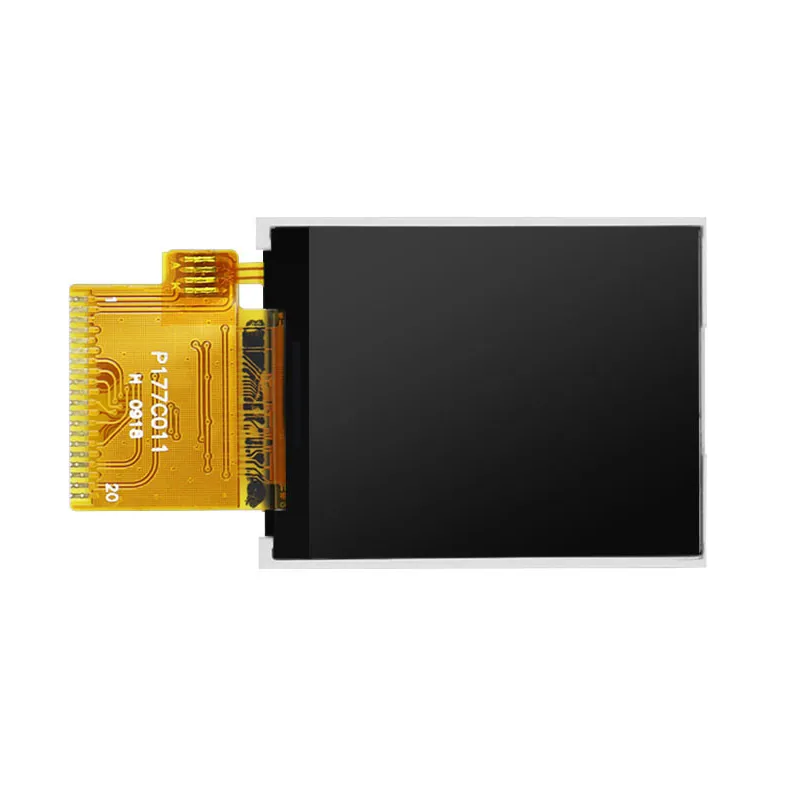

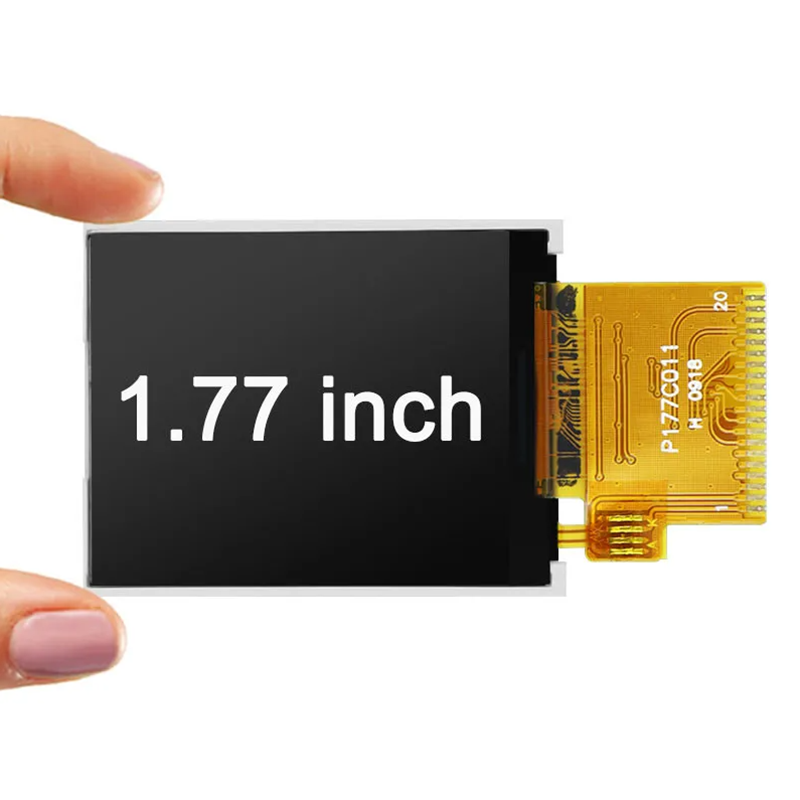

P177C011 is a 1.77-inch TFT color LCD module which is especially developed for medical equipment and high-precision embedded applications. The module incorporates ST7262 chip, supports RGB 24-bit true color interface and its color depth is 24 bits so it can display 262K high colors with smooth and detailed color transitions. It is suitable to meet the color accuracy requirements for medical imaging, data waveforms, etc.
As for the main display parameters, the resolution is 128×160 pixels, with pixels arranged in an RGB vertical stripe structure and with a pixel pitch of 73×219 microns. The viewable area is 28.03×35.04 mm, giving a sharp image resolution and at the same time the product is small in size. The physical size of the module is 34.00×43.70×2.5 mm, therefore the module is lightweight and small, which is very convenient for availability in portable medical devices, handheld testing equipment, and other types of terminal products that need to be very compact. The display mode used is Normally Black, and the module also boasts of a high contrast ratio of 300:1. That is, the black background is so deep and pure that it greatly increases the visibility of features like small lesions, data curves etc., which is why medical monitoring and diagnostic equipment display is the main location where this product is used.
Shenzhen Yitai Optoelectronics Co., Ltd. for twelve years has been a history of hard work and innovation. It was founded in Shenzhen in 2014 and from the start-up it has developed into a national high-tech enterprise. It has a base of 20,000 square meters, 20 production lines, a monthly output of 2.5-3 million units, a team of 320 people (including 28 R&D personnel), and more than 20 patents. Its quality foundation is based on ISO9001 certification, a class-10,000 cleanroom, and fully automated LCD production lines. With a complete set of hundreds TN/HTN/STN/VA products, hundreds of TFT color screens, and customized LED backlight services, the company is mainly focused on the small-size market ranging from 0.96 to 7 inches. Following the tenet of 'Customer First, Quality Foremost,' the products after multiple tests of high and low temperatures, vibration and anti-interference have been widely used in handheld inspection devices, portable medical equipment, smart home systems, and IoT terminals. The company products are exported to Europe, America, and Southeast Asia from China.
Yitai Optoelectronics is looking forward to continuously offering quality diversified display solutions to worldwide customers.
We customized a 4-inch financial-grade encrypted display for international banks,using a military-grade IPS full lamination touchscreen, which is compatible with PCIDSS payment security standards. Aiming to fulfill the stringent security measures of the financial sector, we even crafted the anti-peeping structure and tamper-proof frame to guarantee data security on ATMs and other self-service terminals. Besides, the screen is equipped with a smart ambient light detection system that can determine the branch lighting situation and make the display automatic adjustment to the preferred state, which greatly enhances the customer operating experience and transaction efficiency.
We developed a 3.5-inch industrial-grade intercom display for a well-known communication equipment manufacturer, using a high-brightness IPS fully laminated touch screen, meeting IP67 protection requirements. Besides utilizing a high-brightness IPS fully laminated touch screen and achieving a protection level of IP67, we took the shock-resistant frame and anti-slip texture design to a whole new level for the special requirements of the industry and ensured a reliable operation even under the harshest conditions. The screen is embedded with intelligent light-sensing adjustment technology enabling it to automatically switch between day and night display modes based on ambient light, thereby greatly enhancing visibility and operational efficiency when working outdoors.
We customized development of a 4.3-inch industrial-grade instrument display for a well-known power equipment manufacturer,With the adoption of high-contrast IPS full lamination technology, the display can be used in environments suiting IP65 protection level requirements. Apart from this, we have also upgraded the dustproof and waterproof structure as well as the wide temperature design (-30°C to 70°C) in order to meet the unique demands of the power industry, which results in the equipment being able to perform reliably even in complex environments such as substations. Additionally, the screen includes a brightness adjustment system that can adapt to different light levels by automatically optimizing display effects, which substantially facilitates data reading and operational safety during outdoor inspections.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
