| P/N | P055H018-IPS-V3 |
| Size(inch) | 5.5 |
| Resolution | 720*1280 |
| Brightness(cd/m²) | 300 |
| Interface | MIPI |
| Driver Ic | ST7703 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |

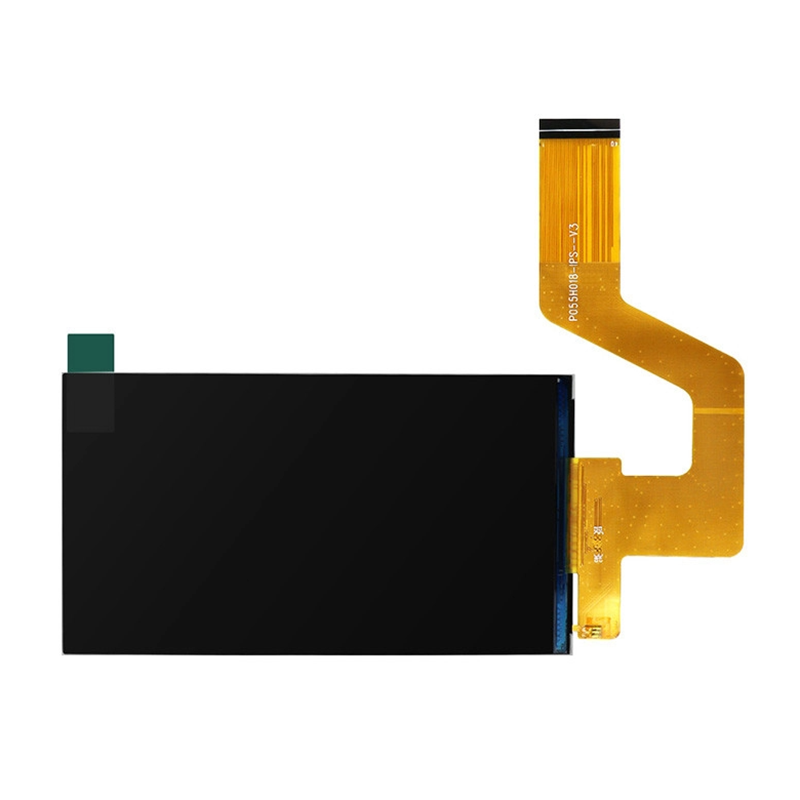

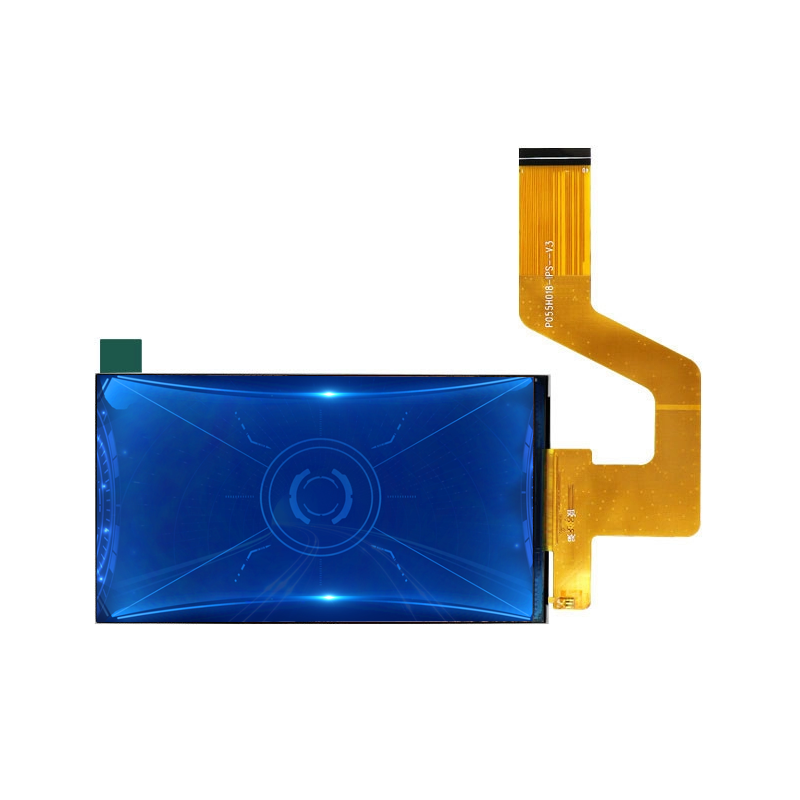

The P055H018-IPS-V3 is a 5.5 inch TFT LCD module that targets smart terminals ranging from mid to high-end. IPS full-view technology is employed while the main driver is ST7703, a professional chip. Being in portrait mode, the screen resolution can reach 720×1280 pixels (HD) along with a high pixel density, wide color gamut coverage, and a high-speed MIPI interface. These features can turn any smartphone, industrial tablet, in-vehicle central control, medical device, security monitoring, and high-end consumer electronic into a perfect integrated display and touch interaction solution.
With a backlight measuring 300 cd/m², LED is employed in a side-entry way that is not only thin but also uniform and very efficient in light emission. The display is still very visible when it is double the normal indoor lighting or even semi-outdoor lighting condition. By combining the Normally Black display mode along with high contrast, it is possible to create deep and pure dark scenes, while still bright areas can hold on to rich details. The dynamic range is wide, while text and icon edges are kept sharp and clear on dark-themed interfaces. 720×1280 resolution on 5.5-inch panel means a pixel density that is very fine, with UI text being very clear, icons being very sharp, and vertical information scrolling and HD video presentation being especially outstanding.
Raising manufacturing standards is the Shenzhen Yitai Optoelectronics Co., Ltd.'s code of conduct. The company strictly implements the ISO9001 quality management system, and its products comply with environmental standards such as RoHS and REACH, with some models meeting medical-grade reliability requirements. Since its establishment in 2014, the company has operated a 20,000-square-meter facility with 20 production lines, a monthly output capacity of 2.5 to 3 million pieces, and a team of 320 employees, including 28 R&D personnel, all practicing high standards. With more than 20 patented technologies, national high-tech enterprise qualifications, a Class 10,000 cleanroom, and fully automated LCD production lines, the company ensures compliance with standards. It offers over a thousand TN/HTN/STN/VA products, hundreds of TFT color screens, and customized LED backlight sources, focusing on the 0.96-inch to 7-inch market.The company is well-positioned in the global supply chain and constantly innovates by investing in research and development. R&D personnel follow highly professional, disciplined, and comprehensive line of work resulting also in new products and development. They regularly expand their portfolio with new technologies and products, they have accumulated more than 20 patented technologies, have obtained national high-tech enterprise qualifications, operate a Class 10,000 cleanroom, and have fully automated LCD production lines. Compliance with standards is guaranteed.Testing includes temperature extremes, vibration, and anti-interference, which has made the final product fit the very typical applications of handheld testing instruments, portable medical devices, smart home control panels, and IoT terminals. The company takes the lead by providing market standards and exports products to Europe, the United States, and Southeast Asia.
Customized development of a 3.5-inch industrial-grade intercom display for a well-known communication equipment manufacturer, using a high-brightness IPS fully laminated touch screen, meeting IP67 protection requirements.We further improved the shock-resistant frame and anti-slip texture design in order to meet the special needs of the industry, thus providing a guarantee for stable operation under harsh conditions.The screen is equipped with intelligent light-sensing adjustment technology and can automatically switch between day and night display modes according to ambient light. This greatly improves the visibility and work efficiency during outdoor operations.
Custom-developed a 5-inch medical-grade touch display for a well-known medical device manufacturer, using a high-resolution IPS fully laminated panel, compliant with Class B electromagnetic compatibility standards.Besides fully complying with medical ergonomics standards, we gave the device an antibacterial bezel and included an anti-glare coating to be able to work smoothly in operating rooms or other complex environments.Also, it includes an ambient light intelligent adjustment system that automatically selects display settings based on the environment and it can noticeably reduce eye strain, helping doctors with diagnosis and treatment work more efficiently.
We developed a 4-inch financial-grade encrypted display customized for international banks. The display used a military-grade IPS full lamination touchscreen and got approval as it was compliant with PCIDSS standards for payment security. Since the financial industry is under a lot of pressure to maintain security, we not only designed an anti-peeping structure but also a tamper-proof frame in order to maintain security of the data made available on ATMs and other self-service terminals.Moreover, the screen features an intelligent light sensor system that is able to react to the ambient light conditions and switch the screen automatically to a state that is the best for display – this goes a long way in making the customer operation experience more enjoyable and the transaction process faster.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
