| Model | PMOLED049001 |
| Brand | Yitai |
| Size | 0.49" |
| Resolution | 64x32 |
| Active Area | 11.18×5.58mm |
| Outline Dimension | 14.5×11.6×1.2mm |
| Color | White / Blue |
| Brightness | 180 (Min) cd/m² |
| Power Supply Mode | Internal supply |
| Interface | 4-wire SPI / I²C |
| Warranty | 1 - 2 years |

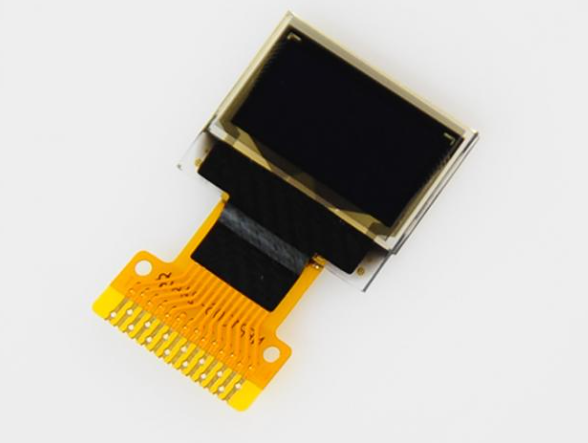

The PMOLED049001 has a 0.49-inch monochrome PMOLED screen with a resolution of 64×32, which can easily show two lines of text or a row of icons on a display area measuring 11.18×5.58mm, and it operates at a high brightness level of 180cd/m². The pure black background with pure white (or pure blue) content provides a very sharp contrast and the panel does not even demand backlight, there is no light leakage, and no viewing-angle blind spots — this is naturally the advantage given by the self-luminous principle of OLED. It serves as a soft indicator light in the dark, while in the bright sunlight its information is still readable due to the high brightness.
The restraint in physical dimensions is almost a work of art: the module is only 1.2mm thick, with an overall size of 14.5×11.6mm, and its weight is almost negligible. There is no stacking of backlight modules, no thickness from an LCD casing; the PMOLED is integrated into devices in an extremely minimalist 'single-layer structure.' This thinness is not a compromise but a technological evolution — it allows the curvature of smart rings to fit more closely to the finger, the casing of hearing aids to be closer to the ear canal, and the packaging of miniature sensors to be more compact.
With twelve years of deep cultivation in the LCD display industry, Shenzhen Yitai Optoelectronics Co., Ltd. has a solid foundation. Since its establishment in 2014, the company has focused on key links in the industry chain. With a 20,000-square-meter base, 20 production lines, and a monthly capacity of 2.5 to 3 million units, it demonstrates the results of its in-depth industry cultivation. The team consists of 320 members, including 28 R&D personnel, over 20 patented technologies, national high-tech enterprise certification, and ISO9001 certification. The cleanroom at Class 10,000 level and fully automated production lines represent the company's investment in the industry. Products include over a thousand TN/HTN/STN/VA display modules and hundreds of TFT color screens, with customizable LED backlights. Focusing on sizes from 0.96 to 7 inches, the products undergo high and low temperature, vibration, and anti-interference tests, and are widely used in medical, inspection, smart home, and IoT fields, selling well both domestically and internationally.
We customized a 4.3-inch interactive screen for an energy company charging pile, which utilized the IPS full lamination technology with high brightness. It can meet the IP65 protection level requirements. We also specially optimized both the anti-glare effect and the wide temperature operation performance (-30°C~70°C) for outdoor environments, which are often complex in terms of weather and display conditions, to ensure clear presentation of the information. Additionally, the screen is equipped with a smart sensing light adjustment solution, which can modify display brightness automatically as per the changes of day and night light, resulting in a better user operation experience.
Custom-developed a 5-inch medical-grade touch display for a well-known medical device manufacturer, using a high-resolution IPS fully laminated panel, compliant with Class B electromagnetic compatibility standards. We strictly adhere to medical ergonomics requirements, implementing antibacterial bezels and anti-glare design to ensure stable operation in complex environments such as operating rooms. The screen integrates an ambient light intelligent adjustment system, which can automatically optimize display parameters according to the usage scenario, effectively reducing visual fatigue for medical staff and improving diagnostic and treatment efficiency.
Customized development of a 3.5-inch industrial-grade intercom display for a well-known communication equipment manufacturer, using a high-brightness IPS fully laminated touch screen, meeting IP67 protection requirements.We further improved the shock-resistant frame and anti-slip texture design in order to meet the special needs of the industry, thus providing a guarantee for stable operation under harsh conditions.The screen is equipped with intelligent light-sensing adjustment technology and can automatically switch between day and night display modes according to ambient light. This greatly improves the visibility and work efficiency during outdoor operations.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
