Parameter:
| Product name | TFT LCD |
| Diagonal size | 3.5 inch |
| Model | LQ035NC111 |
| Type | TFT-LCD, liquid crystal module |
| Resolution | 320(RGB)x240 QVGA 115PPI |
| Display area | 70.08(H)x52.56(V) mm ; |
| Open area | 73.03(H)x55.50(V) mm |
| Display brightness | 300 cd/m2 (Typ.) |
| Pixel arrangement | RGB vertical bars |
| Physical dimension | 76.9(H)x63.9(V) x3.46(T) mm |
| Surface treatment | Haze (Haze 20%) |
| Contrast | 400:1 (Typ.) (Transmission) |
| Response time | 10/15 (Typ.)(Tr/Td) ms |
| Display mode | TN, normally white display, transmissive |
| Recommended viewing angle | 6 o'clock |
| Viewing angle | 60/60/50/55 (Typ.) (CR210) |
| Color support | 16.7M , 60% NTSC |
| Weight | 30.0g (Typ.) |
| Frame rate | 60Hz |
| Interface Type | 54 pins Digital RGB (8/24-bit) + SPI, CCIR601/656, FPC |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Operating temperature: -20~ 70 °C; Storage temperature: -30~ 80 °C |
| Type of light source | WLED [6S1P], 10K hours, no driver |
| Touch technology | No; supports custom touch |
Applications
The 3.5 inch TFT LCD screen with RGB interface and 6 o'clock direction viewing angle can be used in a wide range of applications. One of the primary uses is in the automotive sector where it can be used for the display screens of infotainment systems, rearview cameras, and GPS navigation systems. Another area where this display screen can be used is in industrial control systems like PLCs, HMIs, and data loggers. Besides, the display is also suitable to be used in portable devices such as smartphones, digital cameras, and portable media players due to its small size and low power consumption. At the same time, the 6 o'clock direction viewing angle of such a TFT LCD gives it a top spot for the display of images that are clear and accurate when viewed from below, this comes handy in applications like vehicle navigation systems and control panels in industrial settings.

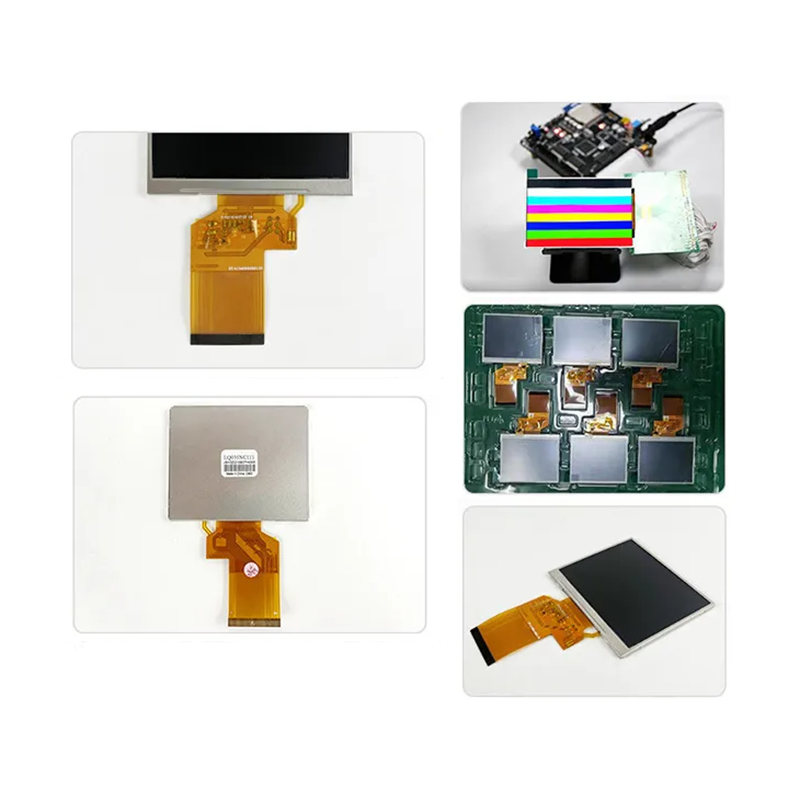

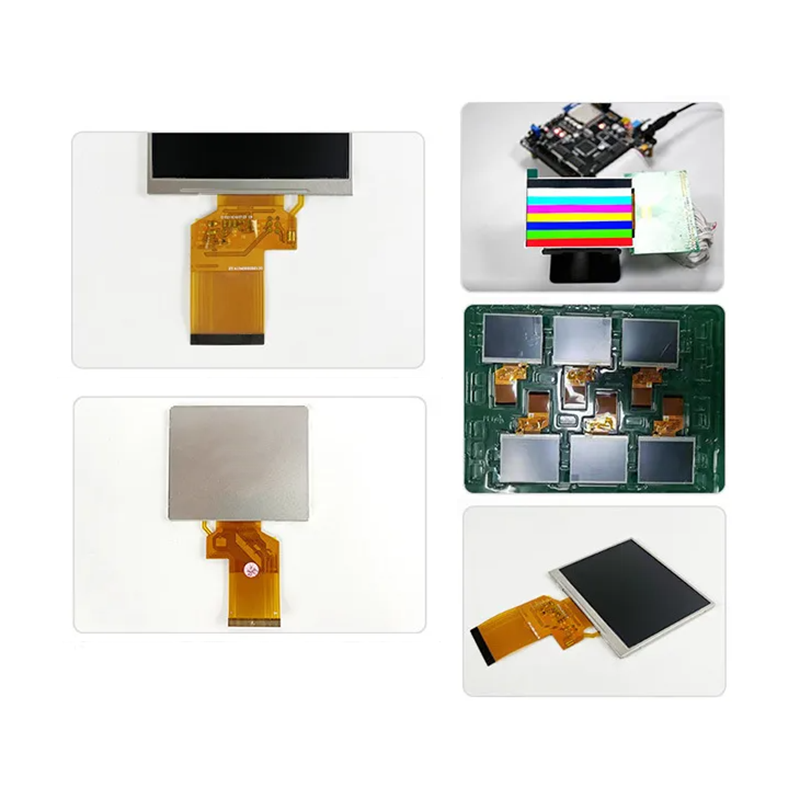

LQ035NC111 is a 3.5-inch high-quality TFT LCD module that features a fuzzy-type normally white display technology and utilizes a transmissive display mode. It is targeted at industrial control, medical equipment, instrumentation, and embedded systems. This particular model sports a QVGA resolution of 320×240 pixels, pixel density 115 PPI, RGB vertical stripe pixel arrangement, 16.7M (16.7 million colors) true color, with NTSC color gamut coverage of 60%, allowing accurate and sensitive color reproduction, which is essential for meeting the highest professional-grade display requirements.

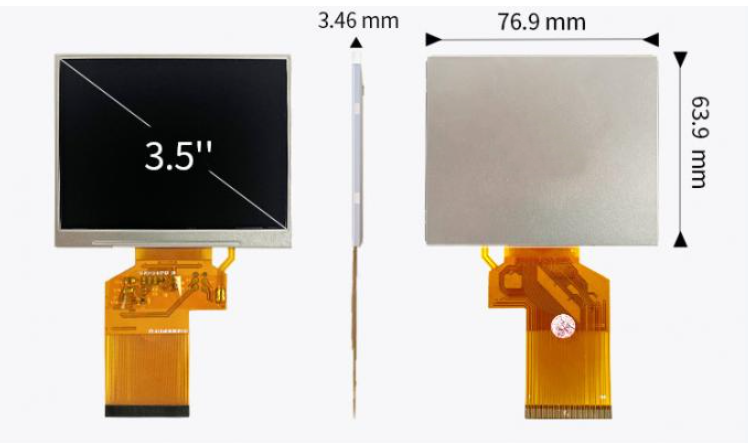

The main body has a size of only 76.9mm × 63.9mm × 3.46mm (thickness) and weighs around 30.0 grams (typical value). The extremely thin, ultra-light design of the module greatly enhances the ease of the integration of the same non use in small devices. The module is equipped with a 54-pin digital RGB interface (supporting 8/24-bit color depth), is SPI communication protocol as well as CCIR601/656 standard signals compatible, and is connected via FPC flexible cable, which provides flexible wiring and strong adaptability. 3.3V (typical value) is the operation voltage and the low power consumption makes the module energy efficient as well as environment friendly.
Founded in 2014 Shenzhen Yitai Optoelectronics Co., Ltd. has become one of the main LCD display industry support suppliers. From 0.96 inch to 7 inch Yitai supplies display modules for downstream enterprises. The monthly production capacity is from 2.5 to 3 million pieces. 20,000-square-meter base, 20 production lines and about 320 people including 28 R&D personnel with more than 20 patented technologies is what the company possesses. Being a national high-tech enterprise and ISO9001 certified, the company also has a ten-thousand-level dust-free workshop and fully automated LCD production lines. Products include over a thousand types of TN/HTN/STN/VA display modules and hundreds of TFT color screens, with customizable LED backlights. After twelve years of industry support experience, the products are subjected to rigorous testing and have a wide application in handheld detectors, portable medical devices, smart home control panels, and IoT terminals, while supporting the domestic industry are also exported to Europe, the U.S., and Southeast Asia.
Customized design and development of a 3.5-inch industrial-grade intercom display for a leading communication equipment manufacturer where the display was a high-brightness IPS fully laminated touch screen meeting IP67 protection standards. Additional features included the optimized shock-resistant frame and the anti-slip texture design, which were specially made for the unique requirements of the industry, thereby achieving stable operation when used in the harsh environment. The implementation of the intelligent light-sensing adjustment technology in the screen allows for automatic changes from day to night display modes based on the surrounding light, greatly improving the level of visibility and the overall efficiency of operations carried out outdoors.
We provided a 4.3-inch charging pile interactive screen tailored to a famous new energy brand that used high-brightness IPS full lamination technology with the screen also meeting IP65 protection level requirements. We primarily worked on the anti-glare features and extended temperature performance range for operations (-30°C to 70°C), so as to be able to see the screen clearly even in extreme weather conditions. The screen also comprises an intelligent light-sensing adjustment system which can), based on changes in light levels during day and night, automatically optimize the screen brightness level, this feature significantly enhances the user experience when operating the device.
To support the global expansion of the leading banks, the client ordered the creation of a 4-inch financial-grade encrypted display equipped with a military-grade IPS full lamination touchscreen that is comfortably compliant with PCIDSS payment security standards. For further increase of security, an anti-peep and tamper-proof enclosure are the main attributes of the devices installed in a bank ATM and other self-service terminals environment.
The display hosts an intelligent ambient light adaptation system that can switch automatically to the best display state according to the branch lighting conditions, quite markedly increasing the customer operation experience and transaction efficiency.
