| P/N | P024C015-V2 |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Active Area(mm) | 36.72*48.96 |
| Pixel pitch(um) | 60*180 |
| Outline Dimension(mm) | 42.72*60.26*2.30 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 12 0'CLOCK |
| Display colors | 65K |
| Brightness (cd/m²) | 300 |
| Contrast Ratio | 600:1 |
| Interface | 8080 MCU 8bit/16bit |
| Back-light | LED Side-light type |
| Driver Ic | ILI9341V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 37 |

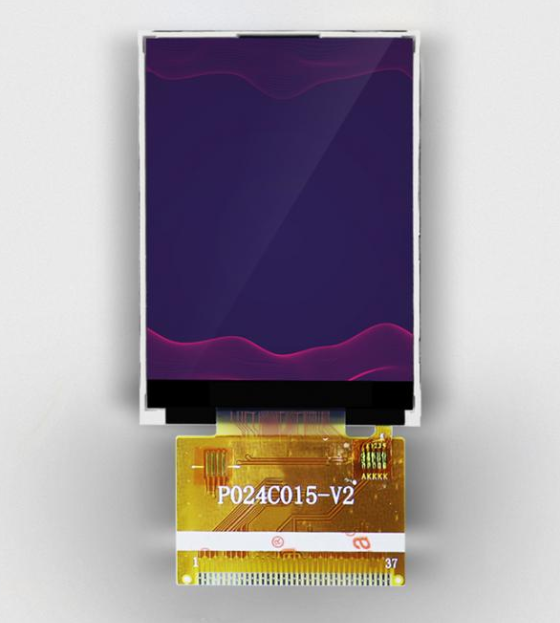

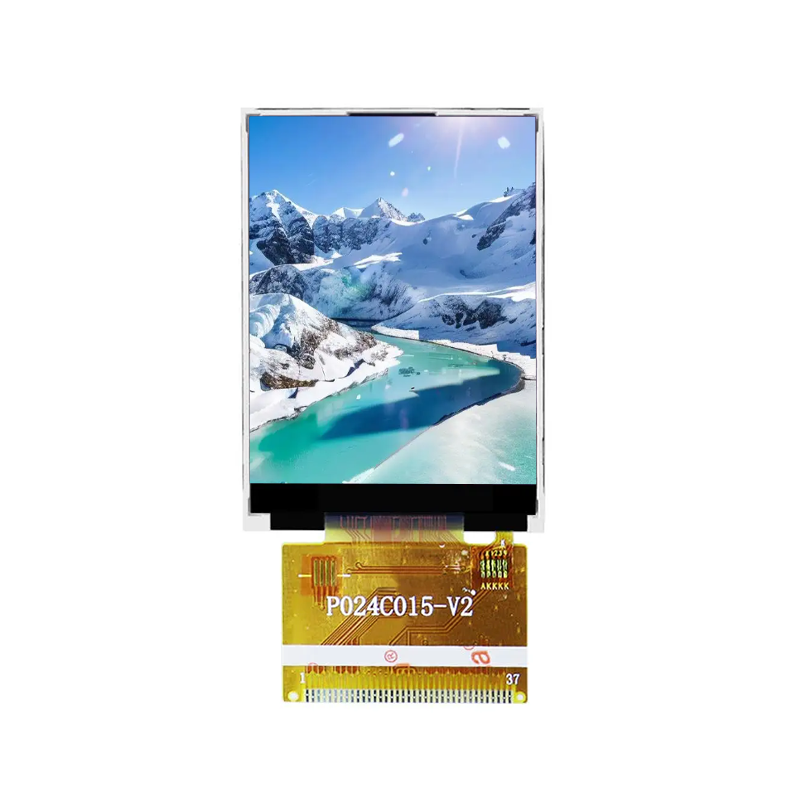

P024C015-V2 is a 2.4-inch TFT LCD module with a resolution of 240×320, presenting QVGA fine image quality within a 36.72×48.96mm display area. With 60×180μm pixel pitch and RGB vertical stripe arrangement, text edges are sharp, and dynamic lines are straight without trailing. Thanks to a brightness of 300 nits and a high contrast ratio of 600:1, the interface remains very clear and visually appealing, especially in indoor environments. The 65K color depth in conjunction with 8-bit mode allows efficient color expression, and status color blocks, trend curves as well as warning indicators all come through clearly and distinctly layered. The Normally Black mode of displaying runs unlit areas as deep pure black so that the device itself is hardly noticeable thanks to the deep black merging perfectly with it.
This module’s main selling point is an ultra-fast 5ms response time. Standard TFT displays usually have response times ranging from 50 to 80 milliseconds, which is enough to cause ghost images and blur when scrolling quickly. Dynamic clarity, however, is so high that it actually equals the level of a 35ms-optimized screen! A keen eye can easily discern clean and precise frames in industrial handheld PDAs list scrolling, portable medical devices waveform scanning, and smart POS menu switching, besides operation being as quick to respond as a typical high-end consumer screen.

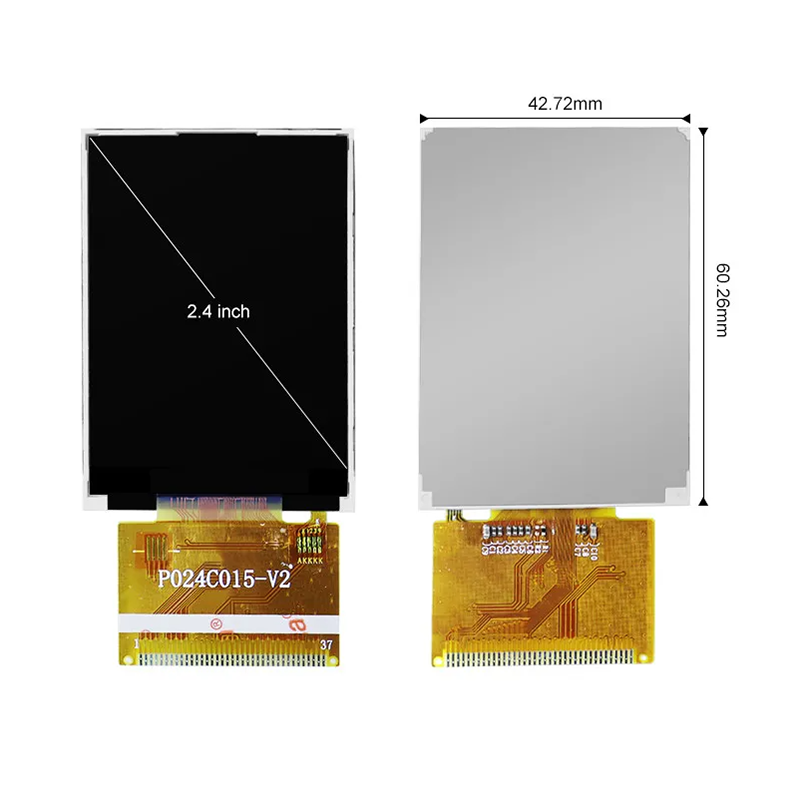

It is highly compact with dimensions of 42.72x60.26x2.30mm and only a thickness of 2.3mm. There is plenty of room left by the LED side-lit backlight for batteries and mainboards. The product can be operated within -20°C~70°C, stored in -30°C~80°C, and has passed tests for high and low temperature, vibration and anti-interference.
Being a national high-tech enterprise and a Shenzhen technology-based small and medium-sized enterprise, Shenzhen Yitai Optoelectronics Co., Ltd. was awarded ISO9001 quality management system certification too. Since its establishment in 2014, the company has accumulated a total of more than 20 patents, with the company's journey always accompanied by these certifications. The company has 20,000 square meters of production space, 20 production lines, monthly output of 2.5 to 3 million units, and employs 320 people with 28 of them being R&D staff. They operate a 10000-class clean room, fully automated LCD production lines and have all these after-sales servicing capabilities and certifications. They offer not only over 1000 types of TN/HTN/STN/VA modules but also hundreds of TFT color screens, LED backlights and panel assembly solutions are available at the same time. Together with the popular embracing of the products by the medical, inspection, smart home, and IoT fields, the company’s great market coverage is also reflected in exports to Europe, America and Southeast Asia.
We developed a 3.5-inch intercom industrial-grade display for a famous communications equipment manufacturer with a high brightness IPS fully laminated touch screen, conforming to the IP67 protection level. For the special requirements of the industry, we re-designed the shock-resistant frame and anti-slip texture. This ensures that the device can be used in harsh environments without any problems. The monitor features intelligent adjustment of brightness through ambient light-sensing technology, doing so automatically, the display can be switched between day and night modes, this greatly improves readability and is expected to boost the performance of users working outdoors.
We designed an interactive user interface for a 4.3-inch charging pile display. As a high brightness IPS laminated product, it meets the requirements of IP65 protection level. We pay extra attention to making the display anti-glare and wide temperature operating performance (-30°C~70°C) suitable for outdoor environment conditions. The panel has an intelligent light-sensing adjustment system and this can automatically switch display brightness to the brightest level depending on day/night lighting condition. The user experience of the operation has therefore been immensely enhanced.
To support the global expansion of the leading banks, the client ordered the creation of a 4-inch financial-grade encrypted display equipped with a military-grade IPS full lamination touchscreen that is comfortably compliant with PCIDSS payment security standards. For further increase of security, an anti-peep and tamper-proof enclosure are the main attributes of the devices installed in a bank ATM and other self-service terminals environment.
The display hosts an intelligent ambient light adaptation system that can switch automatically to the best display state according to the branch lighting conditions, quite markedly increasing the customer operation experience and transaction efficiency.
