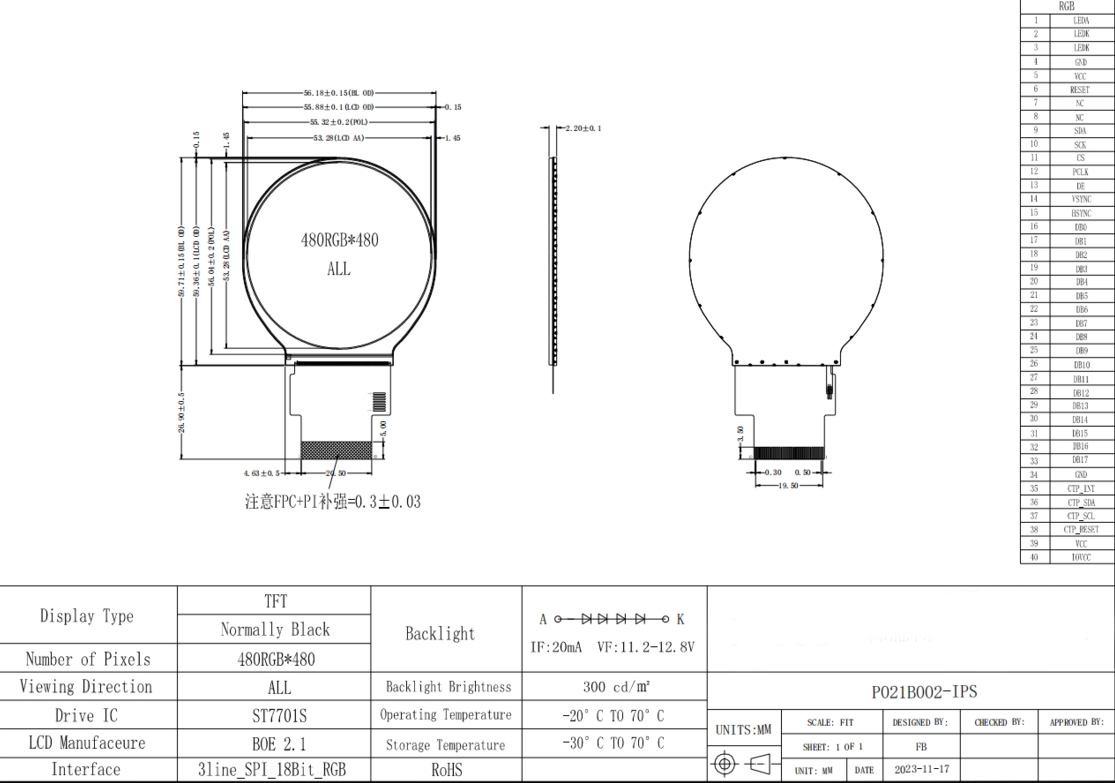

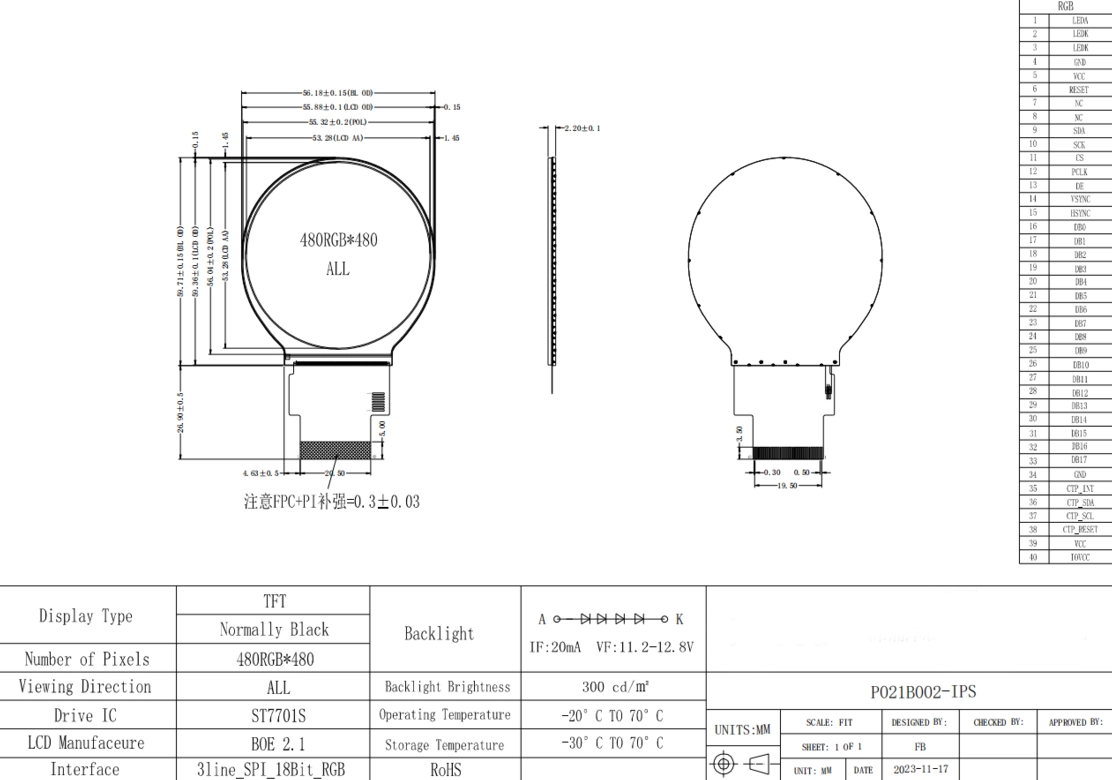

Parameter:
| Model | P021B002-IPS |
| Screen Size | 2.1 inch |
| Number of Pixel | 480RGB(H)x480(V) |
| Display area | 53.28(H)x53.28(V)mm |
| Pixel pitch | 111(H)x111(V)um |
| Pin | 40 pins |
| Outline Dimension | 56.18x59.71x2.2mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262k |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 1000:1 |
| Interface | 3Line SPI 18bit RGB |
| Back-light | LED Side-light type |
| Drive IC | ST7701S |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Features:
1. Small Size: Thanks to the small size, it can be used not only in very compact gadgets but also in models that need only a small screen area. Besides, the round form factor gives the unit an architectural charm that can beautify the final product.
2. High Resolution: The smallness of this LCD unit hasn't affected its ability to reproduce images beautifully. The screen stays clear and colors stay lively, providing for a better user interaction.
3. IPS Wide Viewing Angle: Users can rely on the circular LCD thanks to its built-in tech for wide viewing angles, which allows watching the display from different directions without losing visual quality. It is a great help especially in the scenarios when multiple people are together watching the display.
4. Energy Saving: These LCDs have been conceptualized through the energy-saving angle of the mind and are the result of very efficient power consumption along with performance at its best. This aspect counts for devices on the move as well as those that have a main source of limited energy as the battery that can last longer is a plus.

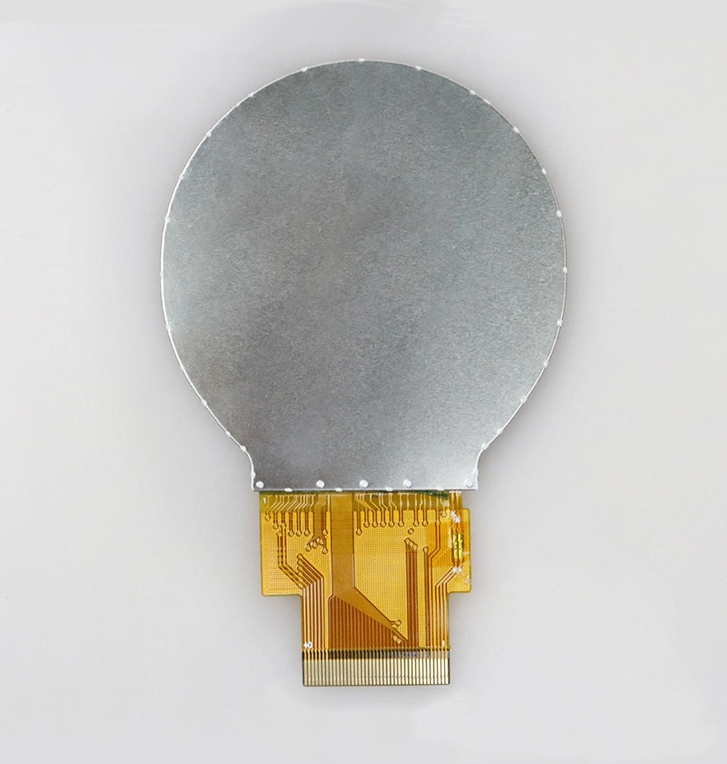

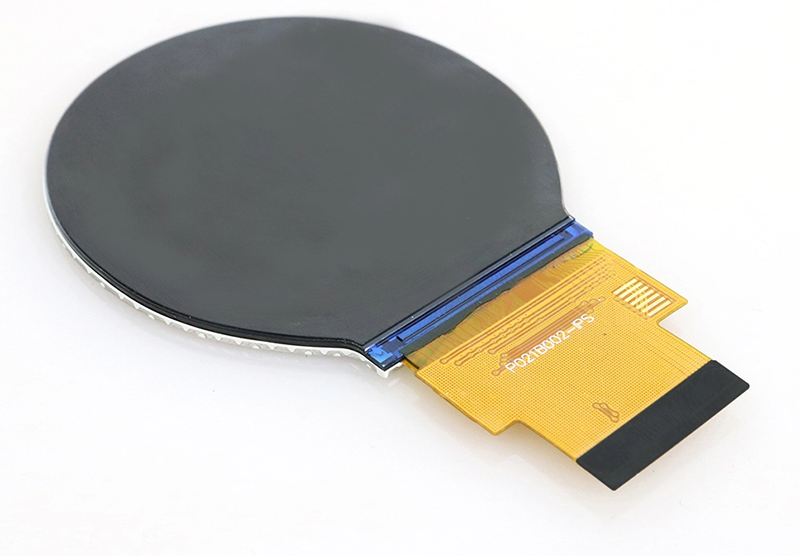

P021B002-IPS is a 2.1-inch round TFT LCD unit that ventures away from the typical rectangular shape, embraces the IPS full-viewing-angle technology, and integrates a built-in ST7701S professional driver chip. It has a square resolution of 480×480 pixels (1:1) and provides a novel circular look, high pixel density, and a dual-interface setup, giving a range of distinct visual interaction possibilities not only for smartwatches but also for round dashboards, smart home knobs, portable medical devices, and consumer electronics that are artistic in nature.
Measuring only 56.18 × 59.71 × 2.2 mm, this tiny and ultra-thin module is 2.2 mm thick, so it won’t be a problem to put it inside the covers of devices that aim for thinness in design. The FPC flex cable is highly capable of bending and wiring decoratively is possible, making it suitable for the internal structural design that is complex. The module is quite adaptable to the outside world with environmental conditions, having a working temperature range of -20℃ to 70℃ as well as a storage temperature range of -30℃ to 80℃, which helps in stable functioning even when there are temperature changes indoors and outdoors or changes in seasons through the year.
This item is RoHS certified environmentally, packed with green and eco-friendly materials, and in line with global export standards. Given its distinctive round shape, 480×480 high res, dual-interface setting, and IPS full-viewing-angle, P021B002-IPS has attracted attention in the 2.1-inch creative display space as a good mix of both style and yield.
Manufacturing capability is the foundation of Shenzhen Yitai Optoelectronics Co., Ltd. Our wholly owned factory covers an area of 20,000 square meters and maintains 20 well-organized production lines. We have the capacity to produce between 2.5 and 3 million units per month to meet large volume orders. Besides more than 320 well-trained operators, there is also a 28-person R&D team focused on technology innovation and a 12-year experience in display manufacturing.
The Class 10,000 cleanroom offers a sanitized environment for high-precision manufacturing and the medium-to-high-end fully automated LCD production line provides quality stability and reliability for each display. Besides being certified with the ISO9001 quality management system, the company owns over 20 patents, has been awarded as a national high-tech enterprise, and is recognized as a Shenzhen technology-based small and medium-sized enterprise. The product range includes over a thousand TN/HTN/STN/VA LCD panels and more than a hundred TFT color screens. LED backlights are a major feature of these displays for deep customization. Most products ranging from 0.96-inch to 7-inch are designed for industrial and consumer markets. The products have durability tests and are available both on the domestic and the international markets.

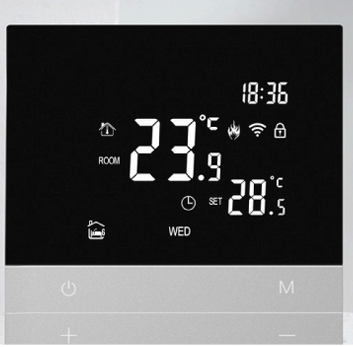

We have designed a 3.5-inch high-precision temperature control display for a famous HVAC brand fully utilizing quiet-viewing, IPS technology and full lamination processing. This display also supports multi-touch operation. In line with the home environment, ultra thin bezel and rounded corner are applied to the display so that it blends gracefully into modern interior decoration. Displaying work is undeniably important and to that end the ambient light intelligent adjustment function is integrated into the screen so that it can automatically optimize the display brightness and contrast based on the lighting conditions indoors. It also helps with the high significance of enhanced user experience and energy conservation.
We customized the development of a 3.5-inch industrial-grade intercom display set for a famous manufacturer of communication equipment. This project involved a high-brightness IPS fully laminated touch screen. Besides, it meets the IP67 specification for dust and water resistance.A shock-resistant frame and an anti-slip texture design were optimized for the special requirements of the industry. In this way, the operation will remain uninterrupted even in very harsh conditions.The feature is based on automatic switching between day and night display modes according to surrounding light. In this way, not only the visibility is enhanced but the efficiency of the operator is also increased during outdoor work.
Customized a 4.3-inch industrial-grade instrument display for a famous power equipment manufacturer, using high-contrast IPS full lamination technology and compliant with IP65 protection level. The dustproof and waterproof structure and the wide temperature design (-30°C ~ 70°C) have been optimized for the power industry's special needs, and the instrument can operate stably even in such complicated environments as substations. The screen features an adaptive brightness adjustment system that can automatically optimize display effects mainly according to ambient light, which greatly helps in reading the data and enhances security during the outdoor inspection.
