| Model | P128H002-IPS-CTP |
| Screen Size | 1.28 inch |
| Number of Pixel | 240RGB(H)x240(V) |
| Display area | 32.40(H)x32.40(V)mm |
| Pixel pitch | 0.135(H)x0.135(V)mm |
| Pin | 15 pin |
| Outline Dimension | 42.50x42.50x3.60mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 1100:1 |
| Interface | 4W SPI |
| Back-light | LED Side-light type |
| LCM Drive IC | GC9A01 |
| CTP Drive IC | GST816T |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |

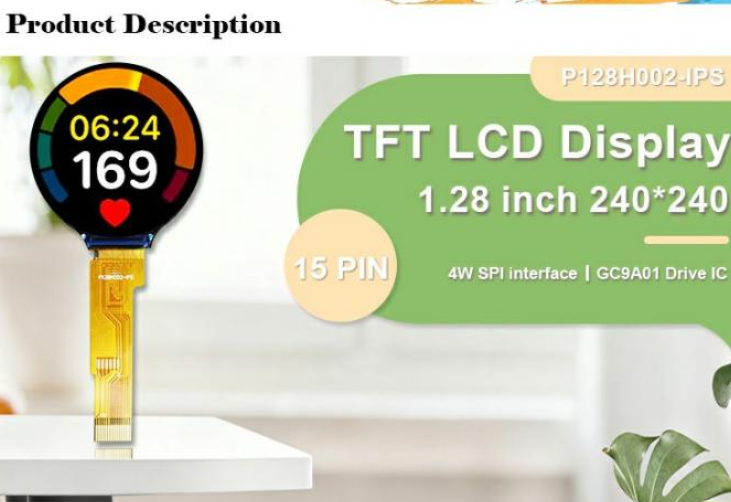

1.28 Inch IPS Circular LCD Display is a new and small display module which can be used for different electronic projects. Besides having a tiny size and great picture quality, the circular LCD is gaining more and more popularity in the tech-savvy world.

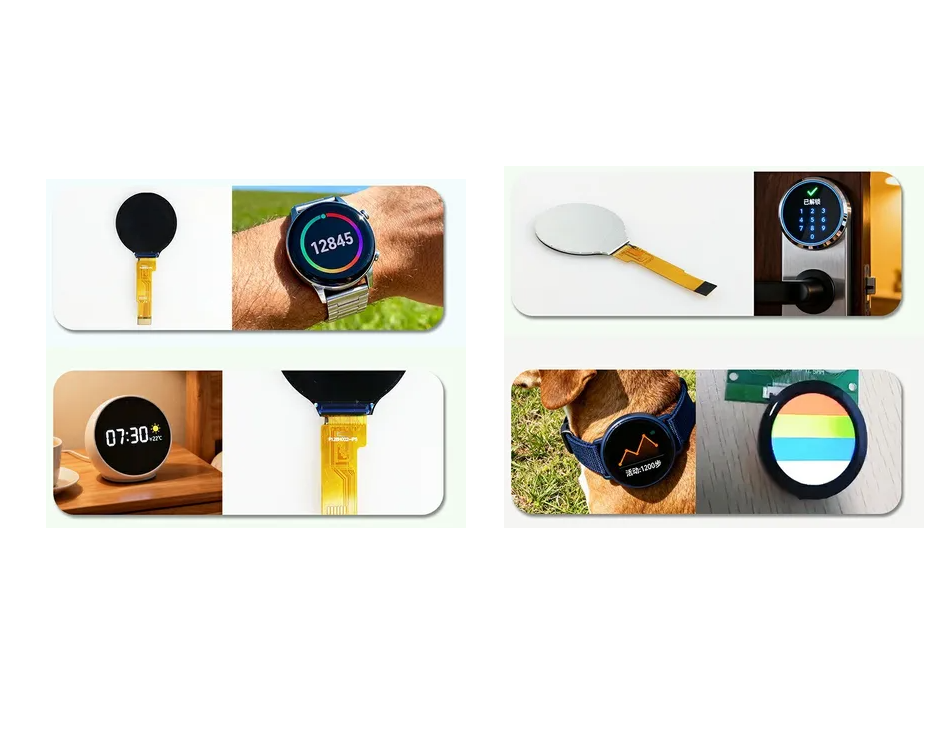

The P128H002-IPS-CTP is a 1.28-inch TFT LCD module which is mainly aimed at smart wearable and miniature circular interactive terminal markets. It features a true circular IPS panel, integrated GC9A01 display driver chip, and GST816T capacitive touch IC, packing a 240×240 pixels resolution. High-contrast display, simple interface, and touch-sensitive, it delivers an integrated visual-touch solution performing at its best for the smallest-space smart electronic devices like wristwatches, smart locks, pet locators, portable devices of a healthcare nature, and controllers of a circular smart home.

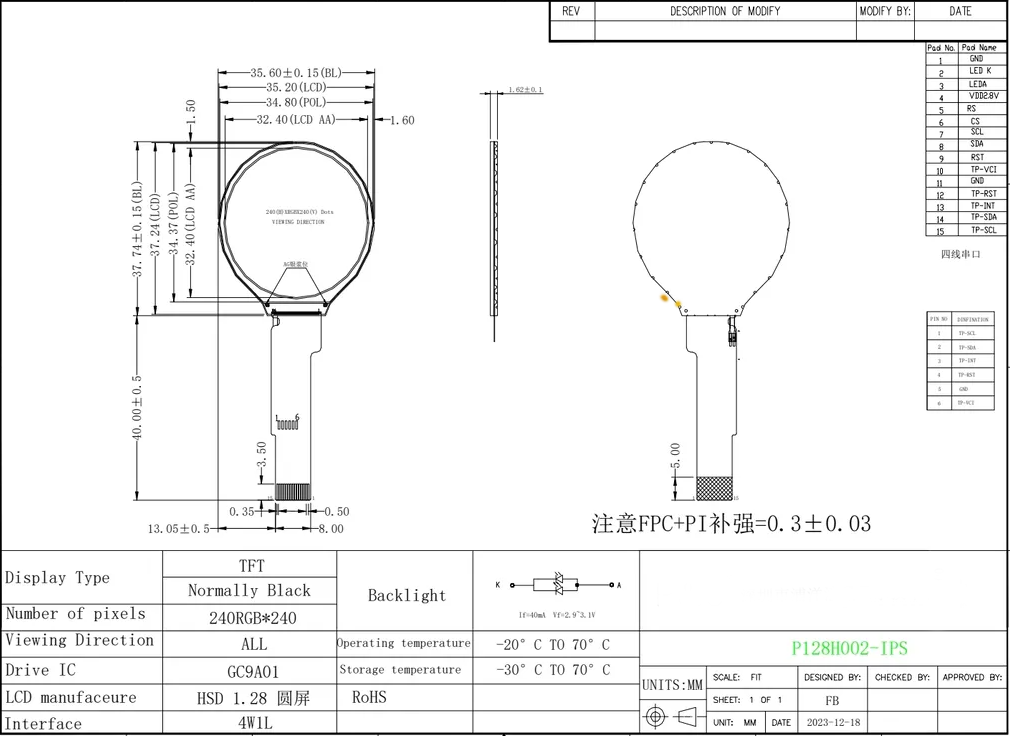

The diameter of the module's effective display area is 32.40mm and the full circular screen totally gives freedom to UI design. The pixel pitch is 0.135mm×0.135mm, RGB stripe pixels are vertically arranged and can display 262K colors. The 240×240 square screen getting cropped into a circle still has a very high pixel utilization. UI elements like watch face scales, circular progress bars, and central data can naturally extend along the circle to give a full and symmetrical visual result that is aesthetically attractive and also a very good information density, quite far from the same-size square screens. IPS full-view technology guarantees the display is free of color shifting and brightness decreasing when viewed from any angle. Whichever way the user raises their gesture of hand to wrist, side glance, or looking down, the time, heart rate, and notification info will be in clear and true color, in line with the different postures of smart wearable scenario usage.
"Customer First, Quality Foremost" has been the motto that Shenzhen Yitai Optoelectronics Co., Ltd. has stayed true to for the past twelve years. It is a serious commitment to our customers that each and every display panel that gets rolled out from the factory is subjected to stringent testing procedures like high and low temperature cycling, mechanical vibration, and electromagnetic interference resistance.
The organization has a self-owned factory, covering an area of 20,000 square meters, which includes a Class 10,000 cleanroom. The factory is equipped with 20 mid-to-high-end fully automated LCD production lines having a monthly capacity of 2.5 to 3 million units. More than 320 staff members are performing their duties in the company, and a research & development team of 28 members is continuously working on improving quality solutions.Besides being ISO9001 certified and having more than 20 patented technologies as quality assurances, also, the company has a national high-tech enterprise qualification which recognizes its technological capabilities.
With a range of more than 1,000 TN/HTN/STN/VA products, a few hundred TFT color display units, and a wide range of customized LED backlight services, this enterprise is strongly oriented towards the market of 0.96-inch to 7-inch display units. Our product line is extensively used in handheld detectors, portable medical instruments, smart home control panels, and IoT devices, winning favor not only at the local level but also internationally, thanks to their dependable quality.

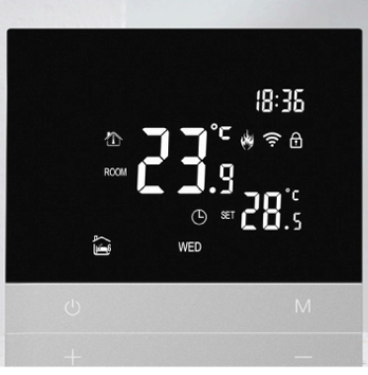

Developed a high-precision temperature control display with a screen size of 3.5 inches for a leading HVAC brand using full-view IPS full lamination technique, supporting multi-touch operation. Design-wise, we used an ultra-thin bezel, and rounded corner design according to home environment, matching perfectly with the style of modern interior decoration. The device carries ambient light intelligent adjustment function, which automatically optimizes the screen brightness and contrast according to indoor lighting, thus enhancing user's operation experience and energy saving

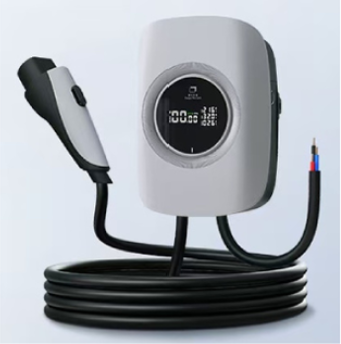

Made the 4.3-inch interactive screen for the charging pile of the brand new famous energy brand using the latest high-brightness IPS full lamination technology. The product achieves the protection level of IP65 and the production concerned the outdoor performance of the anti-glare design and wide temperature operation (-30°C~70°C). The screen is also equipped with the intelligent ambient light system that can be programmed automatically to optimize the display brightness between day and night light changes it. User interface experience is excitingly enhanced.
Designed a 4.3-inch industrial-grade instrument display panel for a well-known power equipment maker using high-contrast IPS full lamination technology, and the product meets IP65 protection level requirements. Besides the dustproof and waterproof structure, we also provide a broad temperature range design (-30°C to 70°C) as part of the special feature of power industry. The display is equipped with a brightness level adjuster that can automatically align itself with the ambient light, this function greatly helps outdoor inspection by encouraging data reading efficiency and operational safety.
