Parameter:
| Model | P035B084-IPS |
| Screen Size | 3.5 inch |
| Number of Pixel | 320RGB(H)x240(V) |
| Display area | 70.08(H)x52.56(V)mm |
| Pixel pitch | 0.073(H)x0.219(V)mm |
| Pins | 54 pins |

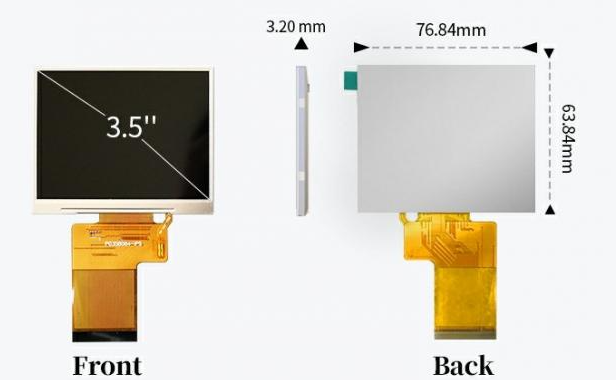

| Outline Dimension | 76.84x63.84x3.20mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 16.7M |
| Luminance(cd/m2) | 350 nit |
| Contrast Ratio | 1200:1 |
| Interface | 3Line_SPI_24BIT_RGB |

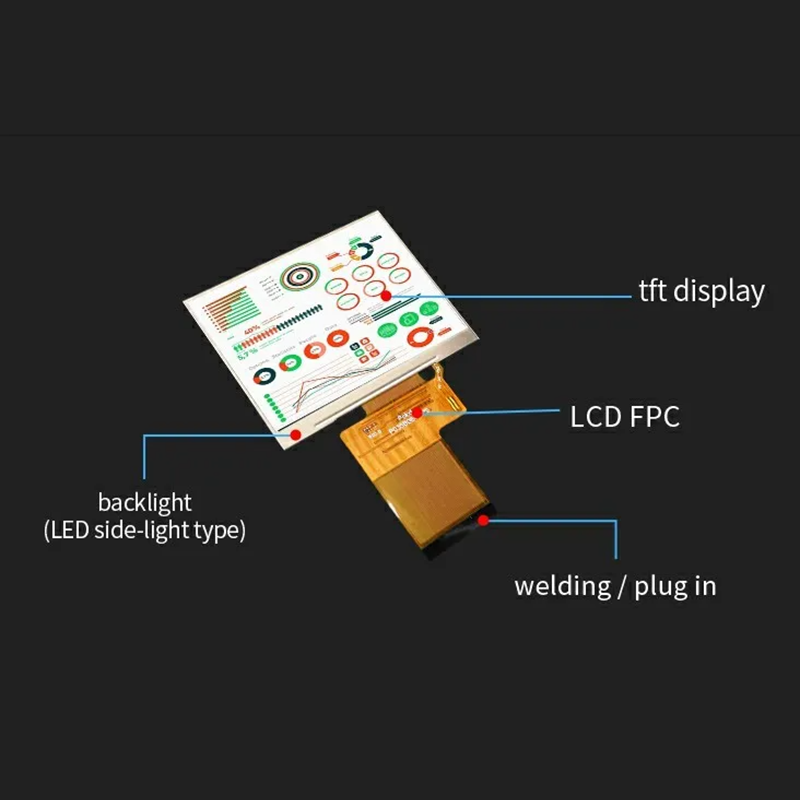

| Back-light | LED Side-light type |
| Drive IC | ST7272A |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |

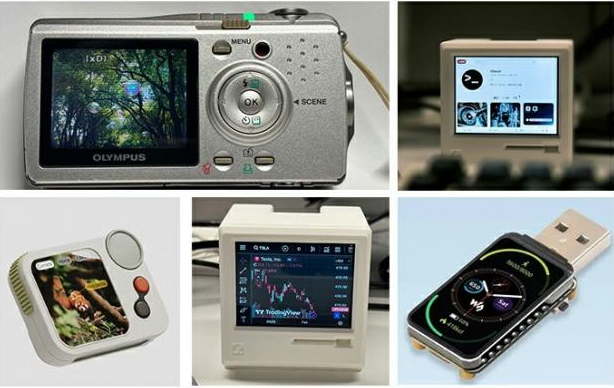

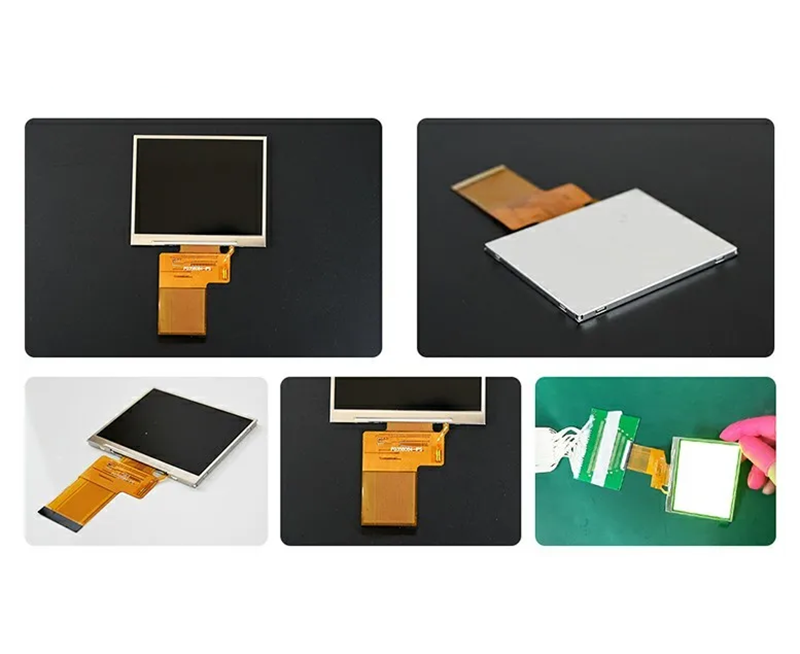

P035B084-IPS is a 3.5-inch TFT LCD module that uses IPS full-view technology and is equipped with a high-performance ST7272A driver chip. The module features a resolution of 320×240 pixels (QVGA) and implements a new screen technology capable of displaying true color images. It can produce up to 16.7 million colors and also has an ultra-high contrast ratio. Other features include a dual-mode interface architecture, making it an excellent solution for professional-grade visual outputs of industrial control panels, portable instruments, retro gaming consoles, car navigation systems, and high-end consumer electronics.
Besides a compact size of 76.84mm × 63.84mm × 3.20mm, it has a simple structure and excellent FPC bending performance, making it extremely easy to flexibly arrange inside various devices. The outstanding environmental adaptability feature has the flexibility to run in conditions such as temperature range from -20°C to 70°C for operation and temperature range from -30°C to 80°C for storage. Stable performance under harsh conditions with significant temperature and humidity fluctuations in industrial workshops, vehicle environments, and outdoor sites is attainable. The product is manufactured from environmentally friendly materials and meets the global export regulations. Producing 16.7 million true colors, 1200:1 ultra-high contrast ratio, IPS full-view angles, and dual-mode interface, P035B084-IPS has become a reference product for 3.5-inch mid-to-high-end display solutions providing a compromise between professional image quality and industrial reliability.
We offer a wide range of lcds but the one presented here is only a part of our spectrum. If you are looking for other lcd types, do not hesitate to send us an Inquiry. We are always happy to talk!
The options available include other sizes, resolutions, interfaces, touchscreen and any feature that you may require. In addition, please do not hesitate to contact us with any questions you may have. We will be happy to respond to you shortly.
Technological innovation is the main engine that pushes Shenzhen Yitai Optoelectronics Co., Ltd. to move forward constantly. The core team made up of 28 experienced R&D personnel has cumulatively obtained more than 20 patents, continuously injecting technological momentum into their products. Founded in 2014, the company has been a long-standing member of the Shenzhen community for over a decade and has developed into a national high-tech enterprise. Inside its 20,000-square-meter production facility, a ten-thousand-level dust-free purification workshop and 20 fully automated LCD production lines run in conjunction with each other which together yield a monthly production capacity of 2.5 to 3 million units. The 320-person staff work effectively as a team and every single aspect is controlled by the ISO9001 quality management system. The extensive product range includes more than a thousand TN/HTN/STN/VA display products and over a hundred TFT color LCD screens with options for customized LED backlighting available to meet personal requirements. Specializing in small-sized displays ranging from 0.96 inches to 7 inches, all the products are subjected to the tests of high and low temperature, vibration and anti-interference in order to guarantee stable operation even in the most complex environments. The products are widely used in medical, inspection, smart home and IoT fields and are exported to Europe, the United States and Southeast Asia.
Our 2.8-inch minimalist clock display project was a customized development for the famous home brand. Using low-power IPS full lamination technology, the display supports clear readability at 180° wide viewing angles. Aimed at bedroom use, the ultra-thin borderless design along with the soft light guide structure were perfectly matched with the modern home aesthetic through optimization. The display features an intelligent light-sensing adjustment system that is capable of switching display modes automatically as the daylight changes. At night, the display mode switches automatically to soft light so that time can be seen clearly without disturbing sleep quality.
Designed a 4.3-inch charging station interactive screen for a well-known new energy brand. The screen uses high-brightness IPS full lamination technology and is protected against dust and water (IP65). Antiglare features and performance over a wide temperature range (-30°C~70°C) have been optimized specifically for complex outdoor environments and allow the display to remain clear in all weather conditions. The screen features an intelligent light-sensing adjustment system able to optimize display brightness according to changes of day and night considerably enhancing the user's operation experience.
Customized development of a 4.3-inch industrial-grade instrument display for a well-known power equipment manufacturer, using high-contrast IPS full lamination technology, and meeting IP65 protection level requirements. We have fine-tuned the dustproof and waterproof structure and wide temperature design (-30°C to 70°C) to suit to the particular needs of the power industry, thereby guaranteeing reliable performance in complicated settings like substations. The screen combines an adaptive brightness control system that can, on its own, choose the best display effect according to the lighting around it, which is a big step in making data reading during the outdoor inspection process more effective and safer.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
