Product description:
1.69'' TFT LCD is an adaptable display technology capable of presenting more pixels, precise colors, reduced consumption of electricity, and it also is small enough. Due to these features it is quite a "go-to" solution for the scenario of production of wearable items, industrial apparatus, medical gadgets and other kinds of things where the size of the display should be small and the quality of the display is high.
Parameter:
| Model | P169H002P-CTP |
| Screen Size | 1.69 inch |
| Number of Pixel | 240RGB(H)x280(V) |
| Display area | 27.97(H)x32.63(V)mm |
| Pixel pitch | 0.11655(H)x0.11655(V)mm |
| Pins | 18 Pins |
| Outline Dimension | 33.13x41.13x3.8 mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 500 nit |
| Contrast Ratio | 1000:1 |
| Interface | 4-line SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789T3 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |

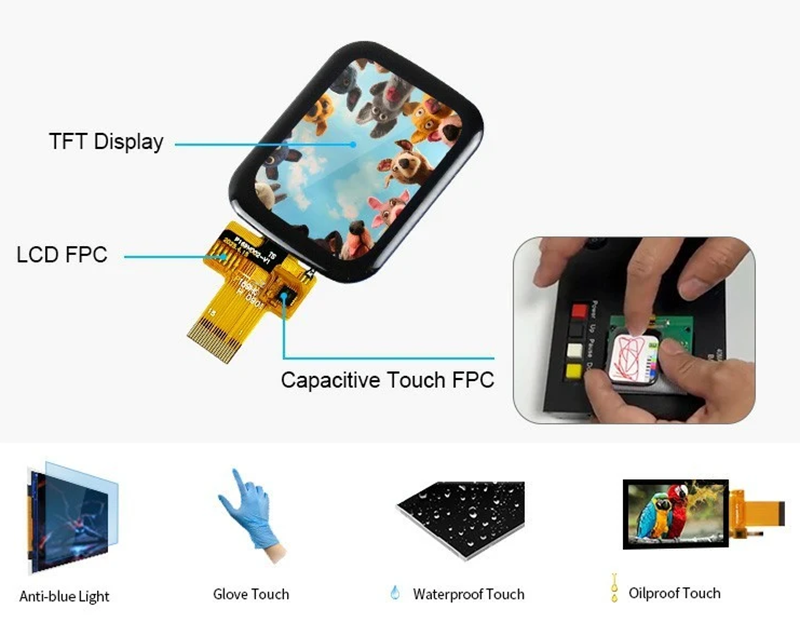

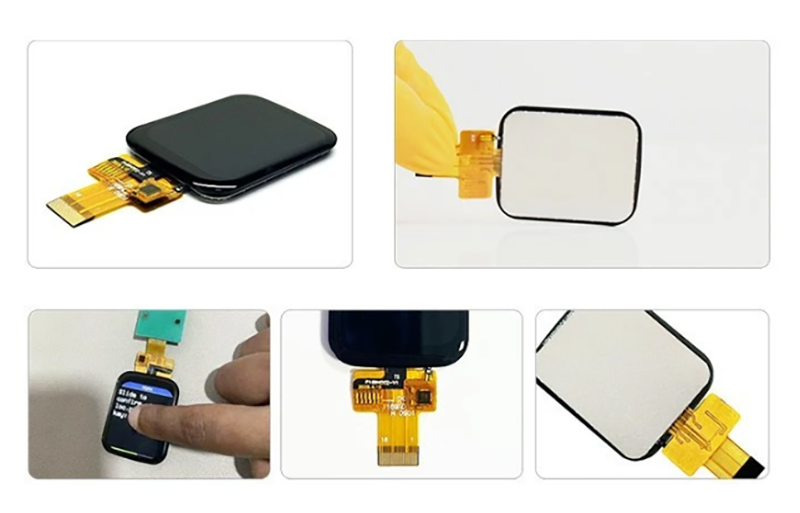

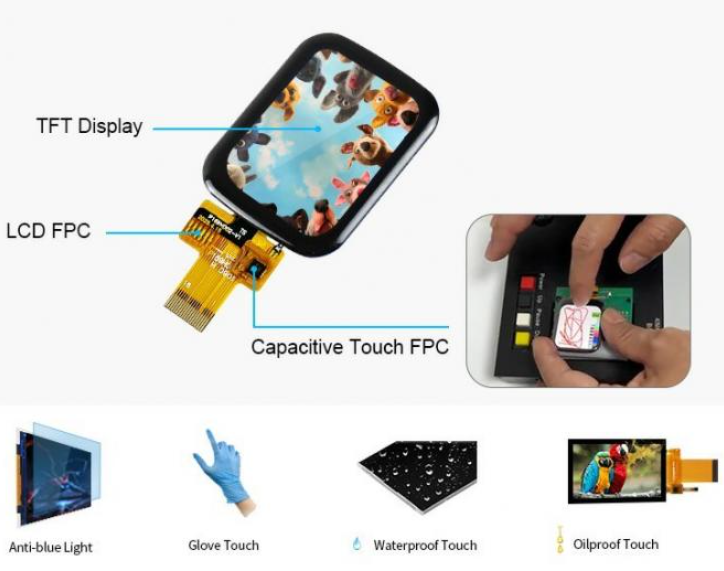

With its 1.69-inch diagonal, the P169H002P-CTP is a TFT LCD panel for smart wearable and micro-interactive terminals. It comes with an embedded performance-enhanced ST7789T3 driver chip and the capacitive touch is integrated in the design. Moreover, it has 240×280 pixels resolution. It supports the integration of a compact, high-brightness, and visually touch solution with ultra-high brightness, full-view IPS, and simple minimal SPI interface, thus smartwatches, health monitoring wristbands, portable medical devices, and small IoT terminals can be equipped with this product.

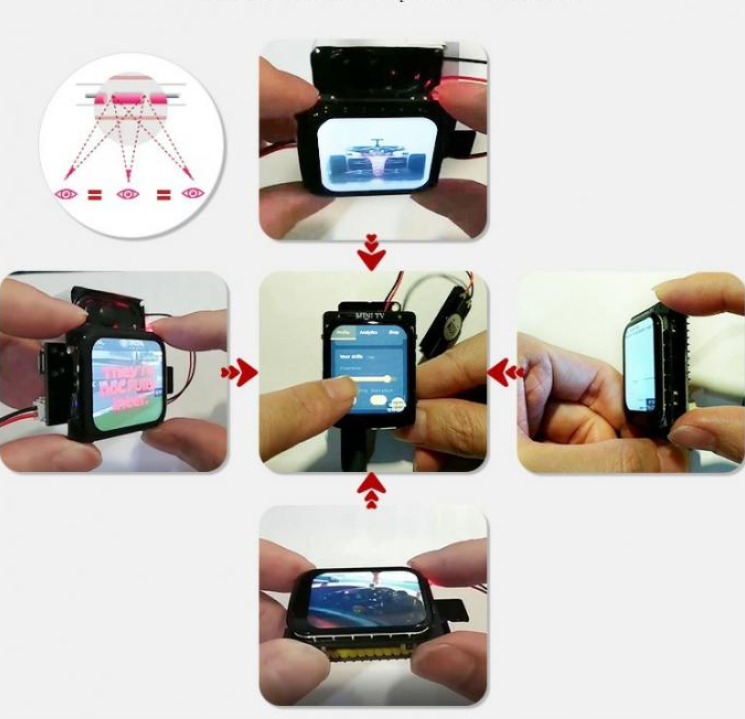

The display area of this module is 27.97mm (Horizontal) × 32.63mm (Vertical). Besides, the pixel pitch is 0.11655mm × 0.11655mm whereas the RGB vertical stripe pixel arrangement helps support 262K rich colors. IPS full-view technology also helps that one can watch the display from any side, angle without any color change or brightness fading; the viewing angle problems of old Lucas has been totally removed. The watch face interface and current notification information stay very distinct and clear all the time irrespective of the user raising a wrist to serve, viewing from the side, or looking from the top. This way, the display matches well with all possible wristwatch postures of the wearer.
In 2014, the company Shenzhen Yitai Optoelectronics Co., Ltd., was started in the innovation hub of Shenzhen. The company has made significant progress over the last ten years of trials and development and has become a national high-tech enterprise with its own factory from the original startup team. At present, the company has more than 320 employees working hard in a 20,000-square-meter modern facility, having 20 production lines that produce 2.5 to 3 million display panels monthly, thus its production capacity is leading the industry. Twenty-eight senior R&D personnel are in line with the latest technological trends and have been able to create more than a thousand TN/HTN/STN/VA display products and one hundred plus TFT color LCD screens whereas the LED backlight customization services cover different usage scenarios. The ten-thousand-level cleanroom supports the mid-to-high-end fully automated LCD production line, while the ISO9001 quality management system and over 20 patented technologies form a stronghold of quality. The products are focused on small sizes from 0.96 to 7 inches and still have to undergo high and low temperature, vibration, and anti-interference tests, besides which they are used in handheld detectors, portable medical devices, smart home panels, and IoT terminals, and have a good market in Europe, America, and Southeast Asia.
We developed a 2.8-inch simple clock screen with a minimalist design for a famous brand at home. This product was crafted with low-power IPS full lamination technology that supports a clear display even from 180° very wide viewing angles. The ultra-thin borderless design and soft light guide structure were worked on in detail so that they would be in line with the aesthetics of modern homes based on bedroom scenarios. The screen has the feature of an intelligent light sensor that adapts display modes as daylight changes and it also comes with a night soft light mode that ensures clarity of time while not disturbing the sleep.
We designed a 3.5-inch industrial-grade intercom touch display for a famous communications equipment manufacturer. We met the high brightness IPS fully laminated touch screen and IP67 protection requirements. We developed the shock-resistant frame and anti-slip texture that best fit the specific needs of the industry, keeping in mind that the device must work reliably in harsh environments. The screen incorporates intelligent light-sensing adjustment technology that is able to switch automatically between day and night display modes according to ambient light, which greatly increases visibility and efficiency of outdoor work operations.
Our customization results in a 4.3-inch industrial-grade instrument display for the power equipment manufacturer that is well known. Using the high-contrast IPS full lamination technology, the display achieved meeting the IP65 protection level. The special needs of the power industry such as dust-proof and water-proof structure and wide temperature range (-30°C to 70°C) were taken into consideration, and the product was suitably optimized ensuring stable operation even in complex environments like substations. The screen has an adaptive brightness adjustment system that can automatically optimize the display according to the ambient light, which helps a lot during outdoor data reading and inspection for safety.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
