The Medical LCD Display is a color-active matrix thin-film transistor liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 2.4 inch then our lcd is just what you need. Add 240 * 320 resolution display to your product and boost the design.Brightness from the QC department is tested to be 350 nits at the normal use of display.
| P/N | P024C009 |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Active Area(mm) | 36.72*48.96 |
| Pixel pitch(um) | 51*153 |
| Outline Dimension(mm) | 42.72*60.26*3.40 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 12 0'CLOCK |
| Display colors | 262K |
| Brightness (cd/m²) | 350 |
| Contrast Ratio | 600:1 |
| Interface | 3WSPI/4WSPI/8bits /16bits |
| Back-light | LED Side-light type |
| Driver Ic | ILI9341V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 40 |

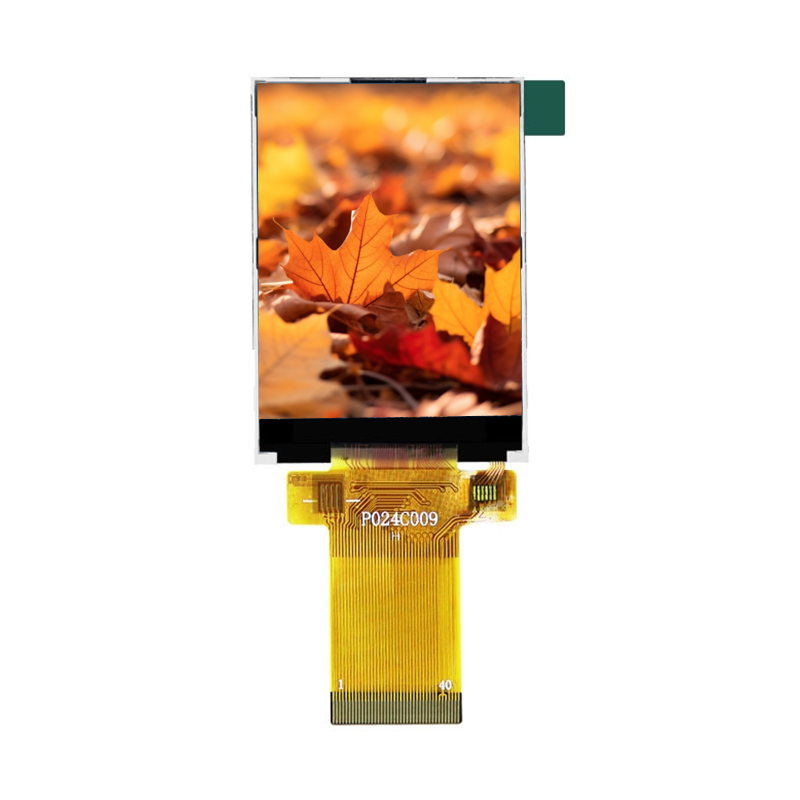

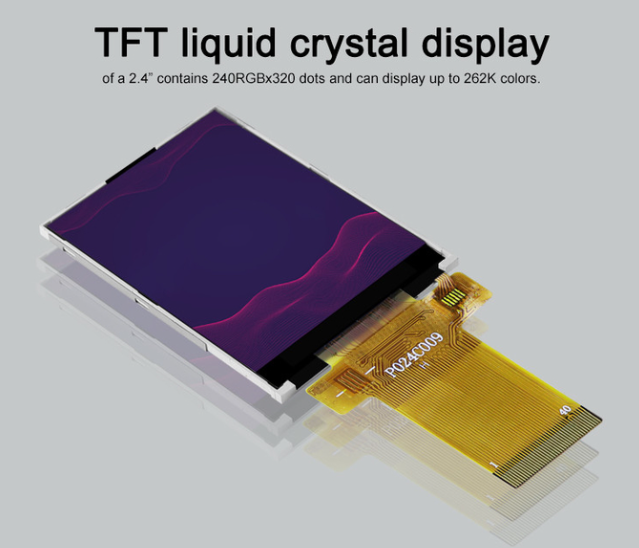

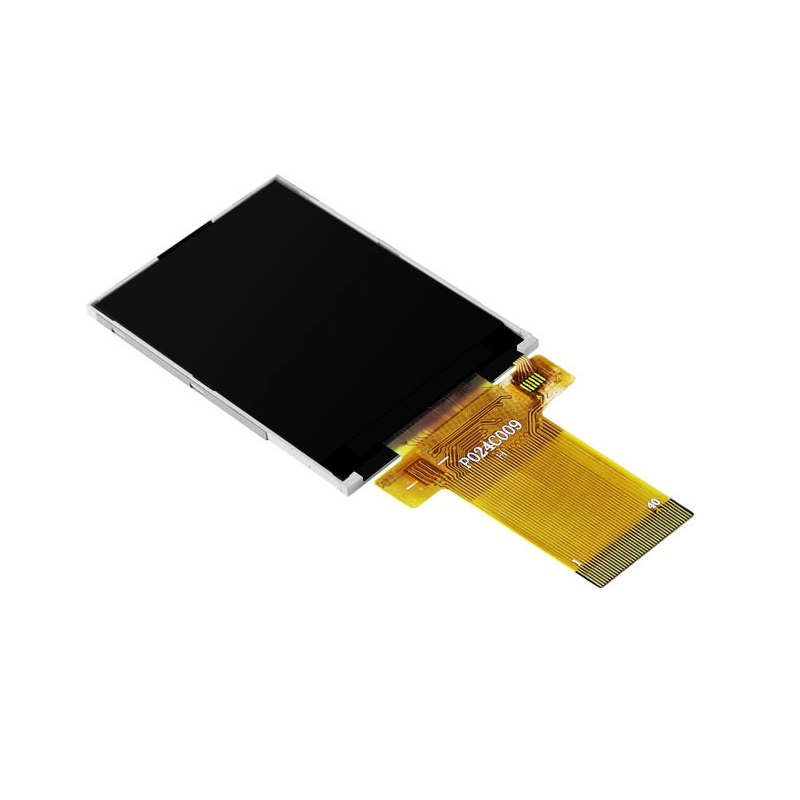

This (2.4-inch) TFT LCD display module, model P024C009, supports 262K color as a core feature highlighting its wide range of color capacities.Specifically targeted for embedded applications, this high color reproduction and dynamic response module contain 240 RGB X 320 pixels with vertical RGB stripes arrangement where one pixel has size 51 X 153 microns.Although it is a small 2.4" display, the brightest colors and clarity, it manages crisp text edging as well as clear icon details so as to precisely communicate visuals- portable device information displays shall find it invaluable.The active display area size is 36.72 X 48.96 mm, while outside measurement is only 42.72 X 60.26 X 3.40 mm.Its minimalist and slim build allows carts to go further by inserting units into compact devices with room constraints.
Agility in reacting to market fluctuations is the inherent characteristic of Shenzhen Yitai Optoelectronics Co., Ltd. It normally takes 4 weeks from getting an order until sample delivery; alongside that, they can muster up a flow of around 3 million pieces each month with 20 production lines, so that they can handle an increase quickly for larger quantities.The 320-person group including 28 R&D workers leads an agile culture in their 20,000-square-meter facility based on 12 years experience that allows them to guarantee a highly responsive speed.The company, started in 2014, has gone on to attain ISO9001 certification and at present presents over twenty of its patented technologies along with being qualified national high-tech enterprise.
To workflow agile efficiency are complemented by 10,000-level cleanroom operation and fully automated LCD production lines. The company has thousands of TN/HTN/STN/VA products, hundreds of TFT color screens. LED backlights can be made according to customers' specifications while care is taken to focus on market areas 0.96-inch to 7-inch.All products pass through tests and are generally employed in handheld inspection, portable medical devices, smart home systems, and IoT terminals.Agile response means that domestically and internationally products can sell well.
Development and personalization of a minimalistic 2.8 inches clock display for a popular home brand, featuring ultra-low-power IPS fully laminated technology with the ability to support clear display even from 180° wide viewing angles. Alongside the main purpose of the product being a bedroom scenario, we took the liberty of accentuating the incredibly slim and borderless design along with the soft light guide component to be in total harmony with a contemporary lifestyle. The display also has an embedded sophisticated illumination sensor regulation mechanism that allows it to change display modes in response to day light changes and to switch soft light mode at night so that the time can be easily seen without disturbing one's ability to fall asleep.
Created a specialized 3.5-inch industrial intercom screen for a famous communication equipment manufacturer. A high-brightness IPS fully laminated touch panel, capable of withstanding the requirements of IP67 protection, was employed. We made design changes in the shock-resistant frame and the anti-slip texture to cater to the peculiar needs of the communication industry, thereby ensuring faultless working of the firm even under the most severe/freezing conditions. The device with light adjusting recognition installation can not only detect but also very accurately switch the day/night modes dependent on the surrounding light ambiance thereby very partly that greatly facilitates visibility, work continuity and efficiency while being outdoors.
Made a customized 4.3 inch, industrial-grade display for instruments for a power equipment brand of global repute. The product went through the usual rigorous amelioration process of the employment of high contrast IPS full lamination technology getting the device to comply with IP65 protection level requirements. Gear changes were made including dusty and waterproof structure and working of wide temperature ability (-30°C to 70°C) so as to meet the special needs of the power industry. These aimed at substations too which usually are quite complicated functioning. The panel has an integration of brightness control system which can, based on the environmental light, automatically select the best display for work thus leading to near, if not very good, optimal usage of data reading as well as operational safety to the extreme outdoor inspections.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
