Product Details
P/N: | P022H002 | Size (inch): | 2.2 |
Resolution: | 240*320 | Brightness (cd/m²): | 300 |
Interface: | 4 Line SPI | Display Area: | ST7789V |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | 20 cm * 30 cm * 40 cm | Delivery Time | 5-8 working days |
Payment Terms | T/T, L/C, Credit card, PayPal | Supply Ability | 500,000 piece per week |
Product Description

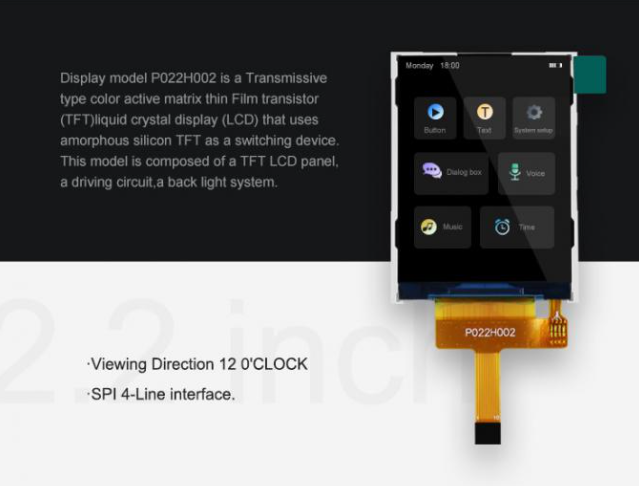

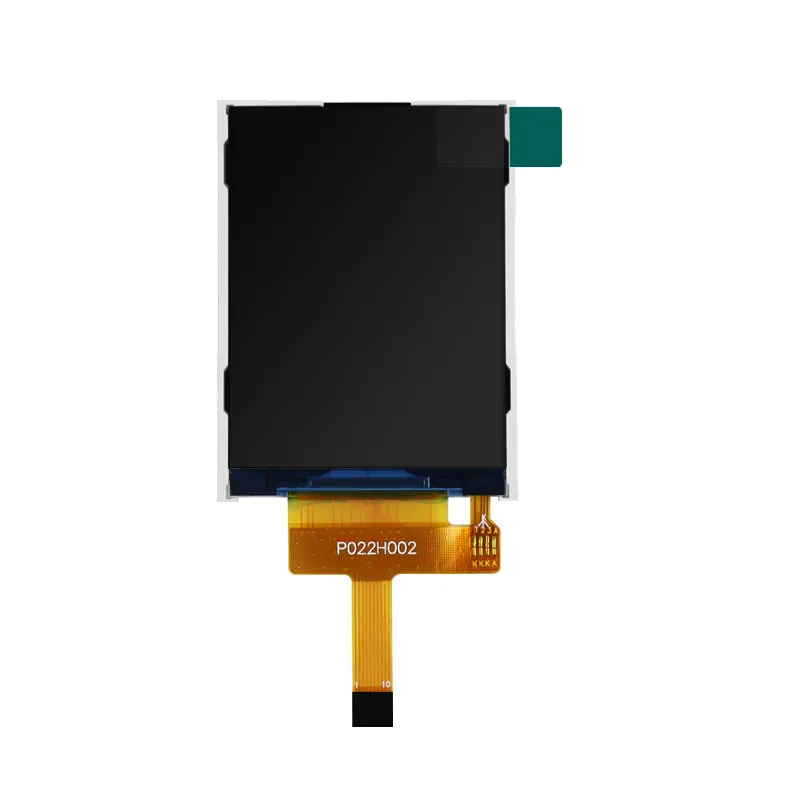

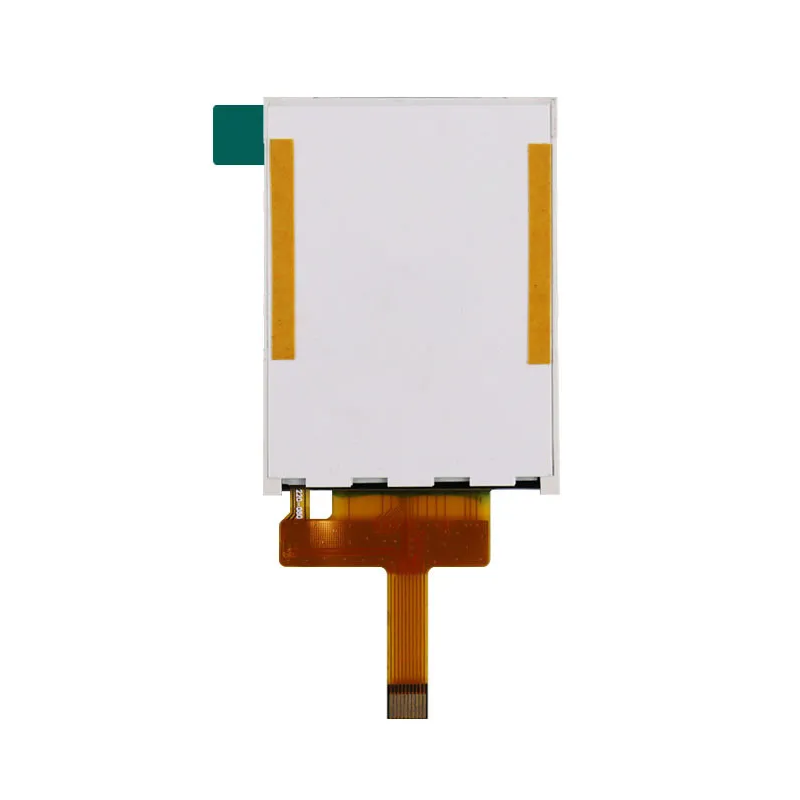

What can we expect from this one? Before this question it is better to know some information about this IPS TFT LCD Display. Screen size is 2 inch. A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 240 * 320, clear enough for most scenes to be used. 300 nits allow this lcd to work well indoors.
| P/N | P022H002 |
| Size(inch) | 2.2 |
| Resolution | 240*320 |
| Active Area(mm) | 33.48*44.64 |
| Pixel pitch(um) | 139.5*139.5 |
| Outline Dimension(mm) | 40.10*54.76*2.30 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally White |
| Viewing Angle | 12 0'CLOCK |
| Display colors | 262K |
| Brightness (cd/m²) | 300 |
| Contrast Ratio | 500:1 |
| Interface | 4 Line SPI |
| Back-light | LED Side-light type |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 8 |
| Pin Number | 10 |
Supported by MCU 8BIT, this type of TFT LCD can be used in many applications. ST7789V is the driver IC of the tft lcd. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.
Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.
Q: How you ship the goods?
A: Usually we will ship the sample by fast delivery. No matter how we will take the best shipping method you agree with. Shipping cost should pay by your side, please kindly know.
Q: What if the goods get lost/ damaged on the way?
A: We strongly suggest to buy insurance in case of any problem. We will discuss these details with you before order.
