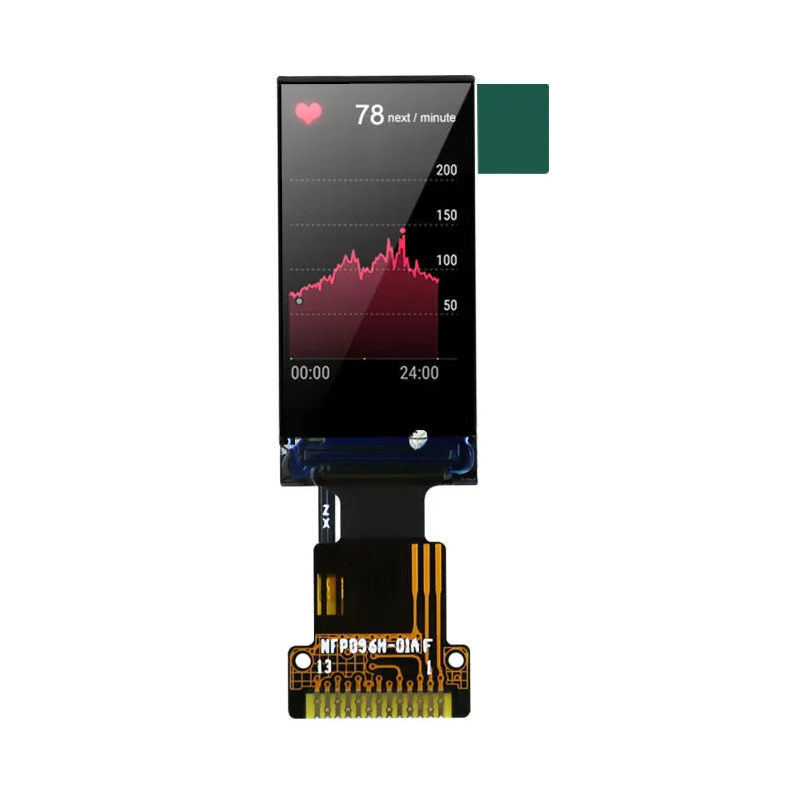

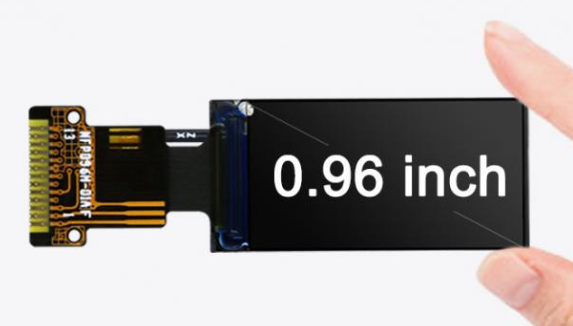

This TFT LCD Display is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 0.96 inch then our lcd is just what you need. Improve your product design by adding our 80 * 160 resolution product. QC department measured the luminance is 400 nits under normal operating.
| P/N | N096-1608TBBIG11-H13 |
| Size(inch) | 0.96 |
| Resolution | 80*160 |
| Active Area(mm) | 10.8*21.7 |
| Pixel pitch(um) | 135*135.6 |
| Outline Dimension(mm) | 13.5*27.95*1.5 |
| Pixel arrangement | RGB Vtertical stripe |
| Display Mode | Normally Black |
| Viewing Angle | ALL |
| Display colors | 262K |
| Brightness (cd/m²) | 400 |
| Contrast Ratio | 600 : 1 |
| Interface | 4 Line SPI |
| Back-light | 1 White LED |
| Driver Ic | ST7735S |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 30 |
| Pin Number | 13 |

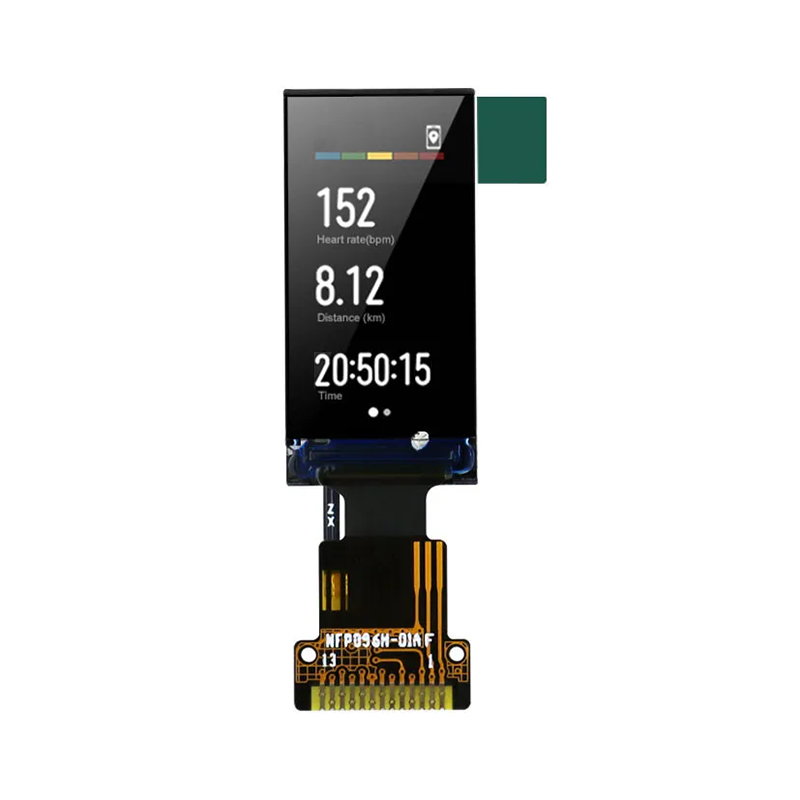

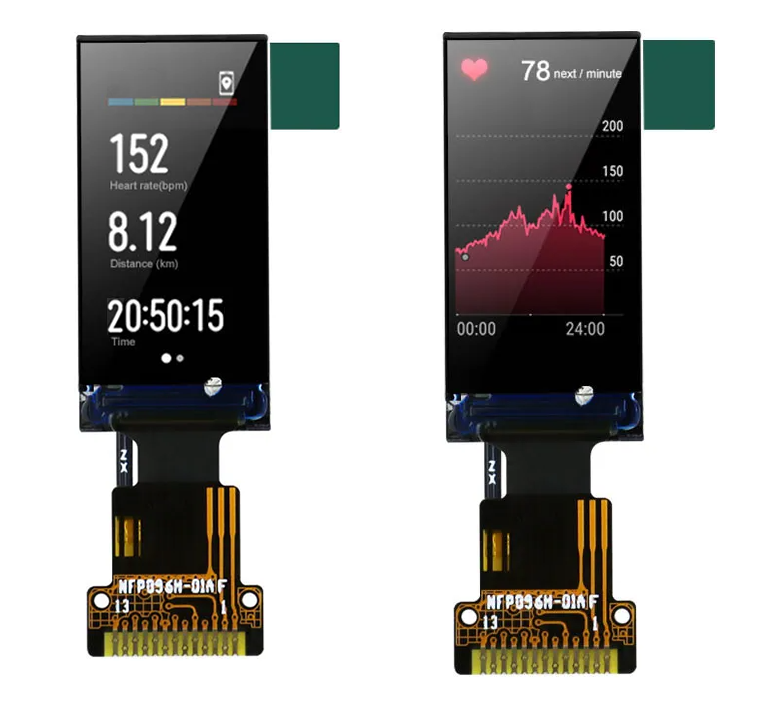

The N096-1608TBBIG11-H13 is a 0.96-inch TFT LCD module with a resolution of 80×160 that provides a fine vertical image quality on a 10.8×21.7mm display area. Its 135×135.6μm pixels are arranged vertically in RGB stripes, resulting in sharp text edges and full icon details. At 400 nits, the brightness level is ultra-high and it is much brighter than the typical wearable display. Along with a brightness of 400 nits, the display is also set with a pretty high contrast of 600:1 level. Thanks to this, the interface remains clear and easy to read both indoors and outdoors - just raise your wrist to light it up, and the information will be there instantly. It possesses a color depth of 262K which means that the gradation in heart rate curves, multicolor progress of activity rings, and status colors of message icons are all gently layered and visible.
The interface adopts the stripped down 4-wire SPI, only 13 pins being needed for the high speed data transmission, this way the wiring is kept simple and valuable GPIOs at the main controller are saved. The driver IC ST7735S is quite well known as a market-verified one, there are driver libraries handy on many platforms, such as Arduino and STM32, thus development time is quite short. The single white LED backlight system is quite simple and the power can be controlled making it battery friendly. The module thickness is just 1.5mm, its dimensions are 13.5×27.95mm, and it is thinner than a coin. So, it is indeed possible to fit it even in the most compact devices.
Technical depth is an important asset of Shenzhen Yitai Optoelectronics Co., Ltd. The company has around 20 patented technologies and the 28-member R&D team is still continuously getting new know-how and skills over twelve years since 2014. With a 20,000-square-meter base and 20 production lines, the monthly production capacity varies between 2.5 and 3 million units, while the team of 320 people gains experience by manufacturing. As a national high-tech enterprise having ISO9001 certification, the company stands for the value brought by technical accumulation. Material evidence of technical accumulation is the ten-thousand-level cleanroom and fully-automated LCD production lines. With products covering more than one thousand TN/HTN/STN/VA models and hundreds of TFT color screens the company also offers LED backlight customization at the same time. The main attention is put on small-sized displays from 0.96 to 7 inches, which have been subjected to extensive testing and are present in various markets, such as medical, inspection, smart home, Internet of Things, and overseas export.
Developed a customized 3.5-inch industrial-grade intercom display for a famous communication equipment manufacturer, enlisting a high-brightness IPS fully laminated touch screen, which complies with the IP67 protection standards. Several features characterizing the shock-resistant frame and anti-slip texture design were thoroughly studied so as to meet the special demands of the industry, thereby guaranteeing uninterrupted equipment operation in even the most adverse conditions. The screen is also furnished with intelligent light-sensing adjustment technology, which will be able to switch automatically between day and night modes depending on the ambient light, and it is made a lot easier for the user in terms of both visibility and working efficiency when it comes to outdoor work.
We custom-made a 5-inch medical-grade touch display for a famous medical device manufacturer using a high-resolution IPS fully laminated panel, Class B electromagnetic compatibility standard compliant. Besides medical on ergonomics requirements, we also implemented antibacterials bezels and an anti-glare design to make sure equipment can work steadily in complex environments such as operating rooms. The screen comes with a system that intelligently adjusts to the ambient light and can optimize display settings automatically, thus not only significantly reducing the visual fatigue of medical personnel but also enhancing their diagnostic and treatment work efficiency.
A 4.3-inch charging pile interactive screen was designed and manufactured for a major new energy brand, featuring high-brightness IPS full lamination technology, while also fulfilling the IP65 protection level standards. Besides, we tailored the anti-glare design and wide temperature operation (-30°C~70°C) to ensure that the screen remains clearly visible even in outdoor environments with changing weather conditions. The screen boasts a high level of integration with the intelligent light-sensing adjustment system which automatically adjusts the brightness of the display according to changes of day and night lighting, thus significantly improving the user operation experience.
