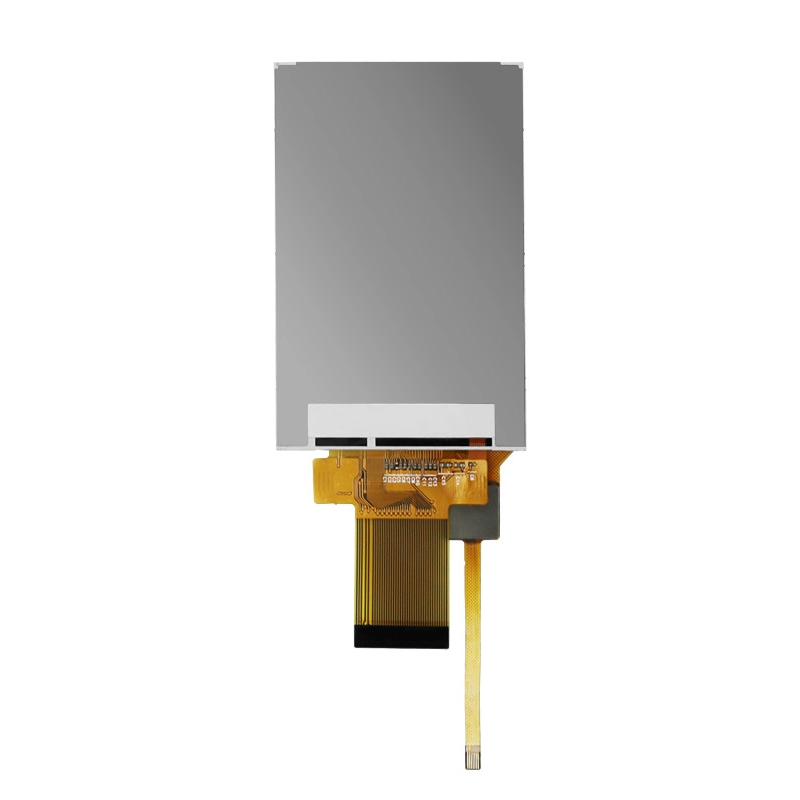

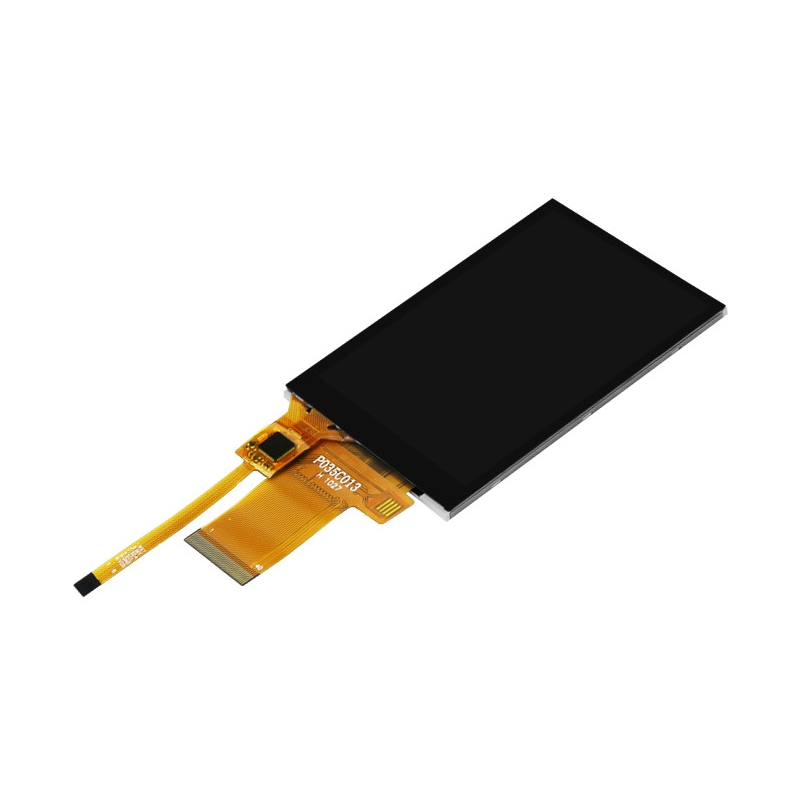

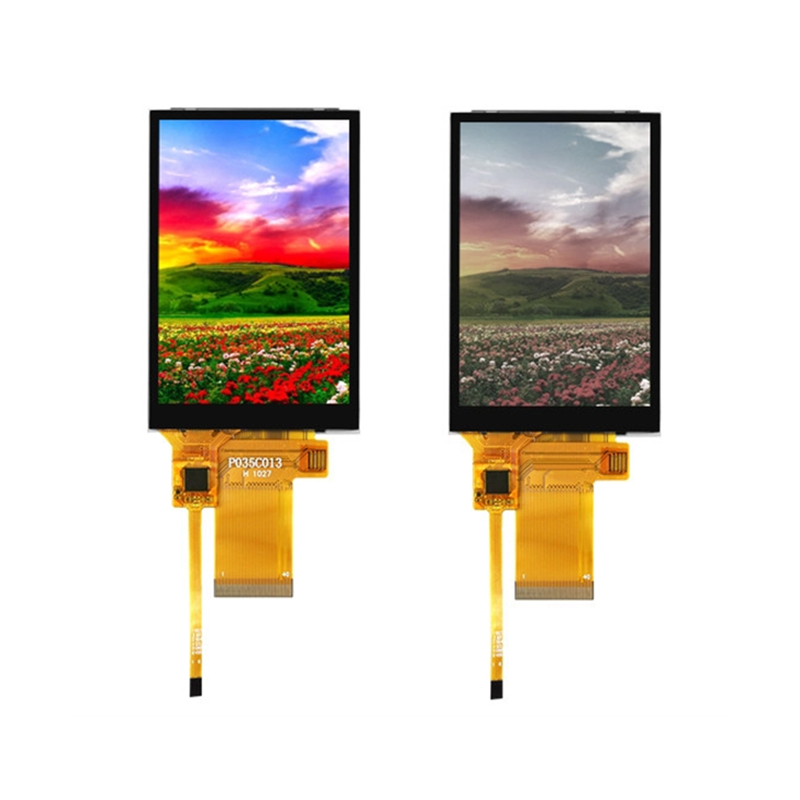

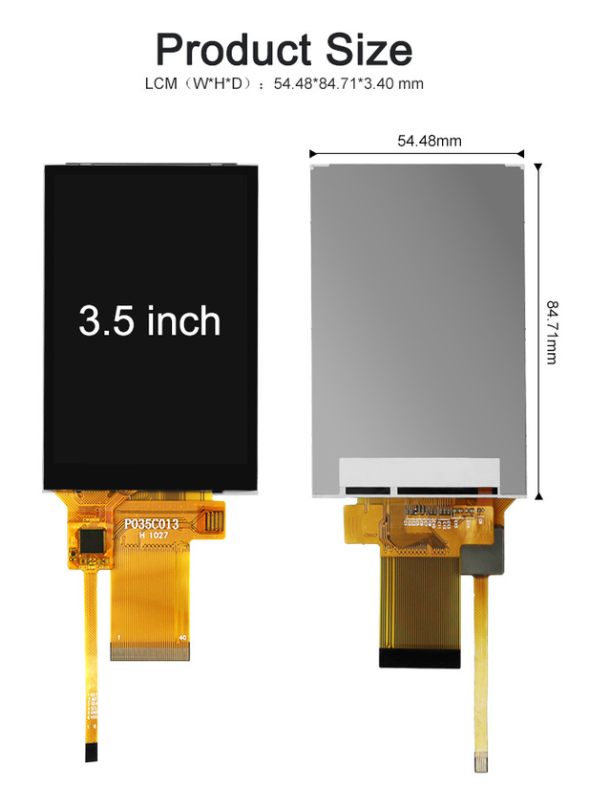

Recently developed and launched a commercial and industrial use LCD touch panel. The screen size is 3.5 inches, a very popular and common size for TFT displays of small dimensions. Refine your product development by incorporating our 320 * 480 resolution product. 450 nits brightness level enables this lcd to perform well indoors.
| P/N | P035C013-CTP |
| Size(inch) | 3.5 |
| Resolution | 320*480 |
| Brightness(cd/m²) | 450 |
| Interface | 8080 MCU 16bit |
| Driver Ic | ILI9488 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |
3.5 inch TFT LCD display module - P035C013-CTP has become a best-seller in the commercial and industrial market. It comes with a high-performance ILITEK ILI9488 driver chip, 320×480 pixel resolution (HVGA portrait), 450 nit brightness level, 8080 MCU parallel interface, and capacitive touch built-in. It is a great visual and touch integrated high-brightness and reliable solution for smart POS terminals, portable medical devices, industrial handheld instruments, smart home control panels, and IoT interactive devices.
Besides, the module accurately accommodates the standard size of 3.5 inches by the effective display area and features the RGB vertical stripe pixel arrangement, thus producing the multi-layer colors. The 320×480 pixels in the portrait layout allow achieving high definition and delicate texture on a 3.5-inch screen so that the UI text can be sharp and the icons can be clear. Vertical information flow and list-type menus can be performed very well with this display as it fits perfectly with the application design trend coming from the smartphone market. Combined with the 450 nit ultra-high brightness that is way above the standard specifications of the same size, the device keeps the highest excellent visibility in both indoor and semi-outdoor locations. Even under bright or complex lighting circumstances such as malls or outdoor counters, delivery terminals, and workshop inspection devices, it is still easy to read the screen as it significantly lowers the effect of ambient light on the user experience.
Shenzhen Yitai Optoelectronics Co., Ltd. are a technologically leading company in the field of LCD display industry that has total of twelve years of experience and expertise. The company has been developing its own display screens since 2014 and has never compromised its focus on providing the best in small-size display screen even for short-term demand, besides 20,000 square meters plant and 20 production lines enable a monthly output of 2.5 to 3 million pieces. The 320 staff include 28 R&D personnel and have managed to transform twelve years of experience in the industry into a high level of professional expertise. ISO9001 certified, with over 20 patented technologies and a national high-tech enterprise qualification, the company disp[lays its] deep knowledge and experience through the achievements. Class 10,000 cleanrooms and fully automated LCD production lines underscore the deep investment. Offering more than 1,000 TN/HTN/STN/VA products, approx. 100 TFT color screens, and customized LED backlight sources, the company covers the size range of 0.96 inches to 7 inches. Medical, inspection, smart home, and IoT products are the typical applications where their products find a place extensively after the completion of strenuous environmental tests. Their profound knowledge of the industry and technology, plus a willingness to improve constantly have earned the admiration and respect of their customers worldwide, both internally and externally.
We worked closely with a famous communication equipment manufacturer to design and produce industrial-grade intercom displays, 3.5 inches in size, using high-brightness IPS fully laminated touchscreens and complying with IP67 waterproof standards. We enhanced the shock-resistant structure and anti-slip surface with textures for machinery requirements to operate without interruptions even in the most demanding conditions. The display features a light sensor-based automatic brightness control system that changes the display mode between day and night automatically according to the environmental light, thereby greatly improving the visibility and the efficiency of outdoor work.
We made for a leading medical device manufacturer a 5-inch medical-grade touch display with a high-resolution IPS fully laminated panel, Class B EMC compliant. In order to expose only a minimum of bacteria in this setup, along with ergonomic medical requirements, antibacterial bezels were further implemented at the same time as the anti-glare treatment, thus allowing for stable functioning even in complicated environments such as operations. To reduce medical workers' eye strain and improve the diagnostic and treatment performance, the screen has an automatic light-based intelligent adjustment feature which can dynamically change its display parameters in accordance with the being-used scenario.
We designed a financial-grade 4-inch encrypted display for international banks using a military-grade IPS touchscreen fully laminated, adhering to PCIDSS payment security standards. In response to the financial industry's extremely stringent security requirements, we devised an anti-peeping mechanism and a tamper-proof frame as a special measure to guarantee the security of data on self-service terminals, such as ATMs. The display consists of a smart ambient light response system, which is capable of self-adjusting to the optimal display state according to each branch's lighting condition, thereby greatly improving customer satisfaction and transaction efficiency.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
