Product Description
What can we expect from this one? Before this question it is better to know some information about this Medical LCD Display. Screen size is 2.31 inch. A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 320 * 240, clear enough for most scenes to be used. 300 nits allow this lcd to work well indoors.
| P/N | P023H005-V2 |

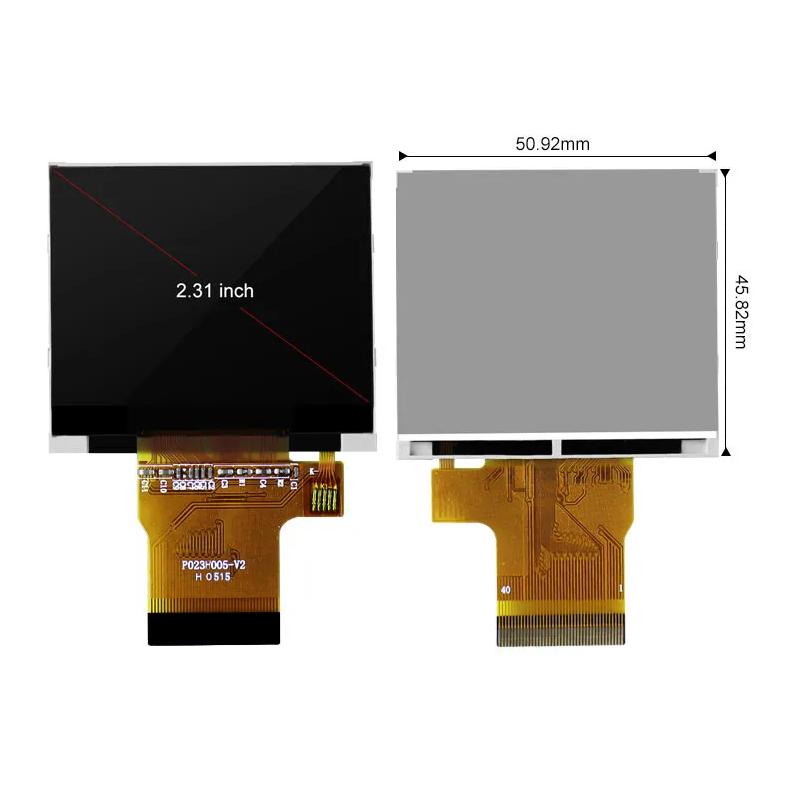

| Size(inch) | 2.31 |
| Resolution | 320*240 |
| Active Area(mm) | 46.75*35.06 |
| Pixel pitch(um) | 146.1*146.1 |

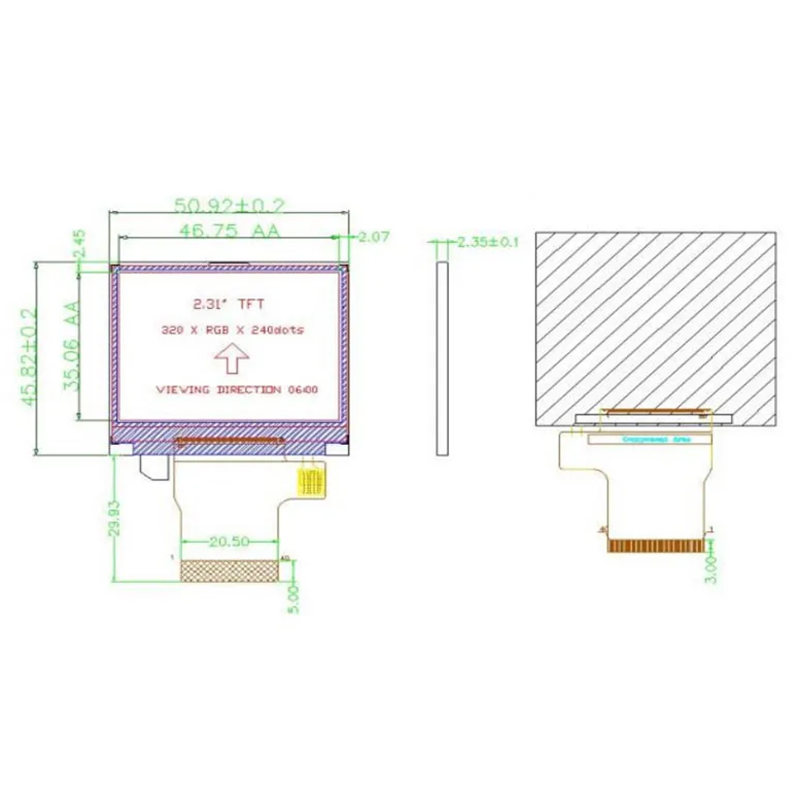

| Outline Dimension(mm) | 50.92*45.82*2.35 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 6 0'CLOCK |
| Display colors | 262K |
| Brightness (cd/m²) | 300 |
| Contrast Ratio | 600:1 |
| Interface | 8080 MCU 16bit |
| Back-light | LED Side-light type |
| Driver Ic | ILI9342C |
| Operatio Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 40 |

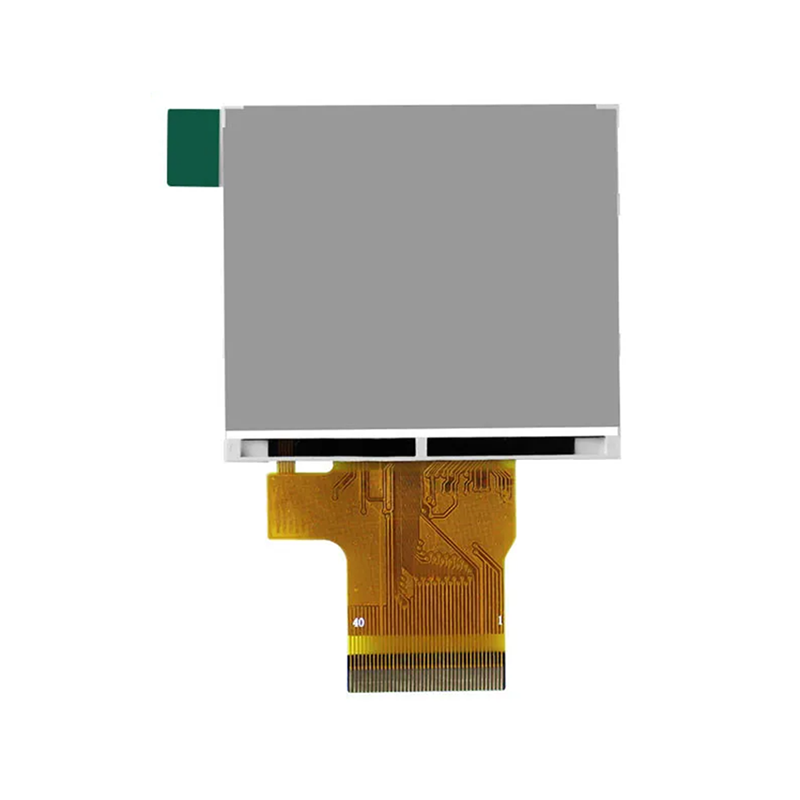

The P023H005-V2 is a 2.31-inch TFT LCD display module tailored for use in medical equipment and other industrial sectors where high reliability is necessary. It comes with a built-in ILITEK ILI9342C, a high-performance driver chip, along with a 320 × 240 pixel resolution that ensures accurate color representation and very stable performance of the display, thus fulfilling the image quality and reliability requirements of medical monitoring, portable diagnostic instruments, and industrial control panel applications that are both exacting and demanding.

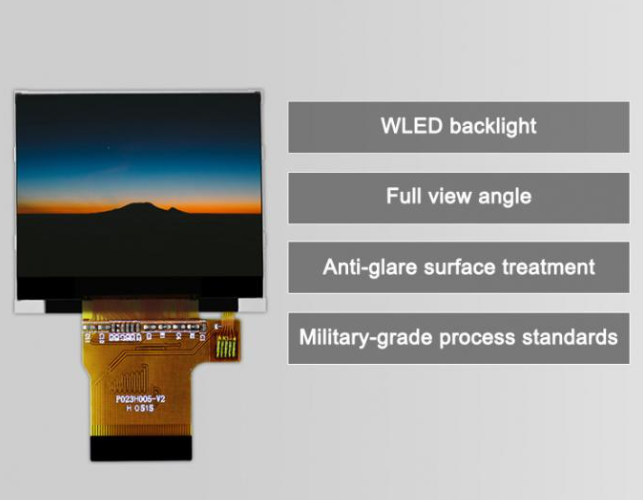

The module sports a 46.75mm × 35.06mm active display area, a pixel pitch of 146.1μm × 146.1μm, and an RGB vertical stripe pixel arrangement, with the ability to reproduce 262K colors showing rich gradients and detailed, lifelike images. It adopts a Normally Black display mode which gives a deep black when the unit is unpowered and has a contrast ratio reaching up to 600:1. This makes certain that dark scenes in detail are well discernible and bright areas have good layering. Hence, this display type is very suitable for use in displaying medical images, waveforms, and dark UI interfaces. The display brightness is 300 cd/m², and it is backed by a WLED side-entry backlight which ensures soft and uniform illumination, helping to lower visual fatigue over a long duration of use, and is thus compatible with medical devices which are used for prolonged continuous operation.
Advantage in technology The capability to design, and to build with our 1/3rd-of-a-century experience, our own-manufactured equipment, our own-developed processes, and our in-house know-how, is the criteria of the leaders, not a single product. The Shenzhen Yitai Optoelectronics (market) base is passed by (through the door of)technology leadership. After its foundation in 2014, the team of 28 R&D members has kept the forward-looking technology, has piled up more than 20 patents, and the company has been honored as a national high-tech enterprise. With a 20,000-square-meter base and 20 production lines, the company can produce 2.5-3 million units per month. The 320-member team ensures that the leading technology is industrially implemented. ISO9001 certificate, a ten-thousand-level cleanroom, and fully automated production lines are the manufacturing guarantees for technological leadership. More than a thousand TN/HTN/STN/VA products and hundreds of TFT color screens, with customizable LED backlights, are the major products. The main focus is on the small-sized displays from 0.96 to 7 inches, and they are pursuing a twelve-year technological leadership strategy, the products are subjected to stringent tests and then finding wide applications in the fields of medical, testing, smart home, and IoT, performing quite well in domestic sales and overseas exports.

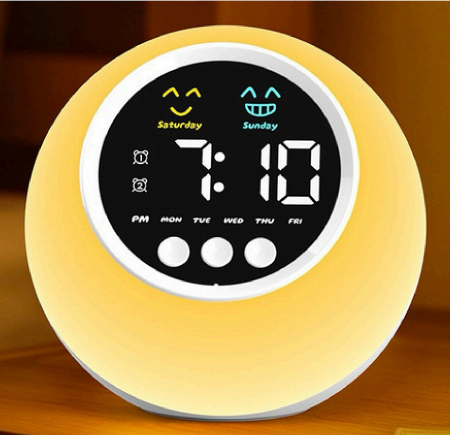

Customizing a 2.8-Inch Minimalist Clock Display Using Low-Power IPS Full Lamination Technology and Wide 180° Viewing Angle Support for a Well-Known Home Brand.Taking into account the bedroom usage scenarios, we perfected the ultra-thin, borderless design, and the soft light guide structure to not only suit the appearance of modern homes aesthetically but also fulfill the functionality needs. Smart light-sensing adjustment system is built into the screen that can automatically switch display modes as per changes in daylight and at night automatically shift to soft light mode, thus making it possible for the time to be vividly seen without disturbing the sleep quality.

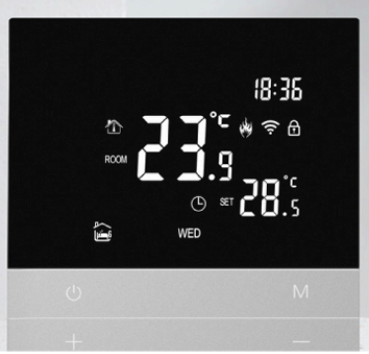

Working together with a famous HVAC brand, we designed a 3.5-inch display with high temperature control accuracy for them, adopting full-view IPS full lamination technology and allowing the user to interact via multi-touch. For domestic use, we decided on an ultra-thin bezel with rounded corners so that it would go well with interior decoration styles of the present day. The display also features an automatic ambient light adjustment capability, whereby it can readjust brightness and contrast depending on the conditions of indoor lighting, which greatly improves user's experience and energy efficiency.
The 4-inch financial-grade encrypted displays were made by us for international banks by using the military-grade IPS full lamination touchscreen, which complies with PCIDSS payment security standards. Besides the high-security needs for the financial industry, the anti-peeping structure and tamper-proof frame were specially designed by us to ensure data security on ATMs and other self-service terminals. In addition to that, the screen is equipped with an intelligent ambient light adaptation system that automatically adjusts to the optimum display state according to the branch’s lighting conditions, by which the customer operation experience and transaction efficiency are drastically improved.
