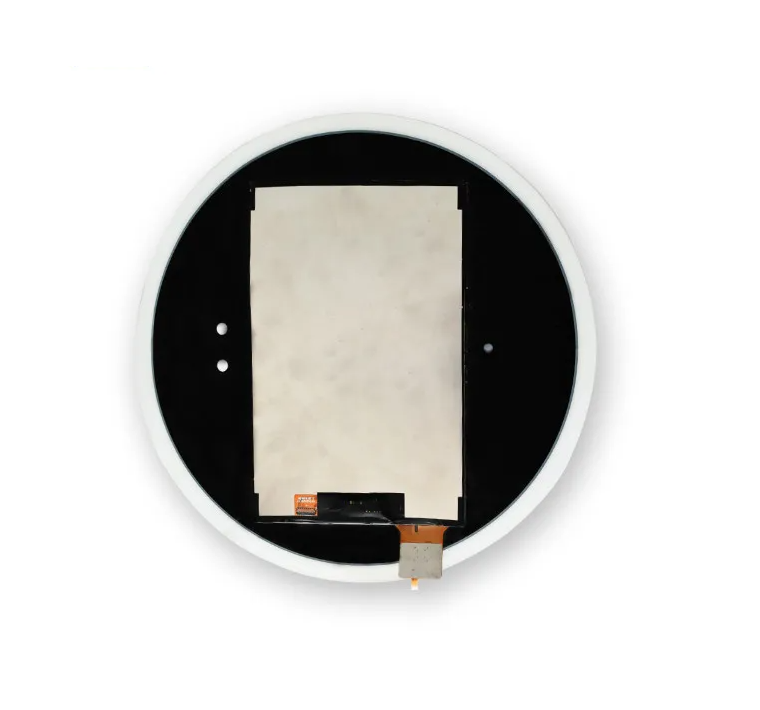

Product Details
Product Name: | Capacitive Touch Screen Panel | Size (inch): | 8 Inch |
View Area(mm): | 173.22(W)*107.44(H) | Structure: | G+G |
Interface: | I2C | Driver Ic: | GT911 / GT9157 |
Resolution: | 800:1280 | Dimensions: | 184.17*114.87*4.87mm |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | 20cm * 18 cm * 13 cm | Delivery Time | 5-8 working days |
Payment Terms | T/T, L/C, Credit card, PayPal | Supply Ability | 100,000 piece per week |
Product Description
Product Parameter:
| Product Name | 8 inch Capacitive Touch Screen |
| Brand | Yitai |
| Model | CTP-P080GG01 |
| Size | 8 inch |
| Ratio | 800:1280 |
| View Area(mm) | 173.22(W)*107.44(H) |
| Structure | G+G |
| Drive IC | GT911 / GT9157 |
| PIN | 6 pin |
| Transmittance | ≥83% |
| Surface hardness | ≥6H |
| Unfilled size tolerance | ±0.2mm |
| Humidity range | 20~85%RH |
| Operating temperature | -10℃~+60℃ |
| Storage temperature | -20℃~+70℃ |

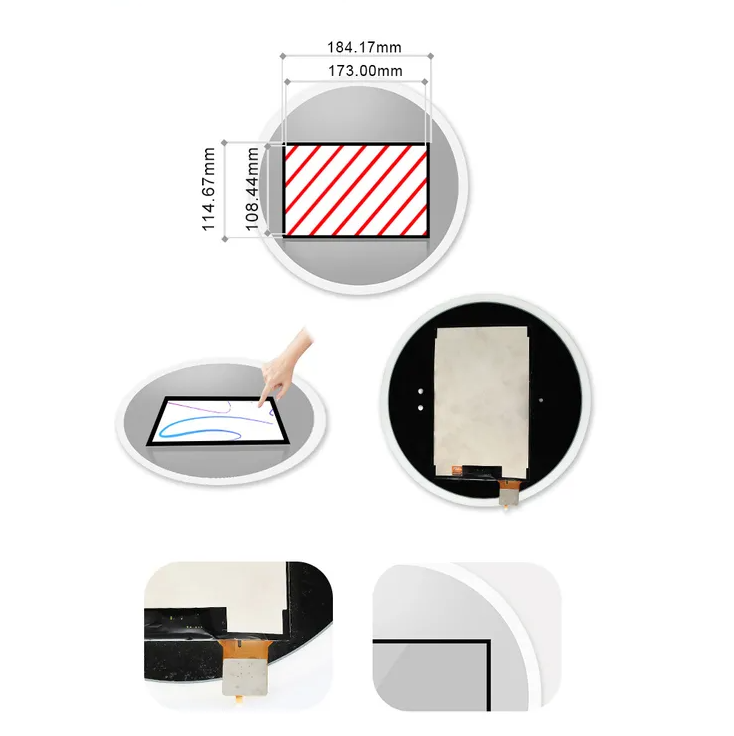

| Dimensions | 184.17*114.87*4.87mm |
| Certification | RoHS |
| Warranty | 1 year / 2 years |
Technical Parameters:
1. TP structure: G+G
The front of the CG is spray-painted with AF, the front is made of overall non-conductive mirror coating, the color is cyan, and the back is screen-printed with black ink.
2. CG window transmittance: 33±5%, reflectivity: 60±5%
3. Working environment: -10℃~+60℃, ≤90%RH.
4. Storage environment: -20℃~+70℃, ≤90%RH.
5. All materials comply with RoHS standards.
