Product Description
Product Description:

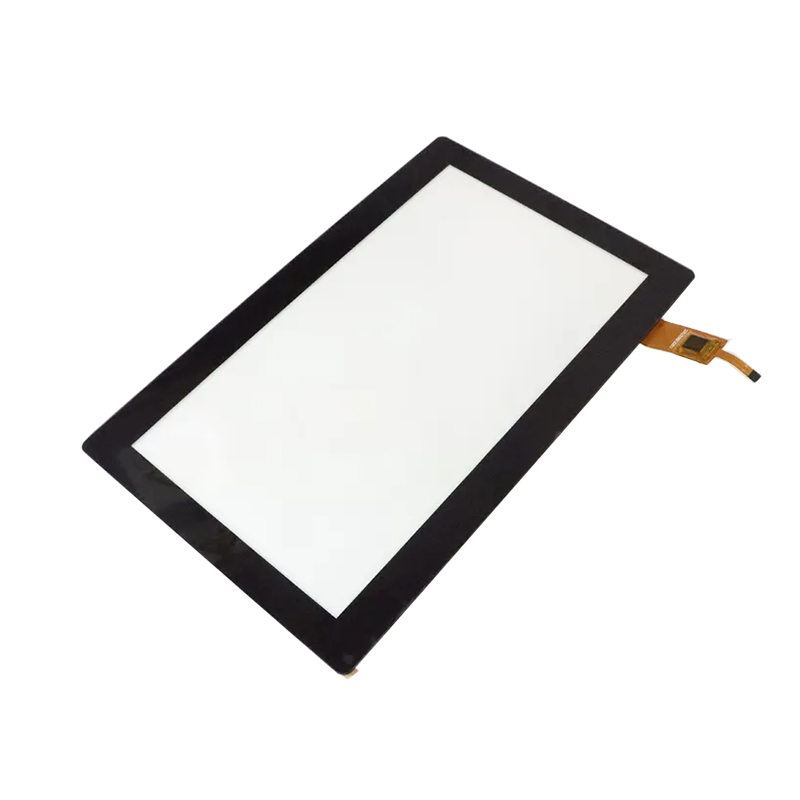

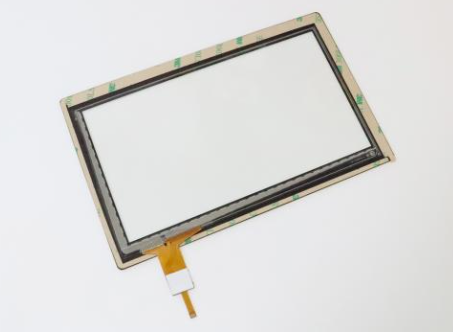

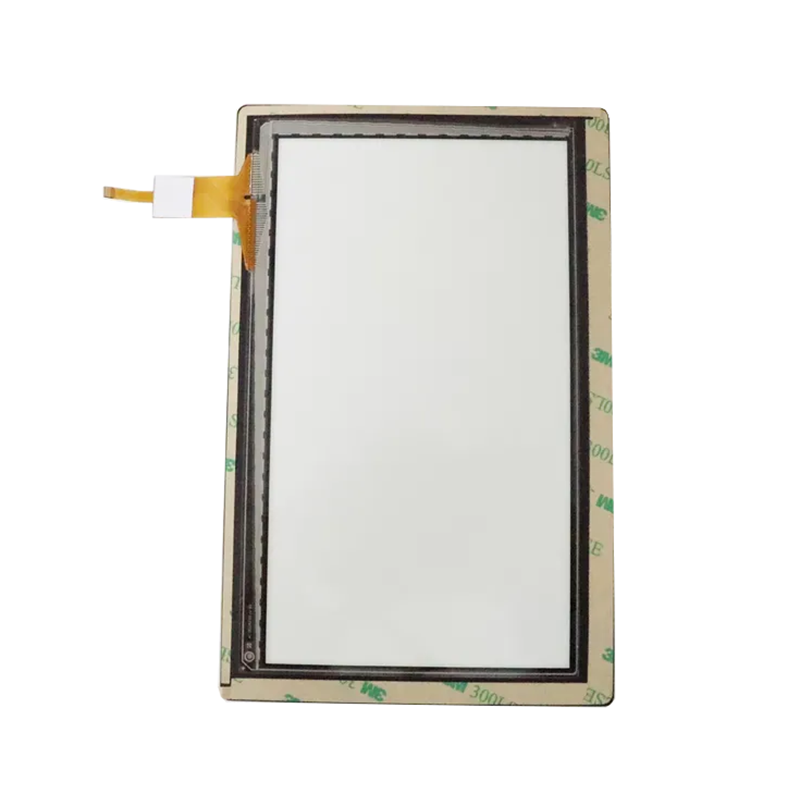

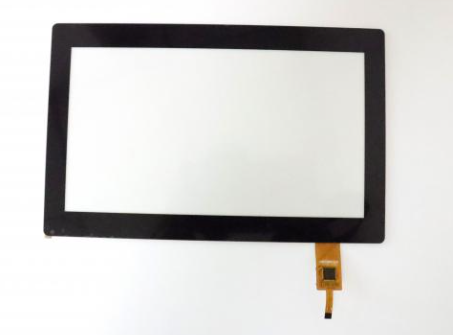

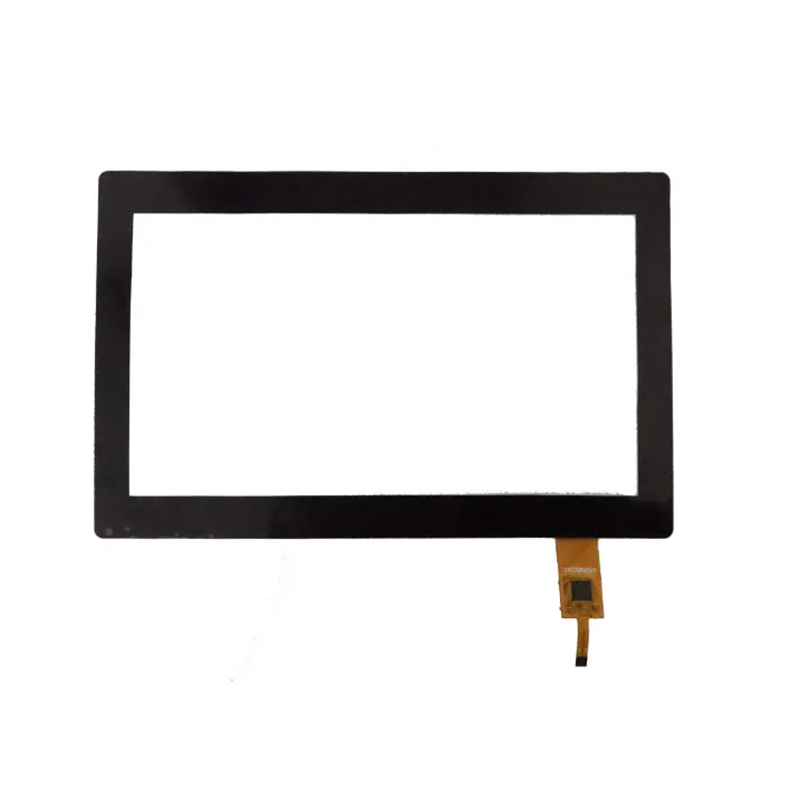

The 7-inch transparent capacitive touch screen is a capacitive touch screen with transparent material, which can provide a transparent touch screen and support multi-touch operation. It uses capacitive touch technology, which can sense the user's touch signal by detecting the capacitance of the human body, so as to realize the operation of the screen. 7-inch transparent capacitive touch screens usually have high resolution and high pixel density, which can provide clear image and text display, and have high durability and scratch resistance. Transparent capacitive touch screens can be used in applications that require transparent touch screens, such as smart homes, commercial displays, and billboards.
Product Parameters:
| Product Name | 7” Capacitive Touch Screen |
| Brand | YiTai |
| Model | CTP-P070003GG01 |
| Size | 7 inch |
| LCM Resolution | 800*480 |
| View Area(mm) | 154.88(W)*86.72(H) |
| Structure | G+G |
| Drive IC | GT911 |
| PIN | 6 pin |
| Interface | I2C |
| Transmittance | ≥85% |
| Surface hardness | ≥6H |
| FPC | COF |
| Unfilled size tolerance | ±0.2mm |
| Operating Voltage | 3.3V |
| Operating temperature | -20℃~+70℃ |
| Storage temperature | -30℃~+80℃ |
| Certification | RoHS |
| Warranty | 1-2 years |
7 inch transparent capacitive touch screen is a capacitive touch screen with transparent material. Compared with the ordinary capacitive touch screen, the 7-inch transparent capacitive touch screen has the following characteristics:
Transparency: The transparent capacitive touch screen adopts transparent materials, which can provide a transparent touch screen, so that users can see the underlying display content through the screen, which improves the user experience.
High Sensitivity: The transparent capacitive touch screen has high sensitivity and can detect very tiny touch signals, so users can operate it easily.
Multi-touch: The transparent capacitive touch screen can detect multiple touch points at the same time, support multi-touch operation, and provide more abundant operation methods.
High Definition: Transparent capacitive touch screens usually have high resolution and high pixel density, which can provide clear image and text display.
Durability: Transparent capacitive touch screens generally have high durability and scratch resistance, and can withstand regular use and minor physical damage.
Low power consumption: One of the main features of the transparent capacitive touch screen is that it consumes very little power. This characteristic can greatly help in increasing battery life and reducing energy consumption.
A quality management system that is very thorough is one of the features in the operation of Shenzhen Yitai Optoelectronics Co., Ltd. In 2014, the company came into existence and has since then implemented the ISO9001 quality management system, ensuring that every aspect of R&D, procurement, production, testing, and after-sales is covered. Besides the normal tests, each product also gets the high and low temperature, vibration, and anti-interference tests. A facility of 20,000 square meters, a ten-thousand-level cleanroom, and 20 automated production lines, totally create a monthly production capacity of 2.5 to 3 million units. Two hundred and thirty-two employees are working under the system, 28 personnel are in R&D concentrating on system optimization, and more than 20 patents serve as system innovation support. The company is recognized as a national high-tech enterprise. The product range consists of over a thousand TN/HTN/STN/VA and hundreds of TFT color screens, with LED backlight customization. Having twelve years of system experience, our small-size market of 0.96-7 inches is leading, and our products are extensively used in medical, inspection, smart home, and IoT fields and also exported overseas.
We developed a 3.5-inch industrial-grade intercom display with a well-known communication equipment manufacturer. It is a fully laminated touch screen of high-brightness IPS, and it meets the IP67 protection level requirements. Besides, we optimized the shock-resistant frame and anti-slip texture surface for the industry's special requirements to ensure the equipment's reliable operation even in very harsh environments. Besides that, the screen is equipped with the intelligent light-sensing adjustment technology, enabling automatic switching between day and night display modes according to the surrounding light, thus visibly improving the quality of the work done outdoors and the work efficiency.
For a famous medical device manufacturer, we custom-developed a 5-inch medical-grade touch display by using a high-resolution IPS fully laminated panel, which is compliant with Class B electromagnetic compatibility standards. Besides, we implemented the requirements of medical ergonomics to their fullest, as we introduced antibacterial bezels and anti-glare design to keep the device up and running even in the highly complex operating room environments. Also, this display integrates an ambient light intelligent adjustment system, which automatically optimizes display parameters according to usage scenarios, thus substantially reducing medical staff's visual fatigue and enhancing diagnostic and treatment efficiency.
The 4-inch financial-grade encrypted displays were made by us for international banks by using the military-grade IPS full lamination touchscreen, which complies with PCIDSS payment security standards. Besides the high-security needs for the financial industry, the anti-peeping structure and tamper-proof frame were specially designed by us to ensure data security on ATMs and other self-service terminals. In addition to that, the screen is equipped with an intelligent ambient light adaptation system that automatically adjusts to the optimum display state according to the branch’s lighting conditions, by which the customer operation experience and transaction efficiency are drastically improved.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
