Product Description
What is a 2.4 inch capacitive touch panel?
The 2.4-inch capacitive touch panel is a touch screen using capacitive technology, which can be operated by fingers or capacitive pens on the screen. Compared with resistive touch screens, capacitive touch screens have higher sensitivity and response speed, and do not need to apply pressure to detect touch. Capacitive touch screens usually consist of a layer of transparent conductive material covered with sensing electrodes and a glass or plastic screen. When a finger or a capacitive stylus touches the screen, it will change the charge distribution between the sensing electrodes, thereby triggering the detection and processing of touch signals.
2.4-inch capacitive touch screens are often used in small electronic devices such as smart watches, portable media players, mini game consoles, etc. These devices often require a small, sensitive and easy-to-use touch screen to provide a convenient user interface. Because of their excellent sensitivity and ability to detect touches quickly, capacitive touchscreens are the best choice for these types of devices.
Product Parameter:
| Product Name | 2.4” Capacitive Touch Screen |
| Brand | YiTAi |
| Model | GFP024147D-TP-FPC-20 |
| Size | 2.4 inch |
| View Area(mm) | 37.92±0.15(W) * 50.26±0.15(H) |
| Structure | G+F |
| Drive IC | FT6336U |
| PIN | 6 pin |
| Interface | I2C |
| Transmittance | ≥80% |
| Surface hardness | ≥6H |
| Unfilled size tolerance | ±0.2mm |
| Operating temperature | -20℃~+70℃ |
| Storage temperature | -30℃~+85℃ |
| Certification | RoHS |
| Warranty | 1-2 years |
The 2.5-inch touch screen can be tailored to meet the needs of customers. Below are some of the main customization choices:
Design of appearance: Design of appearance may be done based on customers' requirements, for example, shape, color and material, etc.
Touch technology: The selection of touch technology is possible among capacitive, resistive or even infrared touch screen in order to fit different application scenarios.
Touch technology: Different touch technologies can be selected, such as capacitive, resistive or infrared touch screens, to meet different application needs.
Resolution: Different resolutions can be selected according to the needs of customers to meet the resolution requirements in different application scenarios.
Transparency: Different transparency can be selected according to the needs of customers to adapt to different ambient light conditions.
Backlight: You can choose different backlights, such as LED or OLED, to meet different application requirements.
Anti-interference: EMI/EMC protection can be carried out on the touch screen according to the needs of customers to ensure the stability and reliability of the product.
Interface type: You can choose different interface types, such as I2C, SPI or USB, etc., to meet different application requirements.

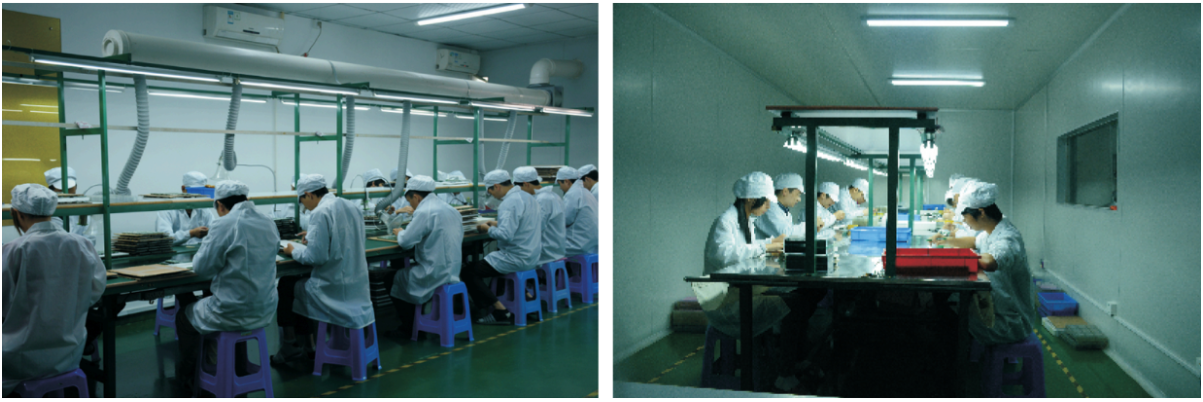

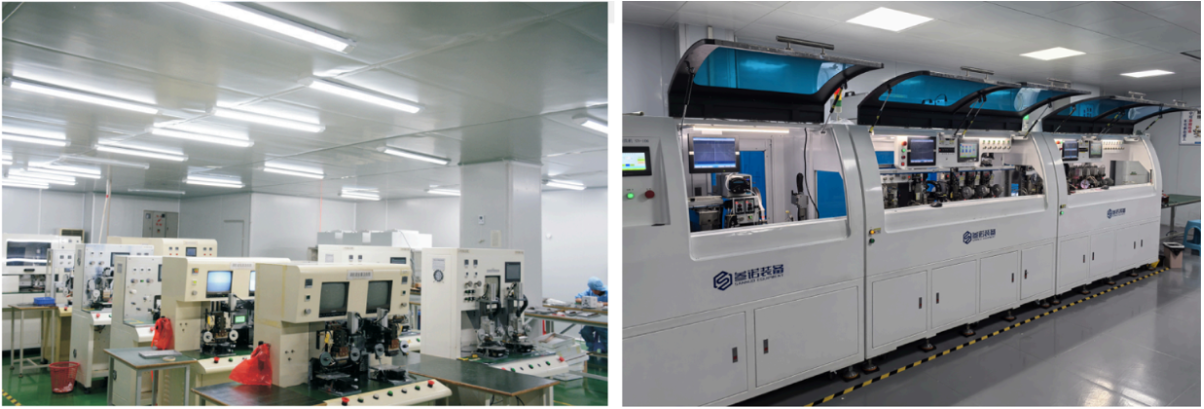

“Fast delivery” is Shenzhen Yitai Optoelectronics Co., Ltd. service promise. The company was founded in 2014 and through the years, they have fine-tuned their production processes. Nowadays, 20 production lines with a monthly capacity of 2.5 to 3 million pieces, Yitai can swiftly react to regular orders. The company has a 20,000 square meter factory, and a 320 staff team that work effectively. At the same time, a 28-member R&D team allows the new product introduction cycle to be shortened more. Besides, the company has already obtained over 20 patents, ISO9001 certification and even it is recognized as a national high-tech enterprise. Class 10,000 cleanrooms and automated production lines are supporting and enhancing delivery efficiency. There are thousands of TN/HTN/STN/VA and more than hundred TFT color products, with LED backlight parts available for rapid customization. At present focusing on the small-size market from 0.96 to 7 inches, Yitai has been optimizing delivery for 12 years and their products have widespread uses in the medical, inspection, smart home, and IoT areas. They perform very well both domestically and internationally.”

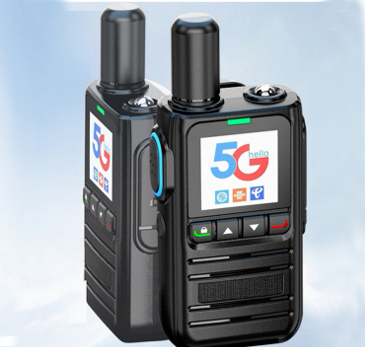

By collaborating with one of the leading manufacturers of communication equipment, we have developed a 3.5-inch industrial grade intercom display which is made of a high-brightness IPS fully laminated touch screen and is IP67 protection requirement compliant. We addressed the industry-specific functional conditions by optimizing the shock-resistant frame and anti-slip texture design and hence the reliability of the equipment in challenging environments was confirmed. It also features an intelligent light-sensing technology that automatically switches between day and night mode depending on the ambient light, thus greatly improving visibility and operational efficiency during outdoor work.

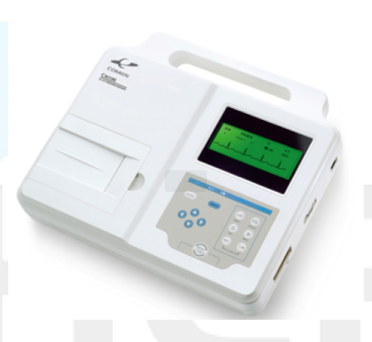

We partnered with a prominent medical device manufacturer to create a 5-inch medical-grade touch display featuring a high-resolution IPS fully laminated panel and compliance with Class B electromagnetic compatibility standards. Our design strictly follows medical ergonomics standards and includes antibacterial bezels and anti-glare features to make the product stable in operation even in complex environments such as the operating room. Our lighting system adjusts automatically to the ambient light, so the display parameters are constantly optimized, and this provides the double benefit of reduced visual fatigue for medical professionals and better diagnostic and treatment results.

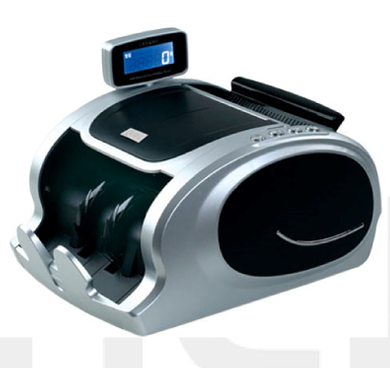

Our 4-inch financial-grade encrypted display which was custom-made for international banks is a full-lamination touchscreen based on military-grade IPS and compliant with PCIDSS payment security standards. Financial sector is known for its high-security standards, therefore we paid particular attention to design elements that enhance security such as an anti-peeping structure and tamper-proof frame to prevent unauthorized access to ATM and other self-service data. The screen, equipped with an intelligent ambient light adaptation system, can change instantly according to lighting conditions in the branch, thus greatly improving customer experience and transaction efficiency.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
3. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
4. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
5.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
6. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
7. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
