Product Details
Product Name: | Capacitive Touch Screen Panel | Size (inch): | 2.4 Inch |
View Area(mm): | 37.92±0.15(W) * 50.26±0.15(H) | Structure: | G+F |
Interface: | IIC | Driver Ic: | FT6336U |
Operating Temperature: | -20℃~+70℃ | Transmittance: | ≥85% |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | 20 cm * 18 cm * 13 cm | Delivery Time | 5-8 working days |
LCM Resolution: | T/T, L/C, Credit card, PayPal | Supply Ability | 500,000 piece per week |
Product Description
What is a 2.4 inch capacitive touch panel?
The 2.4-inch capacitive touch panel is a touch screen using capacitive technology, which can be operated by fingers or capacitive pens on the screen. Compared with resistive touch screens, capacitive touch screens have higher sensitivity and response speed, and do not need to apply pressure to detect touch. Capacitive touch screens usually consist of a layer of transparent conductive material covered with sensing electrodes and a glass or plastic screen. When a finger or a capacitive stylus touches the screen, it will change the charge distribution between the sensing electrodes, thereby triggering the detection and processing of touch signals.
2.4-inch capacitive touch screens are often used in small electronic devices such as smart watches, portable media players, mini game consoles, etc. These devices often require a small, sensitive and easy-to-use touch screen to provide a convenient user interface. The high sensitivity and responsiveness of capacitive touchscreens make them ideal for these devices.
Product Parameter:

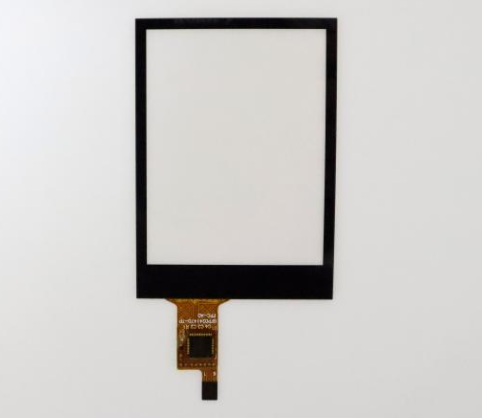

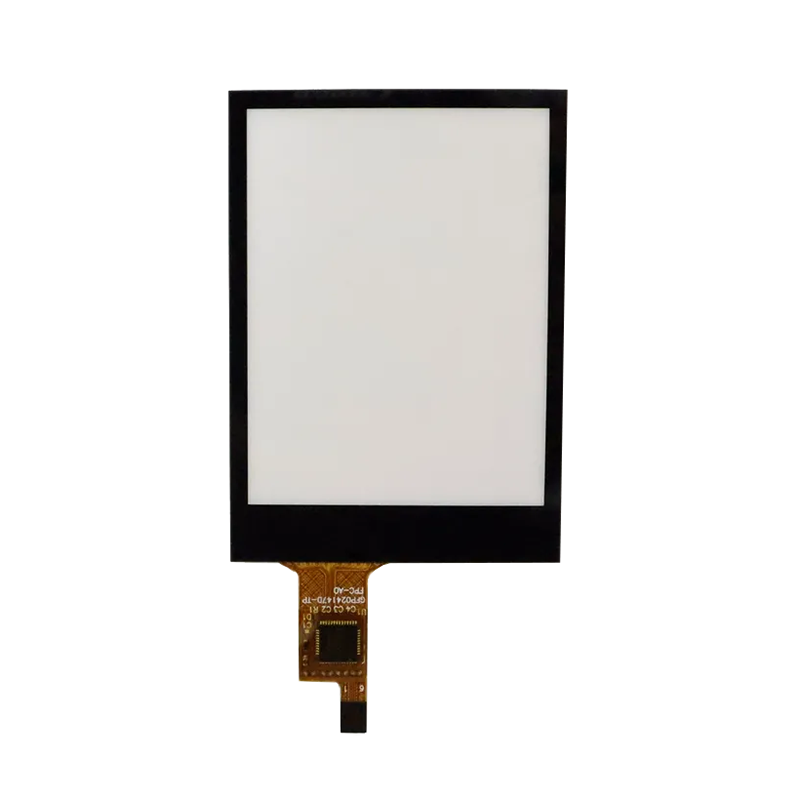

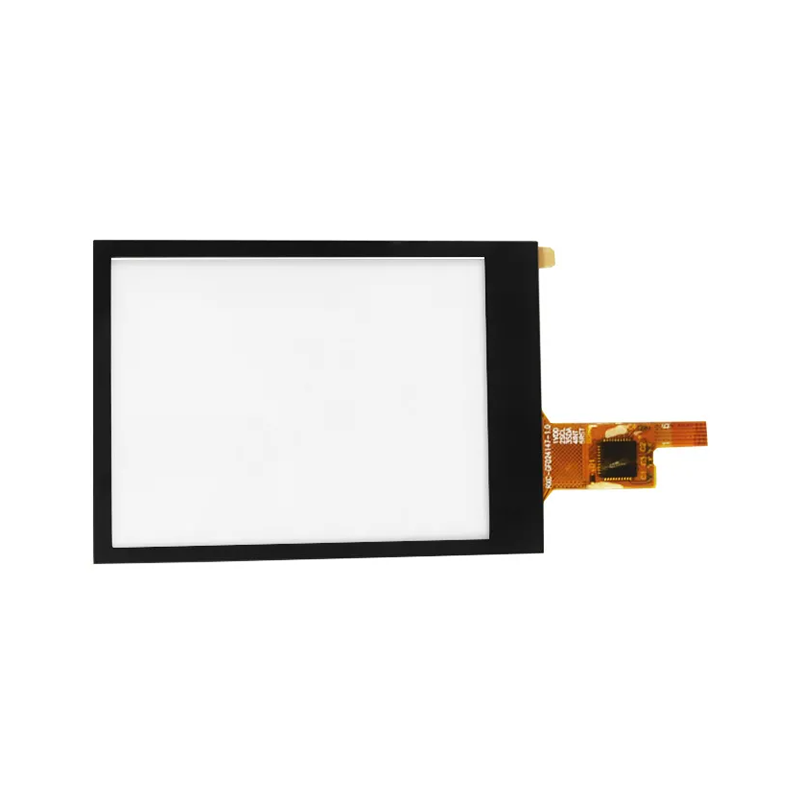

| Product Name | 2.4” Capacitive Touch Screen |
| Brand | YiTAi |
| Model | GFP024147D-TP-FPC-20 |
| Size | 2.4 inch |
| View Area(mm) | 37.92±0.15(W) * 50.26±0.15(H) |
| Structure | G+F |
| Drive IC | FT6336U |
| PIN | 6 pin |
| Interface | I2C |
| Transmittance | ≥80% |
| Surface hardness | ≥6H |
| Unfilled size tolerance | ±0.2mm |
| Operating temperature | -20℃~+70℃ |
| Storage temperature | -30℃~+85℃ |
| Certification | RoHS |
| Warranty | 1-2 years |
The 2.5-inch touch screen can be customized according to the needs of customers, the following are some optional customization options:
Appearance design: Appearance design can be made according to customer's needs, such as shape, color and material, etc.
Touch technology: Different touch technologies can be selected, such as capacitive, resistive or infrared touch screens, to meet different application needs.
Resolution: Different resolutions can be selected according to the needs of customers to meet the resolution requirements in different application scenarios.
Transparency: Different transparency can be selected according to the needs of customers to adapt to different ambient light conditions.
Backlight: You can choose different backlights, such as LED or OLED, to meet different application requirements.
Anti-interference: EMI/EMC protection can be carried out on the touch screen according to the needs of customers to ensure the stability and reliability of the product.
Interface type: You can choose different interface types, such as I2C, SPI or USB, etc., to meet different application requirements.
