What can we expect from this one? Before this question it is better to know some information about this LCD Touch Panel.
If your product requires a size 4.3 inch then our lcd is just what you need. The TFT LCD offers a physical resolution of 800 * 480, clear enough for most scenes to be used.
The normal brightness is 280 nits under the test of laboratory.
| P/N | P043B018-CTP |
| Size(inch) | 4.3 |
| Resolution | 800*480 |
| Brightness(cd/m²) | 280 |
| Interface | RGB 24bit |
| Driver Ic | ST7262E43 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |

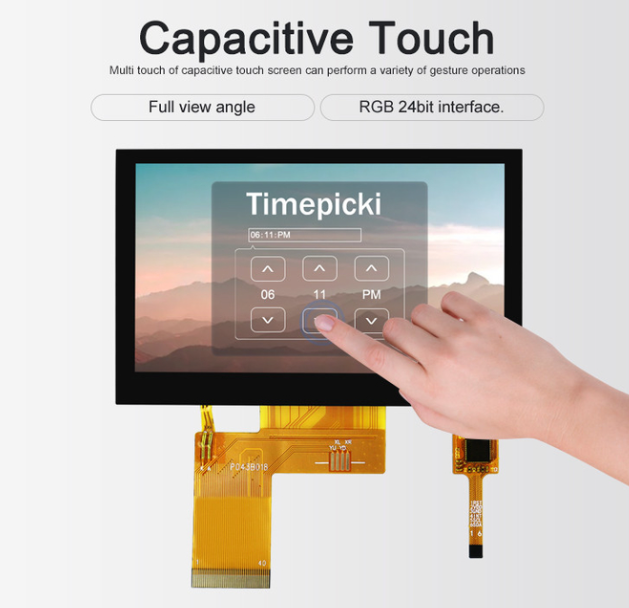

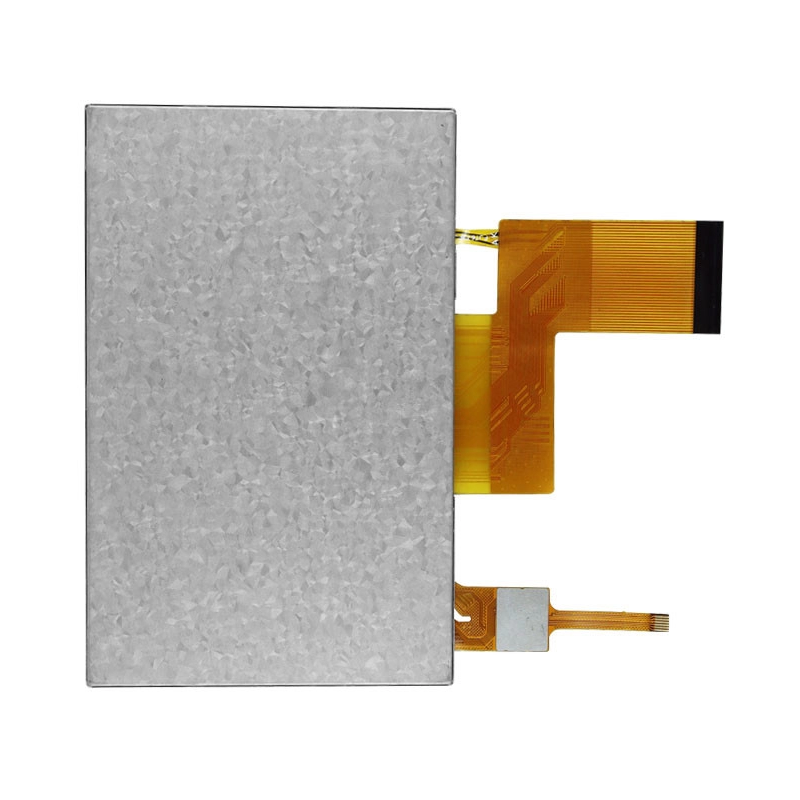

The P043B018-CTP is a 4.3-inch TFT LCD panel that caters to industrial control and smart terminal application needs. It is equipped with a powerful ST7262E43 driver chip internally, offers a display resolution of 800×480 pixels (WVGA), and supports 24-bit true colors depth along with a full-viewing angle display and capacitive touch that is built-in. The product delivers a comprehensive human-machine interface (HMI) solution by combining display and touch for industrial HMI control, vehicle navigation, smart POS, medical devices, smart home panels, and portable instruments.
The display brightness is 280 cd/m², with thin and uniform LED side-light backlight that provides high luminous efficiency while still ensuring excellent visibility even in vehicle environments. Moreover, it helps to reduce visual fatigue during long-term monitoring operations.The 800×480 resolution on a 4.3-inch panel is enough for a fine pixel density, resulting in crisp UI text and clear icons. Horizontal information streams and widescreen video are well displayed as such formats typically require a wide aspect ratio. Besides matching the interface design trends of modern smart terminals, this feature can also be very useful for users who prefer wide access to information.It is suitable for applications requiring display of clear and vivid visuals, by providing a combination of high brightness, wide viewing angle, and high resolution.
Textbooks and lectures often emphasize that cost optimization is accompanied by quality degradation. Shenzhen YiTai Optoelectronics Co., Ltd., however, has demonstrated that it’s quite the contrary. They have a 20,000 m2 factory, 20 production lines, and a monthly capacity of 2.5-3 million units, which means that fixed costs per unit are spread out; a 320-strong team, including 28 R&D personnel, work on design optimization and cost reduction; material waste is minimized through 12 years of production experience. The company, which was started in 2014, has earned ISO9001 certification, holds more than 20 patented technologies, and is a national high-tech enterprise. A ten-thousand-level cleanroom and fully automated production lines allow for quality at a lower cost. Apart from more than a thousand TN/HTN/STN/VA, they also supply a huge variety of TFT color screens and custom LED backlights, focusing on the 0.96-inch to 7-inch market. High and low-temperature tests, vibration and anti-interference tests are among the methods of testing the products which help them to lower costs while serving handheld testers, portable medical devices, smart home, and IoT terminal clients. Their products are exported to Europe, America, and Southeast Asia.
We made a 3.5-inch industrial-grade intercom display customized for a top brand communication equipment manufacturer, which utilized a high-brightness IPS fully laminated touch screen and complied with the IP67 protection standard. For the specific demands of the industry, we redesigned the shock-resistant frame and the anti-slip texture to guarantee endurance in extreme conditions. The screen features an intelligent light sensor that automatically adjusts the display mode between day and night based on the ambient light, thereby greatly improving visibility and efficiency even in outdoor working conditions.

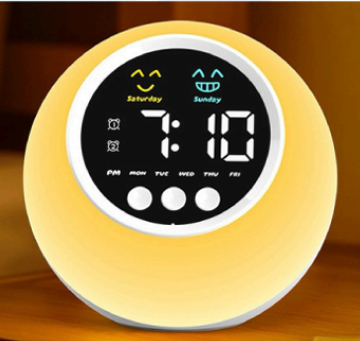

Making a 2.8-inch minimalist clock display for a famous home brand, customized to low-power IPS full lamination technology the wide clear viewing angle of 180° is supported. Since the main use of this type of clock will be in bedrooms, the extra-effort went into the design to make it an ultra-thin borderless one with soft light guide structure. Now it is a perfect match to the aesthetics of the modern home. To the screen was added an intelligent light sensing adjustment system, it can change the display modes automatically upon the change of daylight; At night, the switch to soft light mode is made independently so that the time can still be read clearly but the quality of sleep is not disturbed.
Designed a 5-inch medical-grade touch screen display with the latest technology for a very famous medical device manufacturer. The panel type is IPS, fully laminated, and the device's electromagnetic compatibility meets Class B standards. Through the implementation of antibacterial bezels and anti-glare features we have made the product firmly compliant with medical ergonomic requirements; it is thereby safe and stable even in complex environments such as operating rooms. Besides the above, the display also includes a feature for intelligent adjustment of ambient light that automatically changes the display settings to a given scenario, thus decreasing doctor fatigue and improving work efficiency.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
