Product Description
The module has dimensions of 26.16mm × 29.22mm × 1.5mm, with a thickness of only 1.5mm, making it extremely thin and lightweight, suitable for embedding into micro devices with extremely limited space. This product is capable to be used under very harsh environment conditions because it can work at temperature ranging from -20℃ to 70℃ and the storage temperature is from -30℃ to 80℃. It is RoHS compliant and made of environmentally friendly materials. N133-2424TCBIG01-H12, a product of 1:1 square ratio, IPS full viewing angles, 350 nit high brightness, 4-line SPI minimal interface, revealing the features of a cost effective micro 1.33-inch display solutions.
ST7789V is the tft lcd driver IC. The lowest operating temperature can reach -20°C (-4°F) and the highest is 70°C (158°F).
P/N | N133-2424TCBIG01-H12 |
Size(inch) | 1.33 |
Resolution | 240*240 |
Active Area(mm) | 23.40*23.40 |
Pixel pitch(um) | 97.5*97.5 |
Outline Dimension(mm) | 26.16*29.22*1.5 |
Pixel arrangement | RGB Vertical Stripe |
Display Mode | Normally Black |
Viewing Angle | ALL |
Display colors | 262K |
Brightness(cd/m²) | 350 |
Contrast Ratio | 600:1 |
Interface | 4 Wire SPI |
Back-light | LED Side-light type |
Driver Ic | ST7789V |
Operation Temperature(°C) | -20~70 |
Storage Temperature(°C) | -30~80 |
Response time(ms) | 35 |
Pin Number | 12 |
The N133-2424TCBIG01-H12 is a compact 1.33-inch square TFT LCD module that offers an excellent visual experience with IPS full viewing angles, a built-in ST7789V driver chip, a 240×240 resolution, a 1:1 square ratio, a bright display and a minimal SPI interface. It doubles as the ideal wearable smartwatches, portable medical devices, industrial dashboards, smart home control panels, and micro embedded terminals.
Pixels are 97.5μm × 97.5μm in dimension with vertically aligned RGB strip pixels that produce 262K rich colors. The core benefit of the IPS technology is the ALL-direction viewing angle design, which not only ensures that brightness and colors are perceived the same way whichever the viewing direction—up, down, left and right—but also completely eradicates grayscale and color inversion issues.
The core of Shenzhen Yitai's continuous improvement is the company's entrepreneurial spirit. Over the years, since its establishment in 2014, the company has been deepening efforts to increase the level of operational efficiency at its 20000-square-meter facility, capacity for mass production of 20 production lines is now increased to 2.5–3 million pieces per month. A team of 320 members is engaged in improvement tasks, among them 28 R&D staff are driving technological developments and have been responsible for the accumulation of more than 20 improvement patents. The company has been qualified as a national high-tech enterprise and also successfully passed ISO9001 certification. The company's ten-thousand-level cleanroom and automated production lines are continuously upgraded. Manufacturing portfolio covers more than a thousand TN/HTN/STN/VA products and over a hundred TFT color screens, with the possibility of customizable LED backlights. Focused on the production of small size displays ranging from 0.96 inches to 7 inches only, the company has held on to its culture of continuous improvement for twelve years. Environment testings of products are very strict and products find applications in handheld test, portable medical devices, smart home, and IoT terminal. Also the company exports its products to Europe, America, and parts of South East Asia.

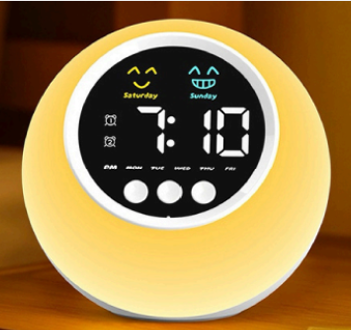

Making a 2.8-inch minimalist clock display for a famous home brand, customized to low-power IPS full lamination technology the wide clear viewing angle of 180° is supported. Since the main use of this type of clock will be in bedrooms, the extra-effort went into the design to make it an ultra-thin borderless one with soft light guide structure. Now it is a perfect match to the aesthetics of the modern home. To the screen was added an intelligent light sensing adjustment system, it can change the display modes automatically upon the change of daylight; At night, the switch to soft light mode is made independently so that the time can still be read clearly but the quality of sleep is not disturbed.

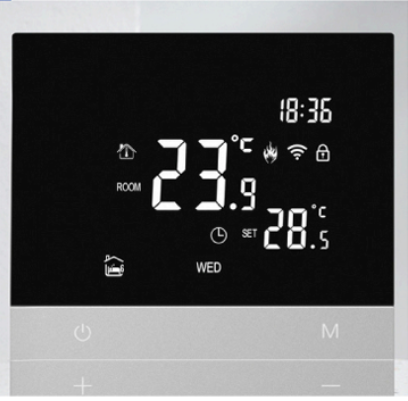

We made a 3.5-inch high-precision temperature control display for a well-known HVAC brand, which utilized the full-view IPS full lamination technology, and multi-touch operation was also supported. Meeting the requirements of a home environment, we went for ultra-thin bezels and a design based on rounded corners, thus perfectly fitting the style of modern interior decoration. The panel features a lighting intelligence function that adjusts the brightness and contrast levels automatically in response to the indoor lighting conditions; therefore, the user's visual experience and energy saving aspects are significantly improved.
Designed and manufactured a 3.5-inch industrial-grade intercom display solution for a famous communications equipment manufacturer. The unit was featuring a high brightness IPS fully laminated touch screen and was compliant with IP67 requirements for dust and water protection. Besides that, shock-resistant frame and anti-slip feature have been improved based on the special needs of the industry so that reliable operation is ensured even under harsh environments. The screen integrates intelligent light-sensing adjustment technology, which facilitates switching between day and night display modes according to ambient light, thereby greatly improving visibility and work efficiency during outdoor operation.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
