Product Details
P/N: | N133-2424TCBIG01-H12 | Size (inch): | 1.33 |
Resolution: | 240*240 | Brightness (cd/m²): | 350 |
Interface: | 4 Wire SPI | Display Area: | ST7789V |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | 20 cm * 30 cm * 40 cm | Delivery Time | 5-8 working days |
Payment Terms | T/T, L/C, Credit card, PayPal | Supply Ability | 500,000 piece per week |
Product Description

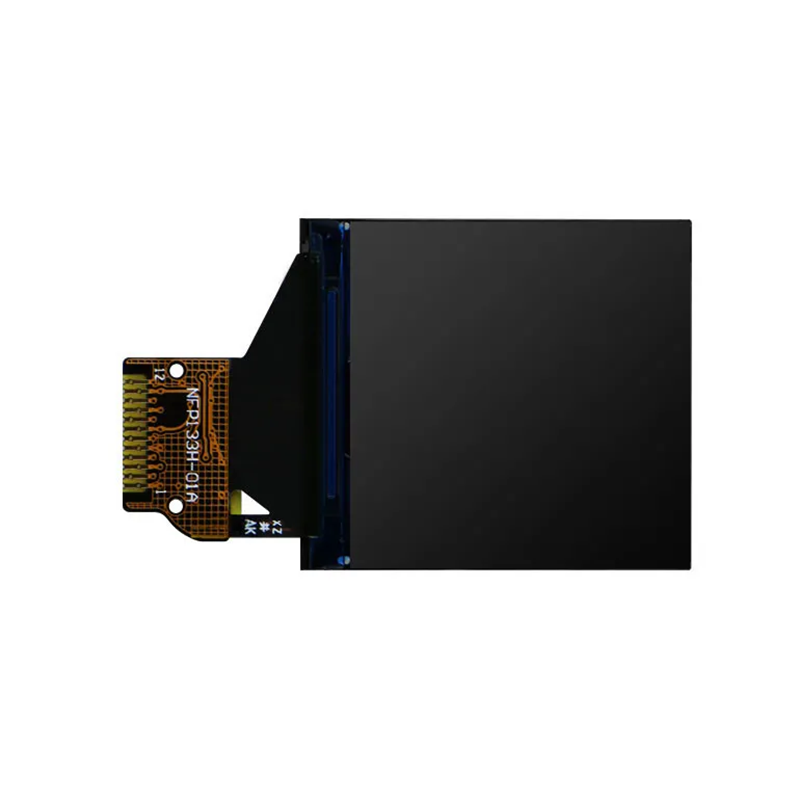

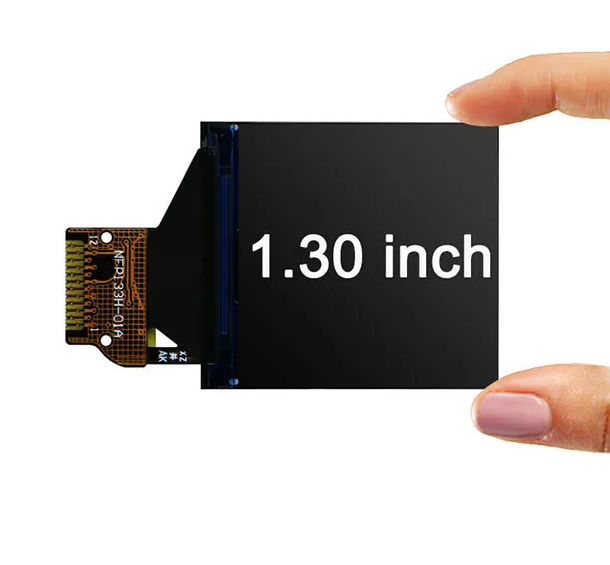

New published TFT LCD Display for commercial and industrial use. Screen size is 1.33 inch. A very common and hot selling size for small size TFT display. Improve your product design by adding our 240 * 240 resolution product. 350 nits allow this lcd to work well indoors.
| P/N | N133-2424TCBIG01-H12 |
| Size(inch) | 1.33 |
| Resolution | 240*240 |
| Active Area(mm) | 23.40*23.40 |
| Pixel pitch(um) | 97.5*97.5 |

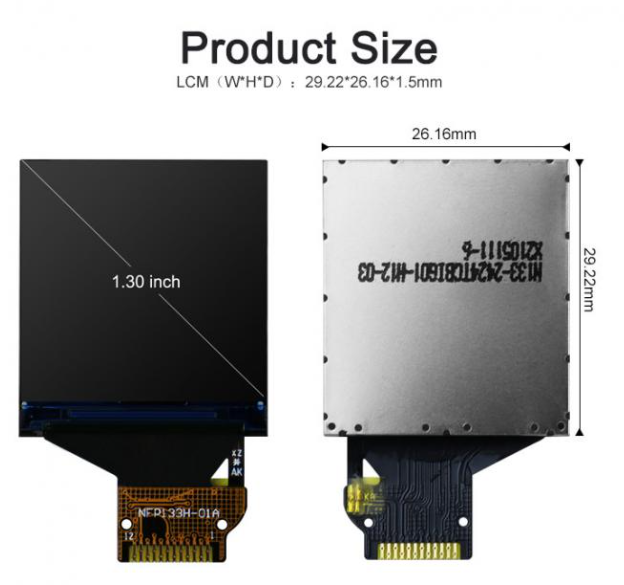

| Outline Dimension(mm) | 26.16*29.22*1.5 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | ALL |
| Display colors | 262K |
| Brightness (cd/m²) | 350 |
| Contrast Ratio | 600:1 |
| Interface | 4 Wire SPI |
| Back-light | LED Side-light type |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 12 |
The Interface of this LCD is 4 Wire SPI. We can also customize other types of interfaces and FPCs for you. ST7789V is the driver IC of the tft lcd. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).
Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: Can I pay the order with credit cards or PayPal?
A: We accept PayPal and credit card for sample, T/T paid for mass order. We also accept advanced percentage (usually 30% before producing) for large orders.
Q: Do you have products in stock? How long will it take for delivery?
A: Our inventory is mainly raw materials, semi-finished and a small number of finished products. After payment, sample available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 3-4 weeks. Our sales will serve you these details before shipping.
Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
