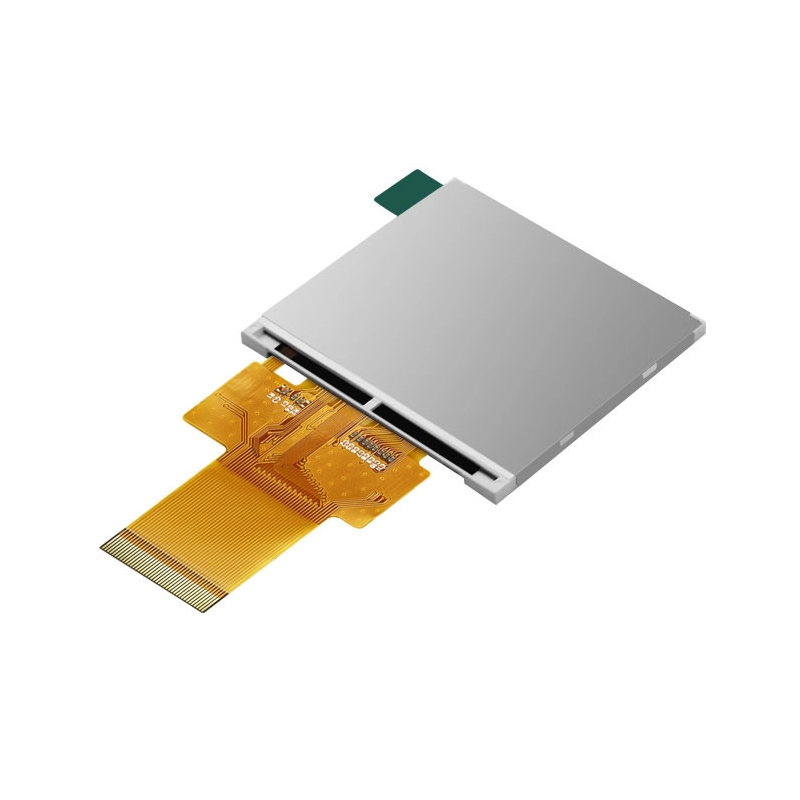

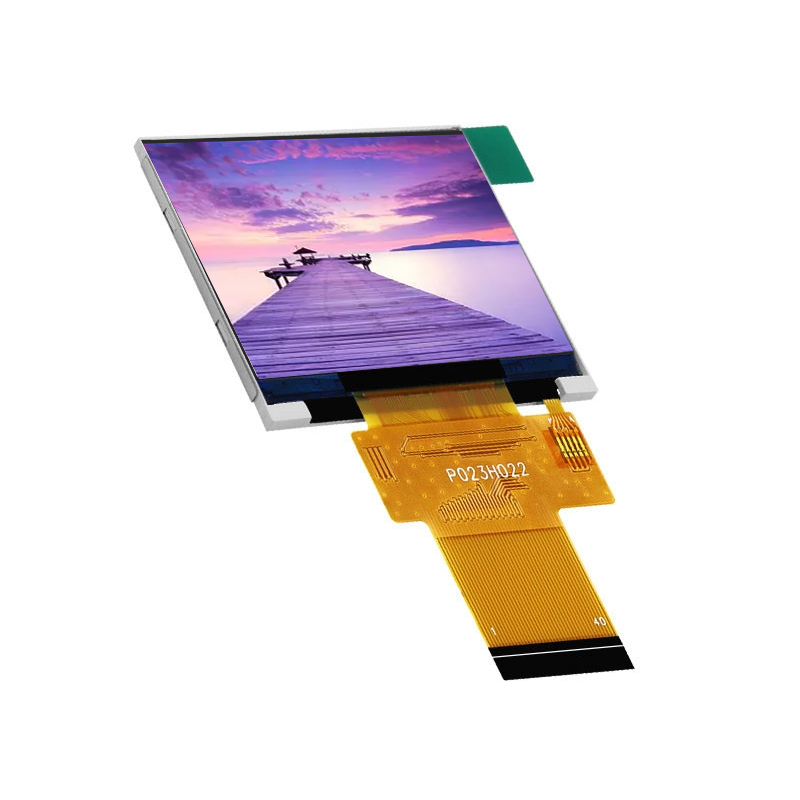

This Medical LCD Display functions as a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) panel that employs amorphous silicon TFT for switching. Our LCD is exactly what you need if your device calls for a size 2.31 inch. Further enhance your product design by incorporating our 320 * 240 resolution product. Under normal operating conditions, the QC department confirmed that the luminance is 300 nits.
| P/N | P022H022 |
| Size(inch) | 2.31 |
| Resolution | 320*240 |
| Active Area(mm) | 46.75*35.06 |
| Pixel pitch(um) | 146.1*146.1 |
| Outline Dimension(mm) | 50.96*45.80*2.40 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 6 0'CLOCK |
| Display colors | 262K |
| Brightness(cd/m²) | 300 |
| Contrast Ratio | 600:1 |
| Interface | RGB 18bit |
| Back-light | LED Side-light type |
| Driver Ic | ILI9342C |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 40 |

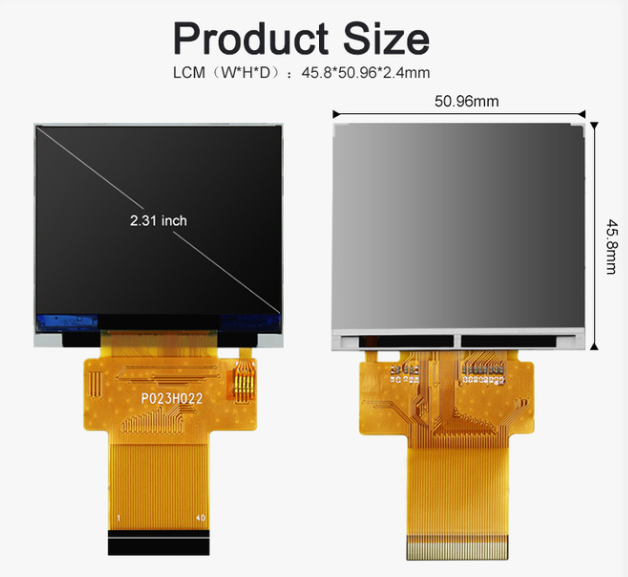

The unit measures 50.96mm × 45.80mm × 2.40mm, having a small and slim design. The FPC flex cable is highly flexible and can be used without difficulty even in such tight spaces of the portable devices. It can work in a temperature range of -20℃ to 70℃ and can be stored within a range of -30℃ to 80℃. It also has a great level of resistance to such external factors. Therefore, it will provide not only stable operation but also maximum running time in such places as hospital departments, field emergency sites as well as industrial locations where there are continuous changes in temperature and humidity.This item is RoHS environmentally certified because it is lead-free and halogen-free and the ones which comply with global medical device export regulations are made of similar materials. Due to the fact that the main advantages of the P023H022 are 18-bit accurate color depth, 600:1 high contrast ratio, and medical-grade reliability, it is a solution number one in the 2.31-inch professional display segment, which perfectly balances image quality and precision.
The active display area measures 46.75mm × 35.06mm and the pixel pitch is 146.1μm × 146.1μm. The RGB vertical stripe pixel layout is capable of rendering 262K colors in different gradations of hues. The 18-bit RGB true color interface ensures a full 262,144-color output, featuring seamless and smooth color transition with color banding hardly noticeable. This makes it perfect for medical imaging that requires very accurate color rendering such as the display of grayscale images, plotting of waveforms as well as data visualization with extremely high precision.The normally black (NB) display mode, together with a 600:1 ultra-high contrast ratio, delivers dark areas that are deep and pure and details are sharp in bright areas, thus subtle signal fluctuations and tissue texture differences are clearly visible.
Since its inception in 2014, Shenzhen Yitai Optoelectronics has grown into a national high-tech enterprise with 12 years of experience in display manufacturing. Our 20,000㎡ self-owned factory is equipped with 20 automated LCD production lines and a 10,000-class dust-free workshop. Having 320+ employees, our monthly output is 2.5–3 million units to meet large-scale order demands. Our 28 strong professional R&D team incessantly works for the innovation, resulting in developments of over 1,000 TN/HTN/STN/VA displays and various TFT color LCD screens. We mainly concentrate on 0.96–7 inch small-size displays for industrial and consumer fields and provide customized LED backlight services. We have more than 20 patents and are ISO9001 certified. We firmly follow the principle of customer first and quality foremost and, therefore, all our products are subjected to rigorous tests so as to ascertain stable performance even in the most complex environments. Besides, continuous upgrading of our production lines have been keeping our manufacturing capability at the leading level in the industry. Our products serve various sectors such as medical devices, smart home, IoT, and testing equipment. Besides that, our products are also highly demanded in China, Europe, America, and Southeast Asia.
We developed a 2.8-inch minimalist clock display specifically tailored to a famous home brand by utilizing low-power IPS full lamination technology and allowing the display to be viewing from 180° wide angle clearly. To match typical bedroom usage scenario, we have designed ultra-thin borderless screen and soft light guide structure, both of which go very well with home modern decoration styles. The screen also comes inbuilt with an automatic light-sensing adjustment system that changes the display mode under varying daylight conditions and at night time the screen is switched automatically to soft light mode so that even if time is visible one will not be disturbed in sleep
For a famous communication equipment brand, we tailormade a 3.5-inch industrial-grade intercom display. The display embraces a bright IPS fully laminated touch screen that meets IP67 protection standards. Upgrading the shock-resistant frame and anti-slip texture design are features that meet the specific needs of the industry, making these devices reliable even in harsh environments. Touching on the screen, light-sensing adjustment technology allows the code to be separated into day and night modes according to the level of surrounding light. Therefore, working in the outdoor environment is made easier since visibility and operational efficiency are dramatically improved.
A power equipment manufacturer known brand has tasked us to develop a customized 4.3-inch industrial-grade instrument display with the help of high-contrast IPS full lamination technology, which meets IP65 protection level standards.We have upgraded the dustproof and waterproof structures and he wide temperature design (-30°C to 70°C) for the power industry requirements. Now the instrument display works stably in complicated conditions such as substation level. The screen houses an adaptive brightness adjustment system that automatically adjusts display effects according to the surrounding light, thus greatly increasing data reading efficiency and operational safety during outdoor inspections.
