Product Description
| P/N | P028H088-V3 |
| Size(inch) | 2.8 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 300 |
| Interface | 8080 MCU 16bit |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |

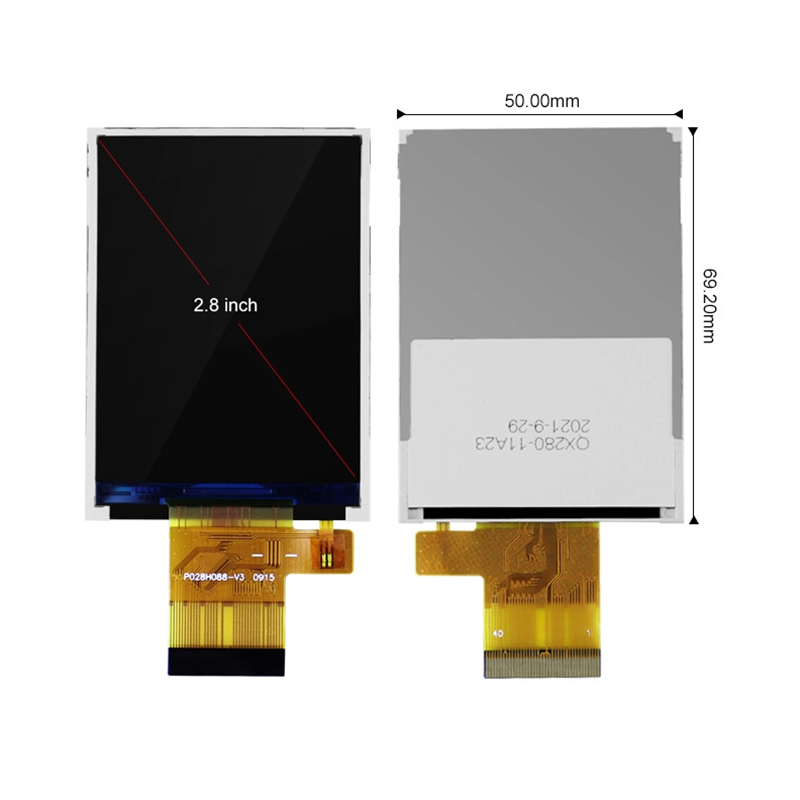

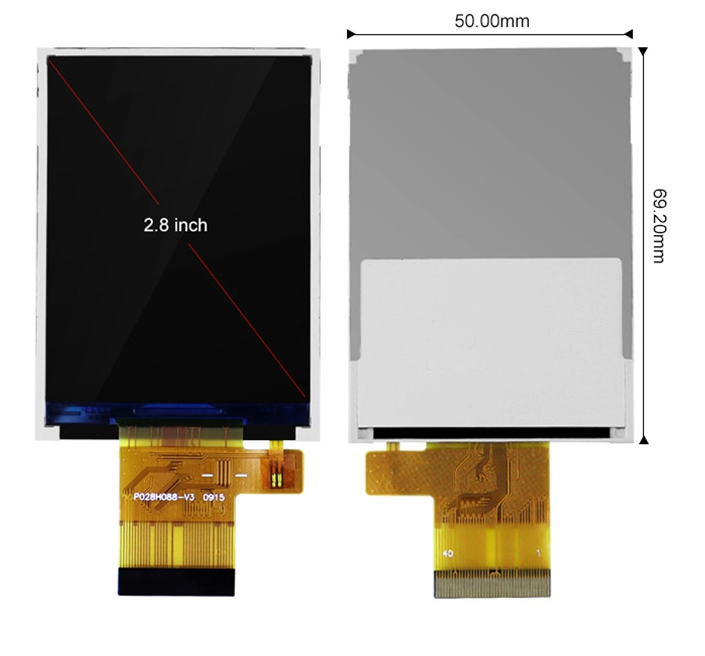

The module measures 50.00×69.20 mm with a thickness very thin, while its effective display area is 43.20×57.60 mm that make it extremely efficient in terms of space usage. At the front, there is a black display panel enclosed by a border of silver metal frame. The display, when turned off, produces a very rich and pure black color which makes the panel to have a minimalist and premium appearance; on the other hand, the gray backlight module at the rear is flat and regular, and tightly fits into the back case of the device. The edge at the end of the FPC cable is labeled with the number 40 and the pins from 1 to 40, the gold finger area is smooth and flat allowing for easy alignment and connection.
Regarding the environmental adaptability aspect, the operating temperature range is from -20℃ to 70℃, and the storage temperature range is -30℃ to 80℃, thereby supporting the proper functioning of devices in cold outdoor situations all the way to hot industrial control terminals. Furthermore, even the colour of an image under the gradient light display changes softly, and the brightness is evenly spread out, which visually illustrates the module’s superior display capability as well as the finely detailed work of its manufacturing.

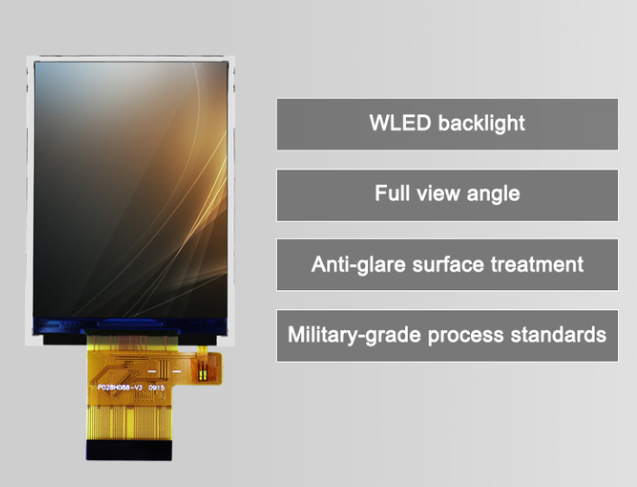

Achieving such high module brightness of 300 cd/m² is primarily through adopting the WLED backlight solution at the same time the illumination factors such as uniformity and stability along with excellent color temperature consistency are of great help in making content highly visible in usual indoor rooms. At the visual level, the full view angle panel technology allows the users to quite freely choose various viewing directions, whether it is up, down, left, or right without leading to color distortions. So it’s highly suitable for smart home control panels, educational demonstration terminals as well as the public information display devices that have multiple users.
Technical standardization is one of the main elements of Shenzhen YiTai Optoelectronics Co., Ltd’s quality. The company has developed more than 20 patented technologies and has documented 12 years’ technology experience as several standard documents. There are about 320 users who work under such standards, and also 20 production lines can produce from 2.5 to 3 million latest extremely consistent units per month. ISO9001 certification encourages the standardization development, while being recognized as a national high-tech enterprise serves as the sign of the value of standardization. The company has a facility of 20,000 square meters; a Class 10,000 cleanroom and fully automated LCD production lines are amongst the factors that allow it to strictly adhere to standardized processes. It provides more than a thousand types of TN/HTN/STN/VA products together with hundreds of TFT color screens and led-backlights customization, mainly focused on the market from 0.96 inches to 7 inches. The products go through a number of testing procedures that prepare them for different applications especially in the fields of medicine, inspection, smart home, and IoT. Thanks to technical standardization, they can be also made for export to Europe, the United States, and Southeast Asia.
We tailored a 4.3-inch charging pile interactive screen making use of high-brightness IPS full lamination technology for a famous new energy brand. Besides, it complies with IP65 protection level requirements. To tackle outdoor challenging environments, we further developed the anti-glare style and wide operation temperature range (-30°C~70°C), which guarantee the display remains visible under different weather conditions. Also, the screen features a smart light-sensing adjusting mechanism capable of automatically adjusting the display brightness depending on the day and night light changes, thus significantly upgrading the user operation experience.
We designed a 3.5-inch very accurate temperature control display for a famous HVAC brand by employing full-view IPS full lamination technology and multi-touch operation support. For the home environment, we came up with an ultra-thin bezel and rounded corner design that goes well with interior decoration styles that are both modern and elegant. The screen has a feature that is a light intelligent adjustment of ambient light that makes the display brightness and contrast decor automatically with the change of indoor lighting leading to a great user operation experience and energy efficiency.
Using high-contrast IPS full lamination technology we made a 3.5-inch high-definition dashboard display for the client that ensured clear visibility even in bright light conditions. Taking automotive-grade requirements into consideration, we came up with the ultra-narrow bezel and curved design that are perfect for the cockpit interior style. The display includes a smart light sensor that not only detects the ambient light but also adjusts brightness and color temperature automatically, thereby significantly enhancing driver safety and visual comfort.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
