| P/N | P028H025-V2 |
| Size(inch) | 2.8 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 270 |
| Interface | MCU 16bit |
| Driver Ic | ILI9341V |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 37 |
This 2.8-inch TFT LCD display module, model P028H025-V2, features a core configuration of an 8080 MCU 16-bit parallel bus interface and is meticulously designed for embedded applications that require high refresh rates and large data throughput. The module has a resolution of 240×320 pixels, delivering high-definition and delicate image quality on the 2.8-inch display area, with sharp text edges and rich icon details. It is widely used in scenarios with high demands for display quality and interactive experience, such as portable medical devices, industrial handheld terminals, smart home control panels, portable gaming consoles, and outdoor inspection instruments.
In terms of structural design, the module has dimensions of 50.00×69.20×2.30mm, with a thickness of only 2.30mm, making it ultra-thin and easy to embed in compact devices with limited space. The active display area is 43.20×57.60mm, maximizing space utilization. The front features a black display panel with a silver metal frame for a refined and professional appearance. The back consists of a white light guide plate layered with a gray backlight module, providing a flat and orderly structure. The FPC flex cable extends from the bottom and supports both soldering and plug-in connection methods, allowing engineers to flexibly choose according to production line processes, which reduces assembly difficulty. The FPC cable is printed with the model identifier P028H025-V2-TP and batch code H-0724 for easy quality traceability.
Continuous improvement is part of the cultural DNA of Shenzhen Yitai Optoelectronics Co., Ltd. The company holds quality improvement meetings every month, seeking optimization opportunities for every process on 20 production lines with a monthly capacity of 2.5 to 3 million pieces. The 320-member team, including 28 R&D personnel, participates in improvements, accumulating thousands of improvement proposals over 12 years. ISO9001 certification requires continuous improvement, and more than 20 patented technologies record the results of these improvements. The qualification as a national high-tech enterprise recognizes the value of continuous improvement. The 20,000-square-meter base, Class 10,000 cleanroom, and fully automated LCD production lines serve as a te sting ground for improvement. The company focuses on over a thousand TN/HTN/STN/VA products, hundreds of TFT color screens, and customized LED backlight sources, targeting the 0.96-inch to 7-inch market. Products undergo rigorous testing and are widely used in the fields of medical, inspection, smart home, and the Internet of Things. Continuous improvement drives products to be exported to Europe, America, and Southeast Asia.

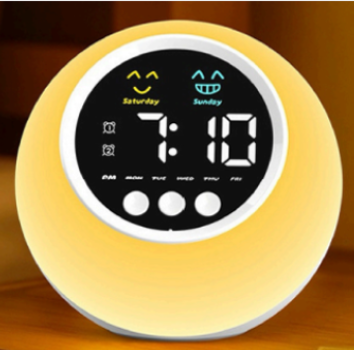

We custom developed a 2.8-inch minimalist clock display for a well-known home brand. We used a low-power IPS full lamination, 180° full viewing angle, ultra-thin borderless design, and soft light guide structure. It intelligently switches between day and night modes according to changes in lighting, and the gentle light at night does not disturb sleep, ensuring the time is clearly visible without affecting sleep quality, perfectly matching modern home aesthetics.

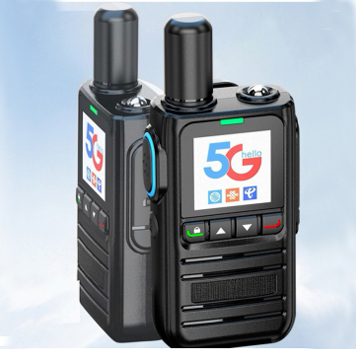

Customized development of a 3.5-inch industrial-grade walkie-talkie display for a well-known communication equipment manufacturer, using high-brightness IPS full lamination touch screen, meeting IP67 protection requirements. For industry needs, the shock-resistant frame and anti-slip texture design have been optimized for reliable operation in harsh environments. It features intelligent light-sensing automatic switching between day and night modes, clear visibility under strong light, significantly improving outdoor working visibility and operational efficiency.
A 4.3-inch industrial-grade instrument display was custom-developed for a well-known power equipment manufacturer. It uses high-contrast IPS full lamination technology and meets the IP65 protection level. To address the specific needs of the power industry, it features an optimized wide temperature design from -30°C to 70°C and a dustproof and waterproof structure suitable for substation environments, ensuring stable operation in complex settings such as substations. The adaptive brightness automatically adjusts, enhancing the efficiency of outdoor inspections and operational safety.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
