| P/N | P024C115 |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 260 |
| Interface | 4 Wire SPI |
| Driver Ic | ST7789V3 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 10 |
Supported by 4 Wire SPI, this type of TFT LCD can be used in many applications. ST7789V3 is the driver IC of the tft lcd.
Operating temperature of the device is -20°C to 70°C, whereas storage temperature ranges from -30°C to 80°C which align with requirements of industry standards.

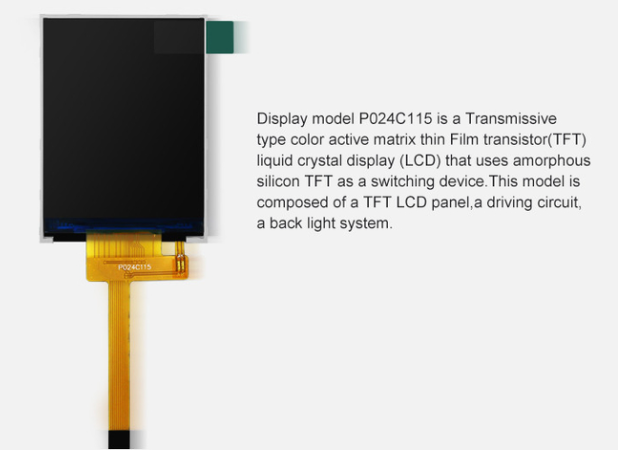

The module uses a 240×320 pixel display grid, having 240 RGB×320 pixels, which allows for high-definition and very detailed image presentation despite the relatively small 2.4-inch size. This is a transmissive active-matrix thin-film transistor (TFT) LCD with amorphous silicon TFTs employed as pixel switching elements. By integrating the driving circuitry together with the backlight system, this forms a fully functional display module that is not only mature and reliable but also capable of delivering stable image quality. A brightness level of 260 cd/m² is achieved, thereby content is easily readable in a normal indoor environment. The backlight system is very efficient and produces an evenly distributed emission of light while being energy-saving.

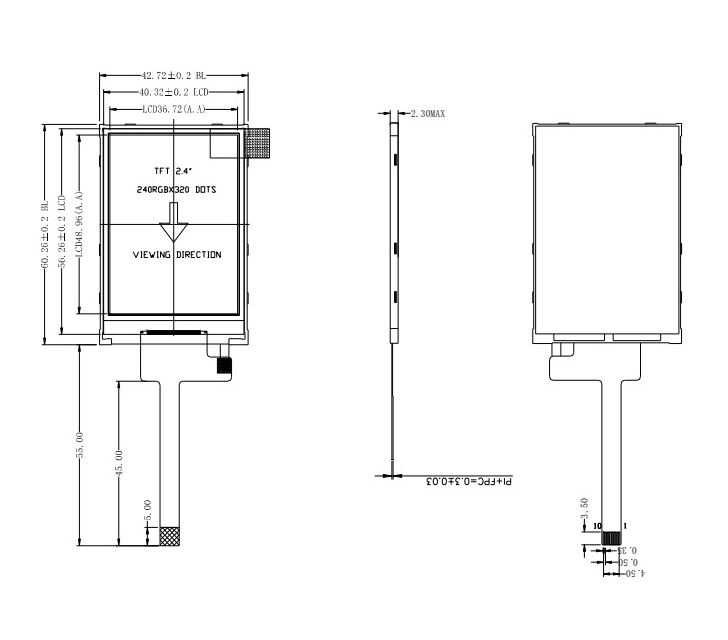

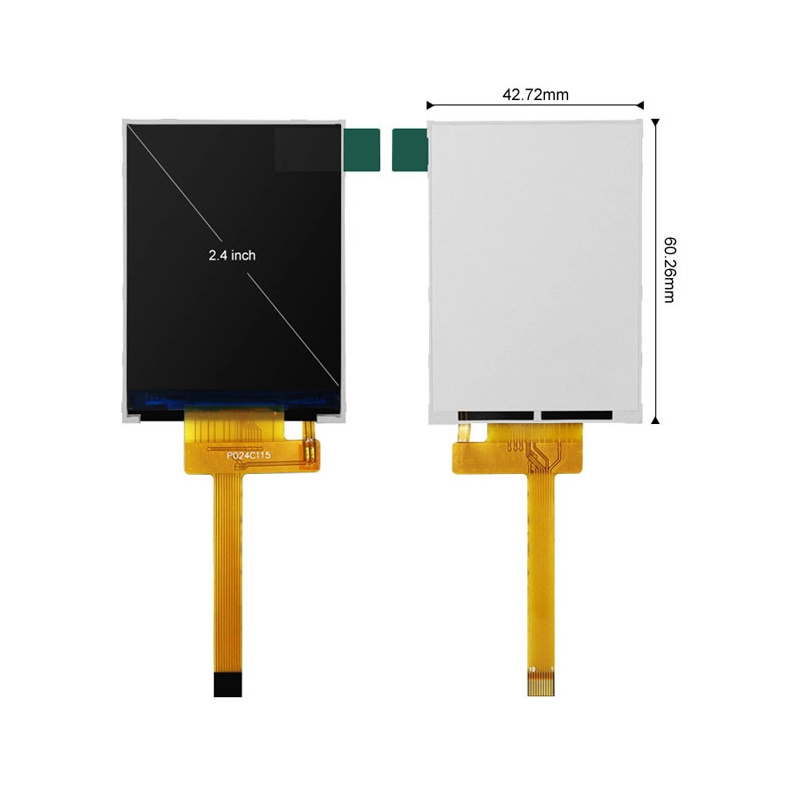

The width of the backlight area is 42.72±0.2mm, the width of the LCD display area is 40.32±0.2mm, and the width of the effective display area is 36.72mm; the total height is 60.26±0.2mm, the height of the LCD display area is 56.96mm, and the height of the effective display area is 48.96mm. The width of the FPC gold finger is 10mm and the alignment accuracy between the PI and FPC is controlled at 0.3±0.03mm. All key dimension tolerances are strictly following the industry standard so that high consistency and structural interchangeability in large-scale production are guaranteed.
Shenzhen Yitai Optoelectronics Co., Ltd.'s industrial structure has the knowledge-intensive feature. More than 20 patent technologies have been produced by the 28-person R&D team, whose output per capita is far above the industry average; a 320-person team possesses 12 years of process knowledge, continuously increasing the per capita skill value. The company was established in 2014, using a 20,000-square-meter base and 20 production lines to reach a monthly output of 2.5 to 3 million units, thereby transforming knowledge into production capacity. The company continuously improves knowledge intensity through ISO9001 certification, national high-tech enterprise qualification, a cleanroom at a ten-thousand-level, and fully automated production lines. Shenzhen Yitai Optoelectronics Co., Ltd., with more than a thousand TN/HTN/STN/VA products, over a hundred TFT color screens, and custom LED backlights is mainly focused on small-sized displays from 0.96 inches to 7 inches. The products are subjected to tests of high and low temperature, vibration, and anti-interference and find extensive applications in medical, inspection, smart home, and IoT terminals. The knowledge-intensive underpinning is the domestic and international strong sales of the company's products.
Made-to-order design of a 2.8-inch ultra-simple clock display for a well-established home brand, employing low-power IPS full lamination technique and allowing for clear viewing even at 180° wide angles. Taking into account bedroom scenarios, the extremely thin borderless style was optimized together with the soft light guide structure for the perfect harmony with the new home environment. There is an intelligent light-sensing adjustment system built into the panel which can change display modes automatically in response to daylight changes and also, at night, it switches to soft light mode automatically so that the time can be read without disrupting sleep.
A 3.5-inch industrial-grade intercom display using a high-brightness IPS fully laminated touch screen was customized development for a famous communication equipment manufacturer, capable of meeting IP67 protection requirements. Made with the special needs of the industry in mind, we have ensured that reliable operation in harsh environments is possible. To be more exact, there is a shock-resistant frame and anti-slip texture design. The screen is equipped with intelligent light-sensing adjustment technology that can automatically switch between day and night display modes based on ambient light, significantly enhancing visibility and operational efficiency during outdoor work.

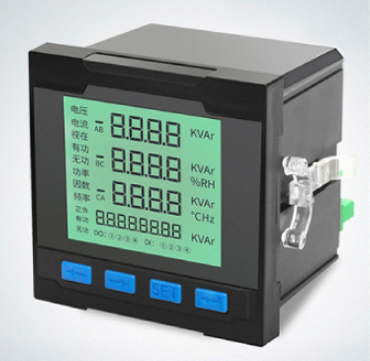

The development of a 4.3-inch industrial-grade instrument display for a well-known power equipment manufacturer was customized using high-contrast IPS full lamination technology, to meet IP65 protection level requirements. Dustproof and waterproof structures as well as designs that can withstand extreme temperatures (-30°C to 70°C) were the main necessities of the power industry that we addressed in the local power environment, such as substations, where the unit has to remain stable and the display must function properly. A brightness detection system that can adjust to the surrounding lighting condition, thereby allowing users to read data more efficiently and safely during outdoor inspections, is built into the display.
