Product Description
| P/N | P028H042 |
| Size(inch) | 2.8 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 300 |
| Interface | MCU 8/16bit SPI3/4-wire |
| Driver Ic | ILI9341V |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |
Supported by MCU 8/16bit SPI3/4-wire, this type of TFT LCD can be used in many applications. ILI9341V is the driver IC of the tft lcd. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.

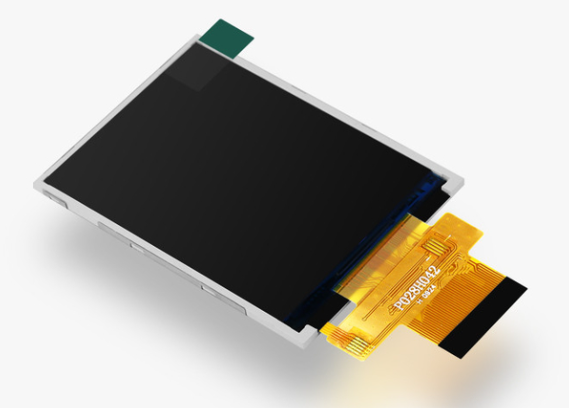

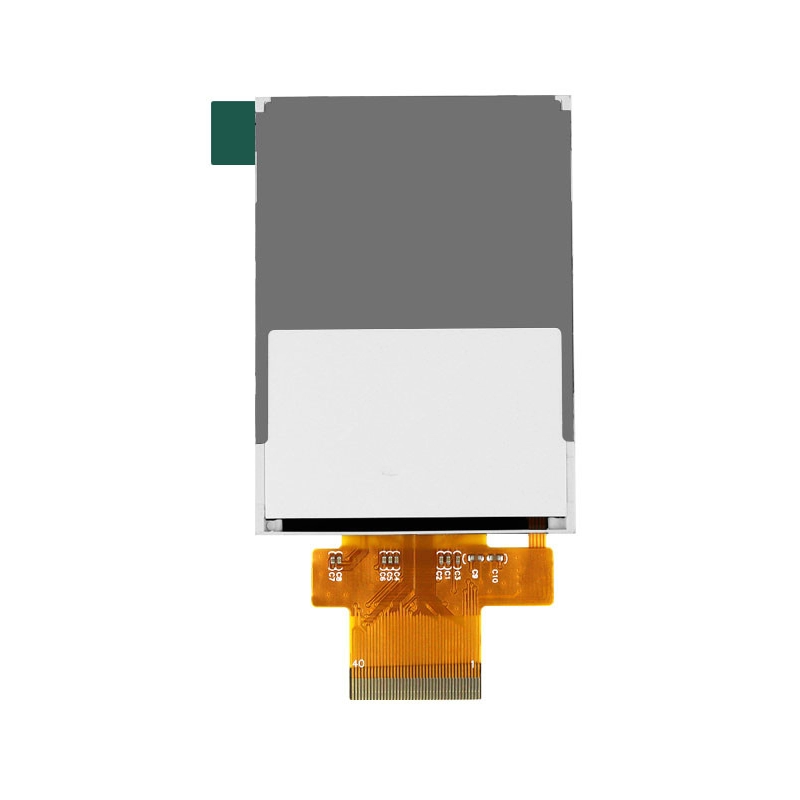

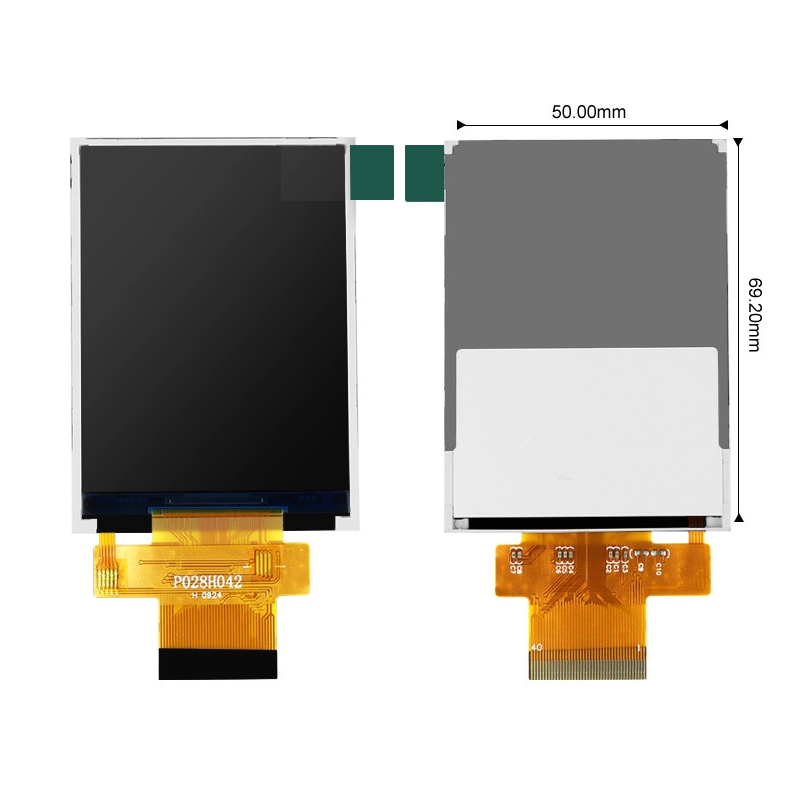

Display model P028H042 is a Transmissive type color active matrix thin Filmtransistor(TFT)liquid crystal display (LCD) that uses amorphous silicon TFTas a switching device.This model is composed of a TFT LCD panel,a drivingcircuit,a back light system.
Achieving both scale and customization, Shenzhen YiTai Optoelectronics Co., Ltd. breaks the traditional paradox. With 20 production lines producing 2.5 to 3 million units per month, the scale supports the customization needs of over a thousand TN/HTN/STN/VA products and hundreds of TFT color screens; the 320-member team, including 28 R&D personnel, embeds flexible customization within scale. Founded in 2014, the company has a 20,000-square-meter base, 12 years of experience in scale customization, ISO9001 certification, over 20 patented technologies, and the qualification of a national high-tech enterprise. A ten-thousand-level cleanroom and fully automated LCD production lines realize scale customization. Custom LED backlight services enhance the depth of customization. Focusing on the 0.96-inch to 7-inch market, products undergo rigorous testing and are widely used in medical, inspection, smart home, and IoT fields, while the scale customization capability ensures products are sold extensively overseas.
We customized a 4.3-inch charge pile interactive screen for a famous new energy brand, using the highest brightness IPS full lamination technology, which still fulfills the requirements of the IP65 protection level. We specially designed the anti-glare feature and the operation of wide temperature range (-30°C~70°C) in the outdoor environment for a complex environment, so as to ensure that the display is always clear irrespective of the weather conditions. Besides, the screen is capable of intelligent light adjustment, which automatically adjusts the brightness of display according to the changes of light during the day and night, thereby greatly improving the user's experience.
We customized a 3.5-inch industrial-grade intercom display for a renowned manufacturer of communication equipment, using a high-brightness IPS fully laminated touch screen, this product complies with IP67 protection standard. We have made an optimization for the shock-resistant frame and anti-slip texture design, as per the special requirements of the industry, the result is the equipment that guarantees operation in harsh environments reliably. The screen is made with light-sensing technology that automatically changes between day and night modes based on the surrounding light, greatly enhancing visibility and operational efficiency during outdoor work.
We customized a 4.3-inch industrial-grade instrument display for a famous power equipment manufacturing company by applying a high contrast IPS full lamination technology, which still fulfills the requirements of the IP65 protection level. We optimized the dustproof and waterproof structure as well as the design for wide temperature (-30°C to 70°C) in line with the special needs of the power industry, thereby ensuring that the operations inside substations, which are one of the most complex environments, remain stable. The screen incorporates a brightness adjustment system that is adaptive which means it can automatically change the display effects the most suitable for the ambient light, besides this, it helps to increase data reading efficiency and operational safety during outdoor inspections.
