Product Description
Parameter:
| Model | P024C128-CTP |
| Screen Size | 2.4 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 36.72(H)x48.96(V)mm |
| Pixel pitch | 51(H)x153(V)um |
| Pins | 16 pins |
| Outline Dimension | 42.72x60.26x3.35mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally White |
| Viewing Direction(eye) | 12 0'CLOCK |
| Display Color | 262K |
| Luminance(cd/m2) | 260 nit |
| Contrast Ratio | 250:1 |
| Interface | 4W SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789V |
| CTP IC | FT6336U |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Advantages
1.High-resolution display: Their top-tier display performance comes from a resolution reaching up to 240x320 pixels, ensuring that visuals and videos appear highly detailed and sharp.
2.Wide viewing angle: It is a known fact that TFT LCD tech has a very generous wide viewing angle so people who view the screen from different angles still enjoy a clear picture without any distortion or color shift.
3.Color display: It produces as many as 262,144 colors which help it to achieve very precise color rendering and therefore it becomes the best option for displaying images and videos.
4.Touch screen support: They are giving support for capacitive touch screen input which allows users to do tap, slide, zoom gestures with their fingers.
5.Low power consumption: It has very low power consumption features which is very important for battery operated devices.
6.Durability: TFT LCD modules have very strong construction and can resist shock and vibration which making them suitable for different applications including handheld devices, automotive displays, and medical equipment.
7.Customization: They can be tailored to meet the very specific demands of the customer including different sizes, resolutions, and features.

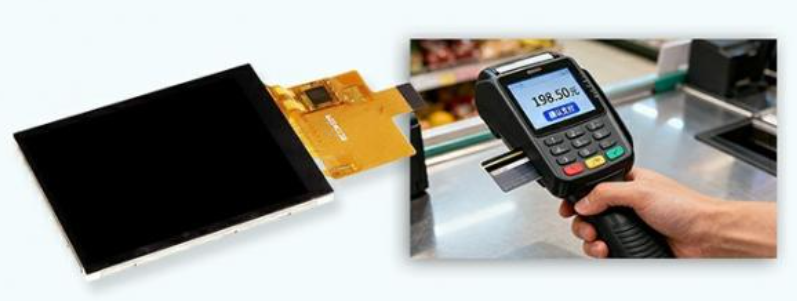

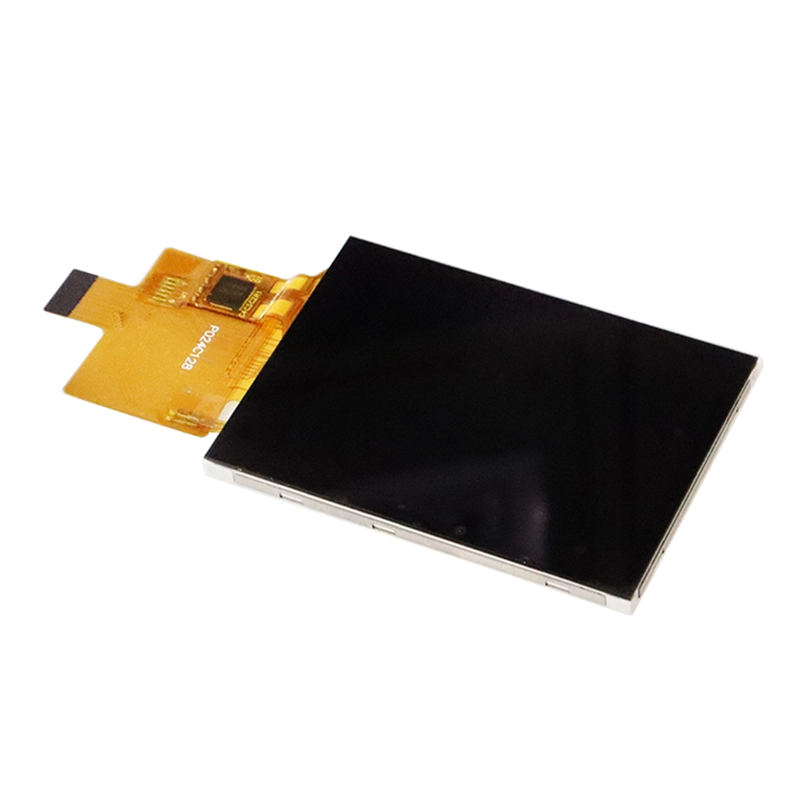

It's a combination of 2.4 inch transmissive TFT LCD display and capacitive touch that is compactly integrated within the P024C128-CTP TFT LCD module. It is featuring a ST7789V display driver internally and a capacitive touch IC FT6336U with a resolution of 240×320 pixels (QVGA portrait). Through high integration, minimalistic interface, and sensitive touch, it delivers a one-stop human-machine interaction solution for portable POS terminals, handheld gaming devices, industrial scanners, smart wearables, and IoT interactive devices.

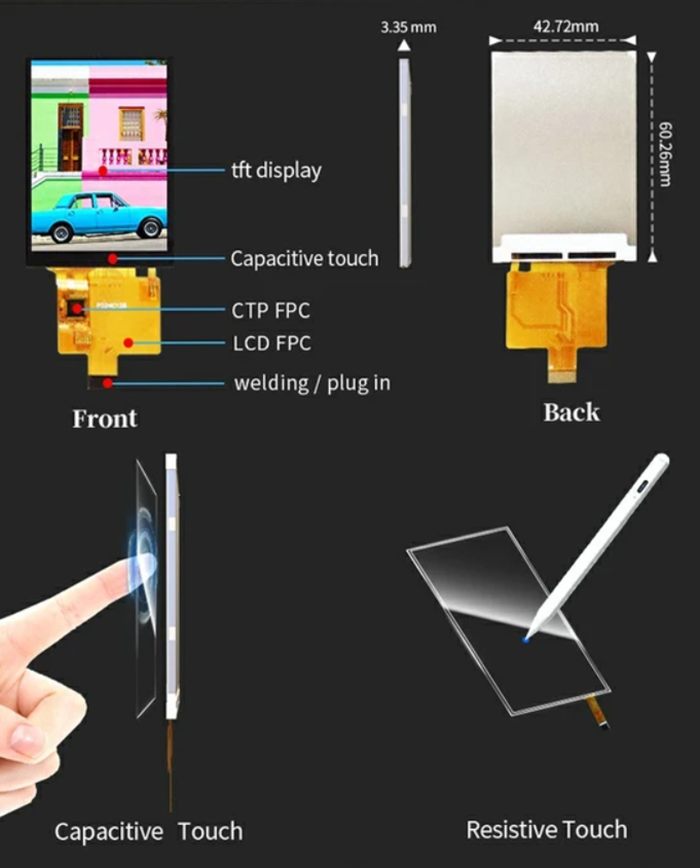

The P024C128-CTP is a very compact sized module at just 42.72mm × 60.26mm × 3.35mm, yet it comes with excellent FPC bending performance as well as a very small thickness which allow it to be easily flexibly incorporated in the narrow device spaces. The product demonstrates superior adaptability to working environment with an operating temperature range from -20°C to 70°C and a storage temperature range from -30°C to 80°C, it is capable of handling seasonal temperature changes and alternating high and low temperatures in the industrial environments. This item is also a RoHS product and apart from being built with environmentally friendly materials it also meets the global export regulations. Thanks to the core features including integrated display and touch, 4-wire SPI minimalist interface, high-brightness transmissive display, and sensitive FT6336U touch, the P024C128-CTP module is easily the most cost-effective option among 2.4-inch medium and small-sized smart interactive terminals.
The Shenzhen Yitai Optoelectronics Co., Ltd. is an active player in the integration of the display industry ecosystem through combining upstream and downstream partners' cooperation with its own business operation since 2014. Having a 20,000 sqm plant equipped with 20 production lines that can churn out 2.5-3 million units a month, it is a part of manufacturing hub in the ecosystem. The organization of 320 employees features 28 R&D members who are behind more than 20 patented technologies contributing to ecological innovation. Being a certified national high-tech company with ISO9001, they run a ten-thousand-level cleanroom for LCD and fully automated lines. The company can boast of 1000+ TN/HTN/STN/VA modules and 100+ TFT color screens. Also, LED backlights can specifically be taken to the nearest ecosystem partners for customization. Mainly that small-sized 0.96-7 inches segment that is subjected to testing, distribution, and export for the joint building of the industry ecosystem, etc. The main users of the products are in medical, inspection, smart home, and IoT fields.

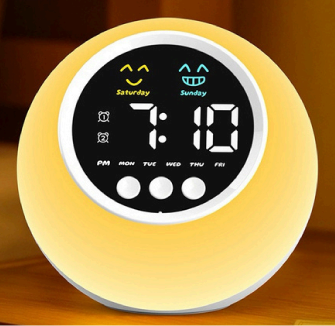

Minimal clock display made from 2.8-inch IPS full lamination with low-power technology and capable of very clear 180° wide viewing angles was ordered through a Chinese project company by a famous domestic brand. An ultra-thin borderless design and soft light guide structure, which are the features of the bedroom usage scenarios, were optimized for matching a modern home style. A light sensor system that controls display brightness mode changes automatically with daylight changes, and at night, switching to soft light mode so that the time is visible without disturbing sleep are integrated into the clock display.
The development of a high-precision 3.5-inch temperature control display with multi-touch operation was undertaken by a famous HVAC brand. Brightness and contrast of the display are optimized automatically by ambient light through the ambient light intelligent adjustment function that the screen integrates which really enhances the user operation experience and energy efficiency. Emerging from the requirements of home environments is the ultra-thin bezel and rounded corner design perfectly matching modern interior decoration styles.
The 4.3-inch industrial-grade instrument display was developed using highly contrasted IPS full lamination technology compatible with IP65 protection level according to the customer's brief. For the specific needs, the power industry, we have updated the dustproof and waterproof structure and the wide temperature design (-30°C to 70°C) to make sure that the display is working well in complex environments such as substations. Brightness adaptively depending on ambient light, display effects auto-optimization, is what the brightness adjustment system is capable of doing - an important feature since it can be used with the data reading efficiency and operational safety being outdoor inspection markedly improved.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
