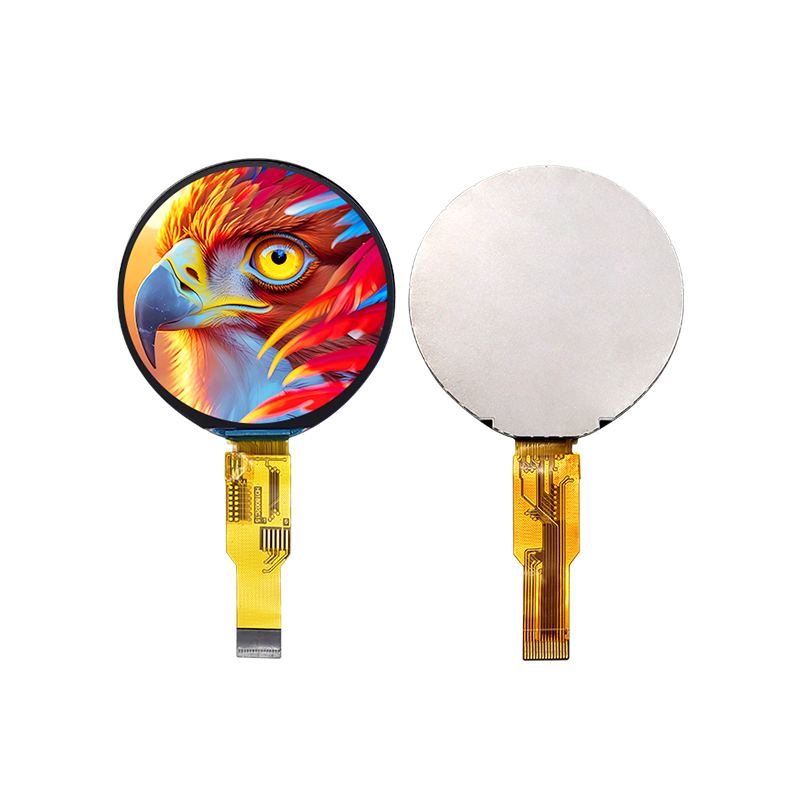

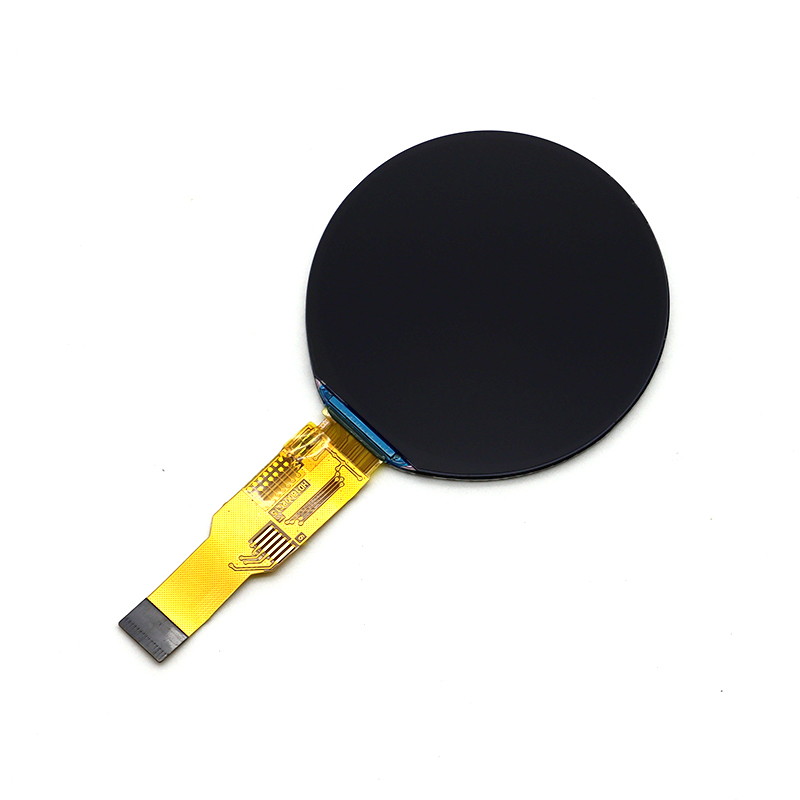

ZM18002C15 is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display(LCD) that uses amorphous silicon TFT for the switching device. This unit consists of aTFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The 1.8" resolution contains a 360 RGB X360 pixels and can display up to 262k colors.
Product Name: 1.8" Color Screen
Product Size: 1.8 inch
Resolution: 360 × 360
Display Type: Color
Driver IC: ST77916
Connection Method: Plug-in 15P
Power Supply: 2.8V–3.3V

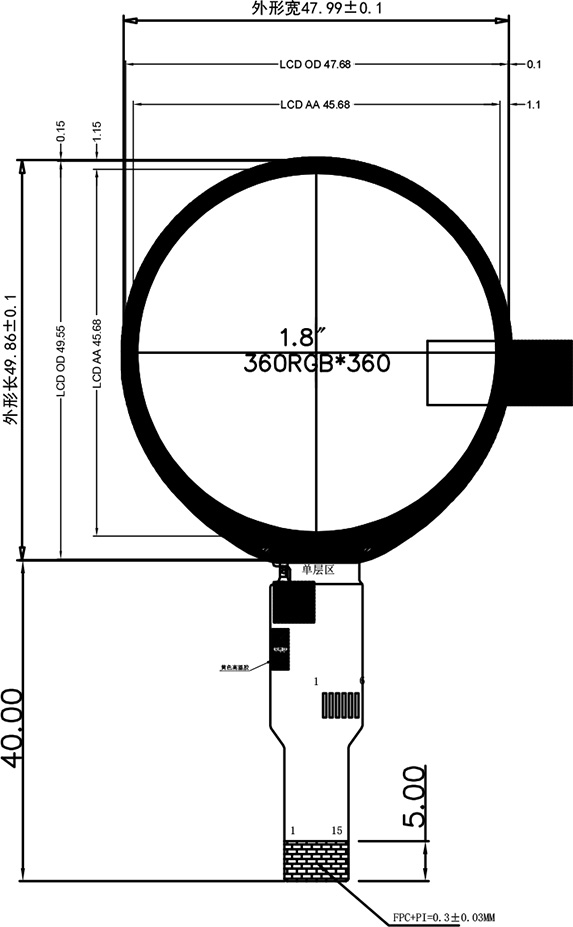

Display Area: 45.68 × 45.68 mm
Interface Type: 4-Wire SPI
Screen Dimensions: 47.99 × 49.86 × 1.96 mm

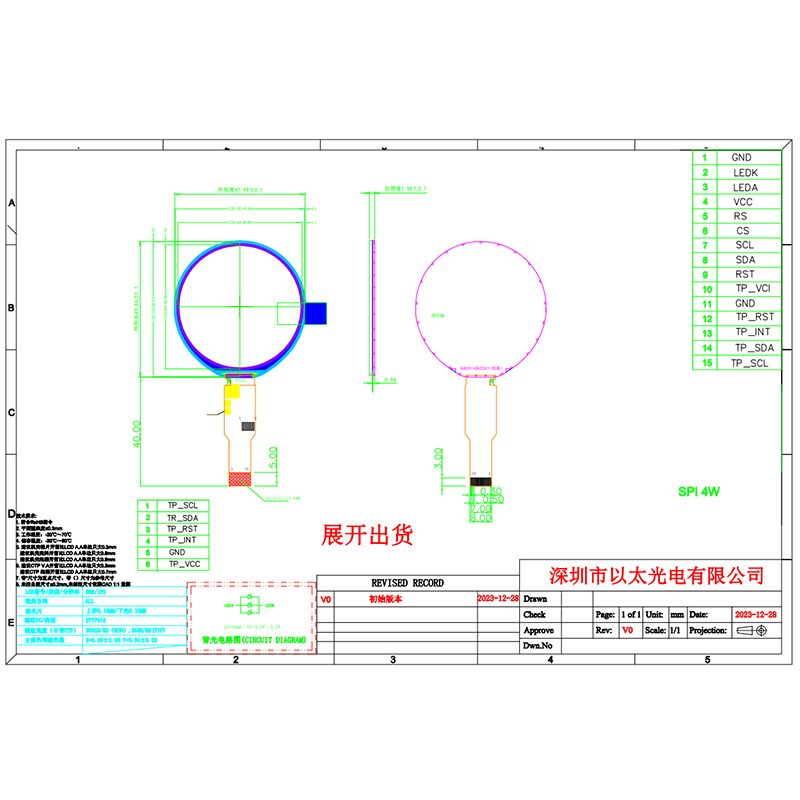

| PIN | DESCRIPTION | PIN | DESCRIPTION |
| 1 | GND | 9 | RST |
| 2 | LEDK | 10 | TP_VCI |
| 3 | LEDA | 11 | CND |
| 4 | VCC | 12 | TP_RST |
| 5 | RS | 13 | TP_INT |
| 6 | CS | 14 | TP_SDA |
| 7 | SCL | 15 | TP_SCL |
| 8 | SDA | ||
Ether Photoelectric is a high-tech enterprise integrating R&D, design, production, sales, and service, having two manufacturing bases located in Shenzhen and Jiangxi. We have developed over 100 TFT color screens and colorful module products, as well as more than 1,000 TN/HTN/STN/VA display products. Our advanced equipment, production experience, and strong R & D team allow us to work closely with you to develop the structural designs that best suit your needs, assuring you of both quality products and total after-sales support.
Customized design and development of a 3.5-inch industrial-grade intercom display for a leading communication equipment manufacturer where the display was a high-brightness IPS fully laminated touch screen meeting IP67 protection standards. Additional features included the optimized shock-resistant frame and the anti-slip texture design, which were specially made for the unique requirements of the industry, thereby achieving stable operation when used in the harsh environment. The implementation of the intelligent light-sensing adjustment technology in the screen allows for automatic changes from day to night display modes based on the surrounding light, greatly improving the level of visibility and the overall efficiency of operations carried out outdoors.
We custom-made a 5-inch medical-grade touch display for a famous medical device manufacturer using a high-resolution IPS fully laminated panel, Class B electromagnetic compatibility standard compliant. Besides medical on ergonomics requirements, we also implemented antibacterials bezels and an anti-glare design to make sure equipment can work steadily in complex environments such as operating rooms. The screen comes with a system that intelligently adjusts to the ambient light and can optimize display settings automatically, thus not only significantly reducing the visual fatigue of medical personnel but also enhancing their diagnostic and treatment work efficiency.
We made a 3.5-inch high-precision temperature control display for a well-known HVAC brand, which utilized the full-view IPS full lamination technology, and multi-touch operation was also supported. Meeting the requirements of a home environment, we went for ultra-thin bezels and a design based on rounded corners, thus perfectly fitting the style of modern interior decoration. The panel features a lighting intelligence function that adjusts the brightness and contrast levels automatically in response to the indoor lighting conditions; therefore, the user's visual experience and energy saving aspects are significantly improved.
