Product Details
P/N: | P177C011 | Size (inch): | 1.77 |
Resolution: | 128*160 | Brightness (cd/m²): | 300 |
Interface: | RGB 24bit | Display Area: | ST7262 |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | 20 cm * 30 cm * 40 cm | Delivery Time | 5-8 working days |
Payment Terms | T/T, L/C, Credit card, PayPal | Supply Ability | 500,000 piece per week |
Product Description

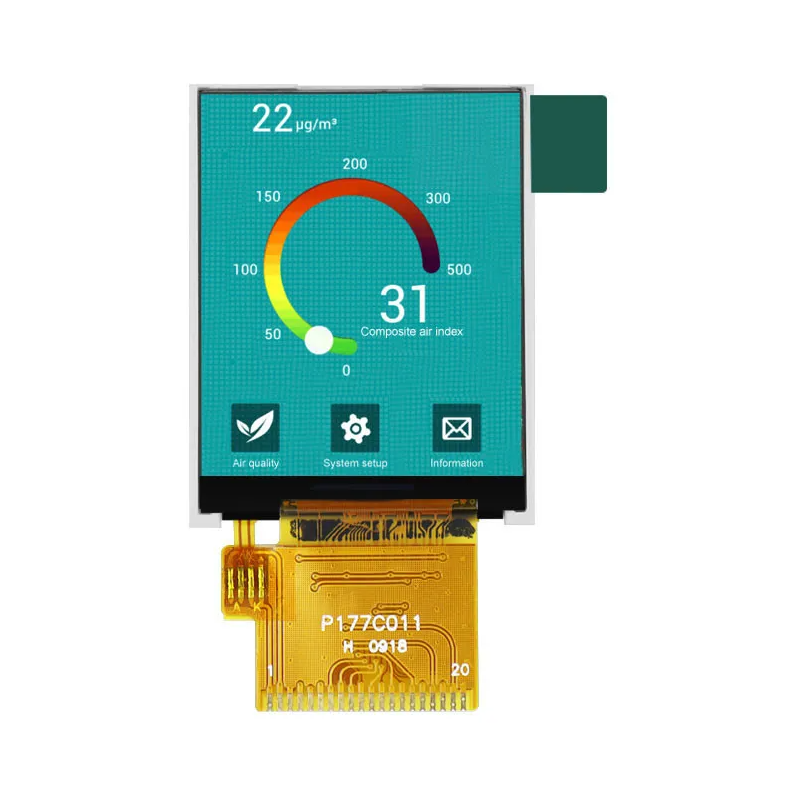

This LCD Touch Panel is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 1.77 inch then our lcd is just what you need. Improve your product design by adding our 800 * 480 resolution product. QC department measured the luminance is 300 nits under normal operating.
| P/N | P177C011 |
| Size(inch) | 1.77 |
| Resolution | 128*160 |
| Active Area(mm) | 28.03*35.04 |
| Pixel pitch(um) | 73*219 |

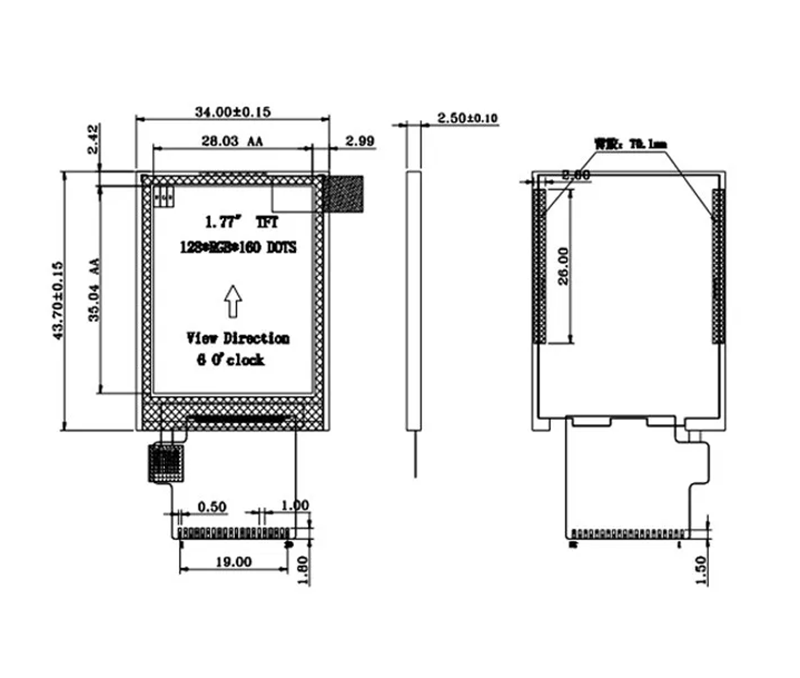

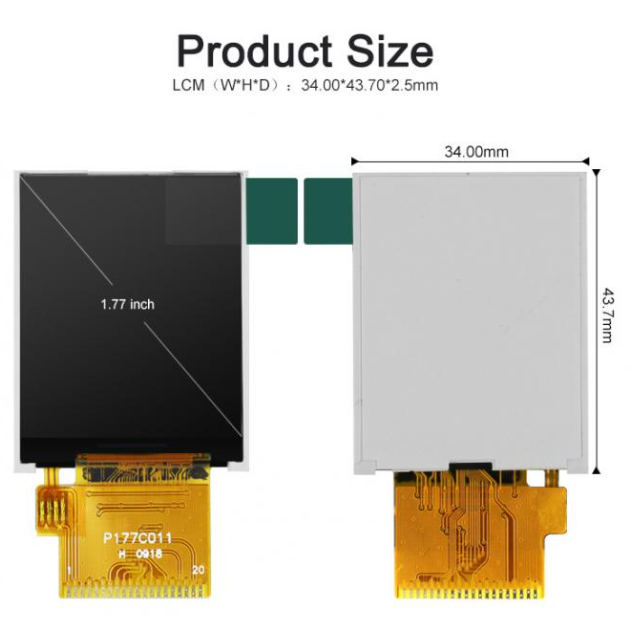

| Outline Dimension(mm) | 34.00*43.70*2.5 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | ALL |
| Display colors | 262K |
| Brightness (cd/m²) | 300 |
| Contrast Ratio | 300:1 |
| Interface | RGB 24bit |
| Back-light | LED Side-light type |
| Driver Ic | ST7262 |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 30 |
| Pin Number | 40 |
This type of RGB 24bit can be suitable for a variety of scenarios. From the datasheet we can know the driver of the LCD is is ST7262. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).
Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.
Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.
Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
