| Display Type | TFT | LCM Luminance | 300cd/m²TYP |
| Normally Black | Backalight | White Color | |
| Number of pixels | 240RGB*240 | IF=60mA,VF=3.2V | |
| Viewing Direction | ALL | Operating temperature | -20℃+70℃ |
| Color | 262K | Storage temperature | -30℃+80℃ |
| Drive IC | ST7789 | RoHS | YES |
| Interface | 4wire SPI | Unspecified Tolerance | ±0.1 |
| NO. | PIN NAME |
| 1 | SDA |
| 2 | SCL |
| 3 | D/C |
| 4 | RESET |
| 5 | CS |
| 6 | GND |
| 7 | VCC |
| 8 | LEDK |
| 9 | LEDA |
| 10 | GND |
Ethoer Photoelectric is a new technology company that combines R&D, design, production, sales, and service. It has two manufacturing bases located in Shenzhen and Jiangxi. We have made over 100 TFT color screens and colorful module products, besides more than 1,000 TN/HTN/STN/VA display products. With advanced equipment, decades of manufacturing experience, and a professional R&D team, we give you the option to design structurally customized solutions.

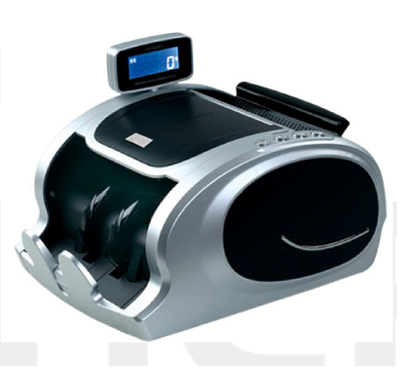

Developed a 4-inch financial-grade encrypted display customized for international banks, composed of a military-grade IPS full lamination touchscreen, aligned with PCIDSS payment security standards. In order to reach the highly demanded financial security levels, we made anti-peeping mechanism and tamper-proof frame to enhance data security on ATMs and other self-service terminals. A smart ambient light adaptation system is included in the panel, which can be set to the original display mode according to the changes in light of the branch, bringing a new level of customer experience and transaction efficiency.

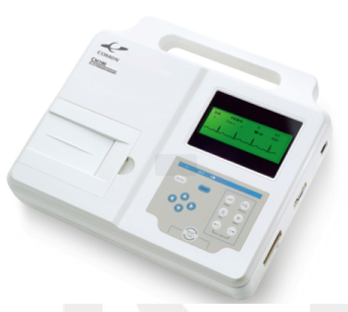

Using a high-resolution IPS fully laminated panel and complying with Class B electromagnetic compatibility standards, a 5-inch medical-grade touch display was a custom-made product for a famous medical device manufacturer. We rigorously follow medical ergonomic standards and provide antibacterial bezels together with an anti-glare feature so as to guarantee a stable functioning in operations rooms, for instance. An ambient light intelligent adjustment system is a feature of the screen that automatically modifies the display according to the user’s scenario, thus, visibly cutting down on the visual fatigue of medical staff while also increasing their diagnostic and treatment efficiency.

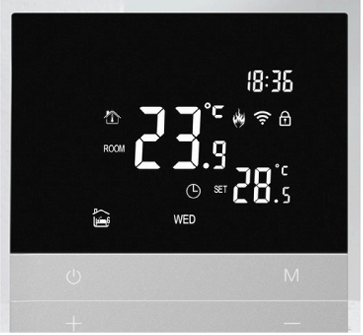

We made a 3.5-inch high-precision temperature control display for a well-known HVAC brand, which utilized the full-view IPS full lamination technology, and multi-touch operation was also supported. Meeting the requirements of a home environment, we went for ultra-thin bezels and a design based on rounded corners, thus perfectly fitting the style of modern interior decoration. The panel features a lighting intelligence function that adjusts the brightness and contrast levels automatically in response to the indoor lighting conditions; therefore, the user's visual experience and energy saving aspects are significantly improved.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
