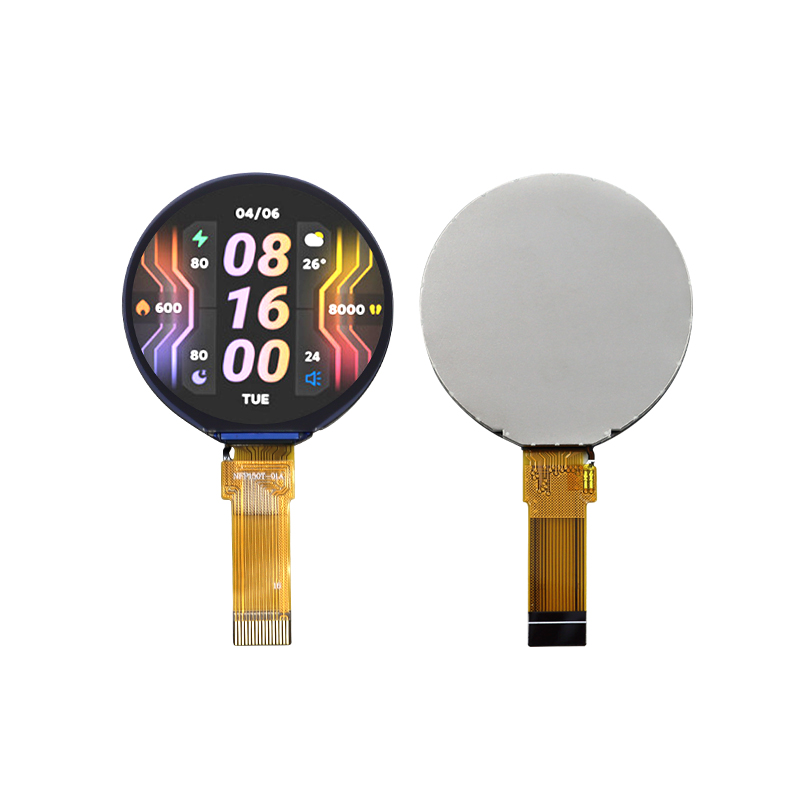

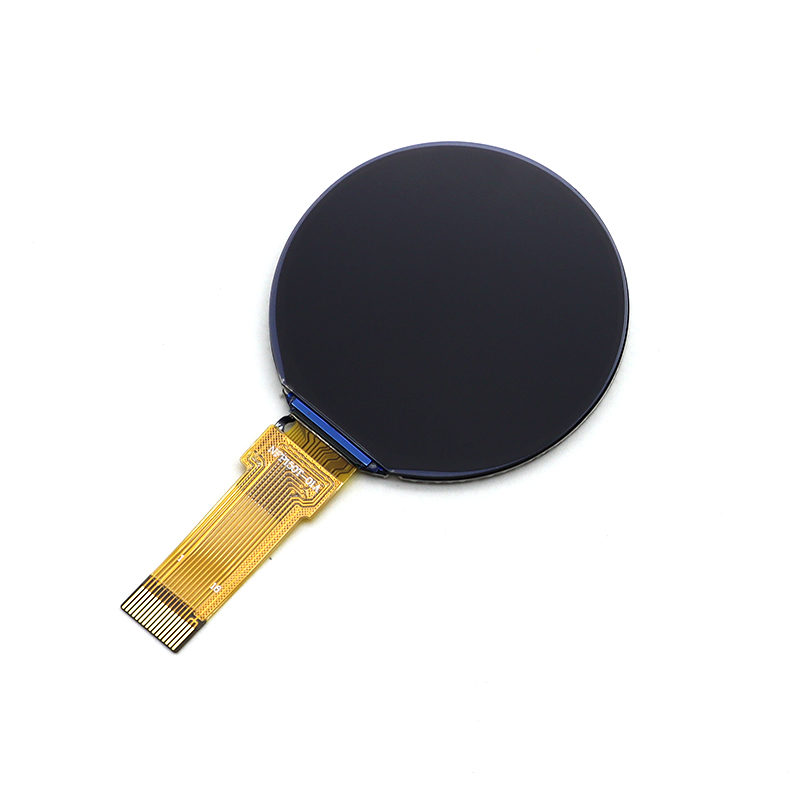

This 1.5-inch round display features a color screen with a 16-pin plug-in connection method, compactly and practically designed so installation and integration are just a breeze.
With a resolution of 360 × 360 pixels, it offers rich and sharp color display effects. Compatibility with the ST77916 driver IC ensures stable and efficient performance. The screen features a QSPI interface allowing for fast and reliable data transmission, and it can be powered by a wide voltage range from 2.8V to 3.3V.
The display dimension is 38.16 × 38.16 mm and overall the screen dimension is 40.46 × 41.96 × 2.16 mm, therefore, it is geared towards being used in scenarios where space is at a premium. The pin definitions are very straightforward and standardized, which also adds to the ease of integration, whereas the quality of its structure will guarantee you stable working under various environmental usage conditions, all while focusing on the fulfillment of fundamental, high-performance display requirements.
Product Name: 1.5" Color Screen
Product Size: 1.5 inch
Resolution: 360 × 360
Display Type: Color
Driver IC: ST77916
Connection Method: Plug-in 16P
Power Supply: 2.8V–3.3V

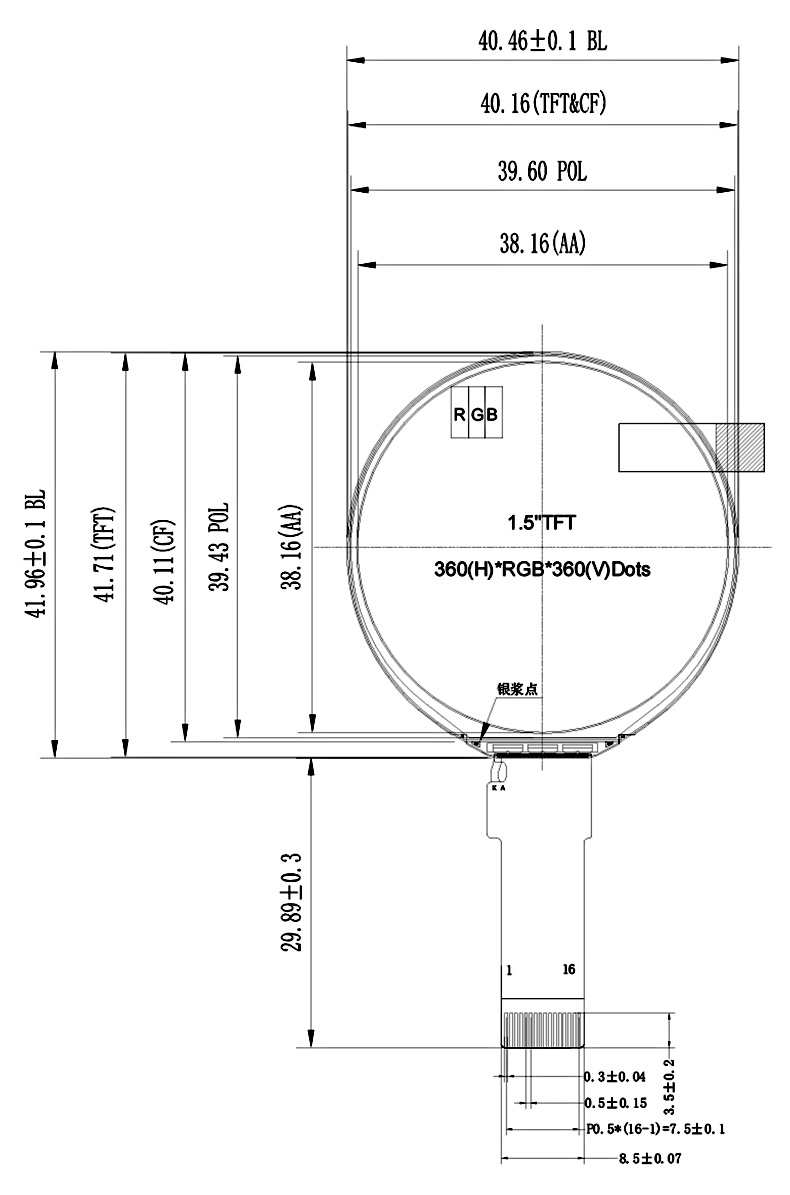

Display Area: 38.16 × 38.16 mm
Interface Type: QSPI

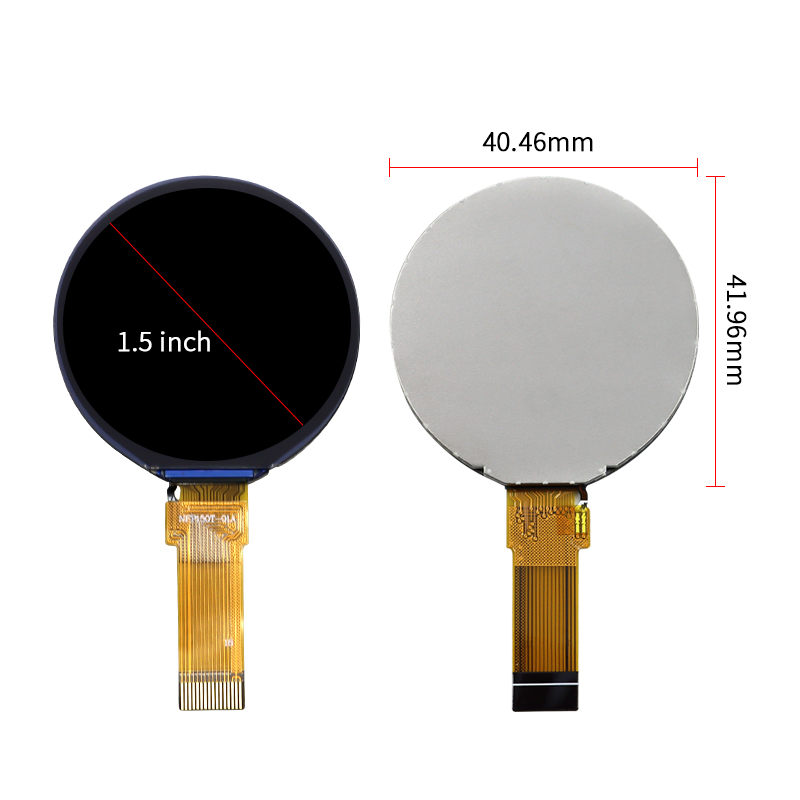

Screen Dimensions: 40.46 × 41.96 × 2.16 mm

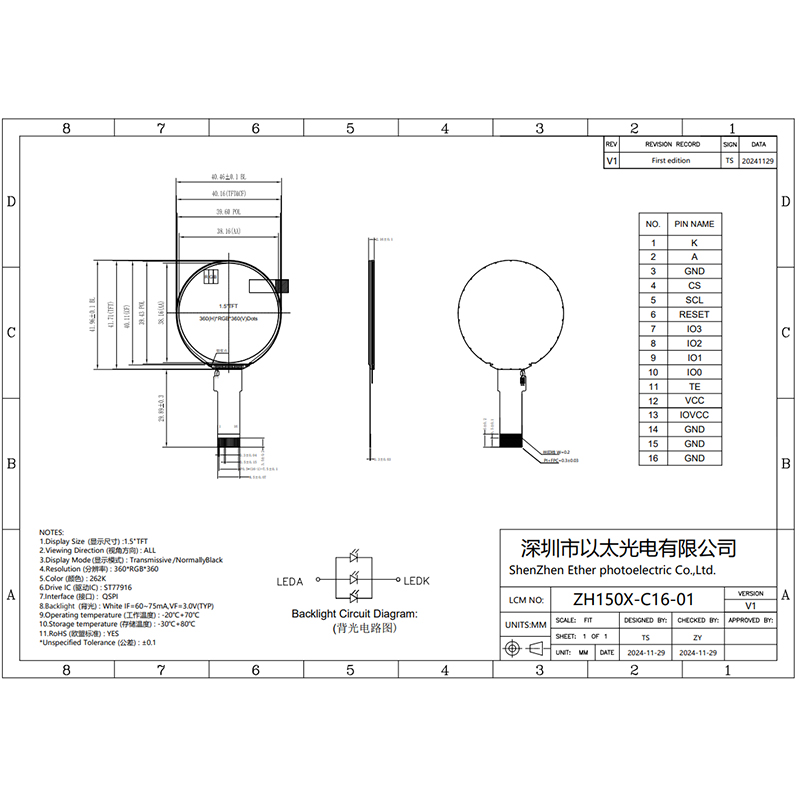

| PIN | PIN NAME | PIN | PIN NAME |
| 工 | K | 9 | I01 |
| 2 | A | 10 | I00 |
| 3 | GND | 11 | TE |
| 4 | CS | 12 | VCC |
| 5 | SCL | 13 | IOVCC |
| 6 | RESET | 14 | GND |
| 7 | I03 | 15 | GND |
| 8 | I02 | 16 | GND |
Full-process efficient service
Our one-stop services span from R&D to mass production. We can produce rapid prototypes within 7 to 15 working days, and the rate of on-time delivery for mass production is more than 98%, which greatly condensed the customer's overall development time.
Comprehensive Technical Support
We work with a professional team that covers the main areas such as driver development, system adaptation (Linux/Android), as well as structural design which, ensures that the product implementation is efficient thus, helps the client in grabbing the right market opportunities.

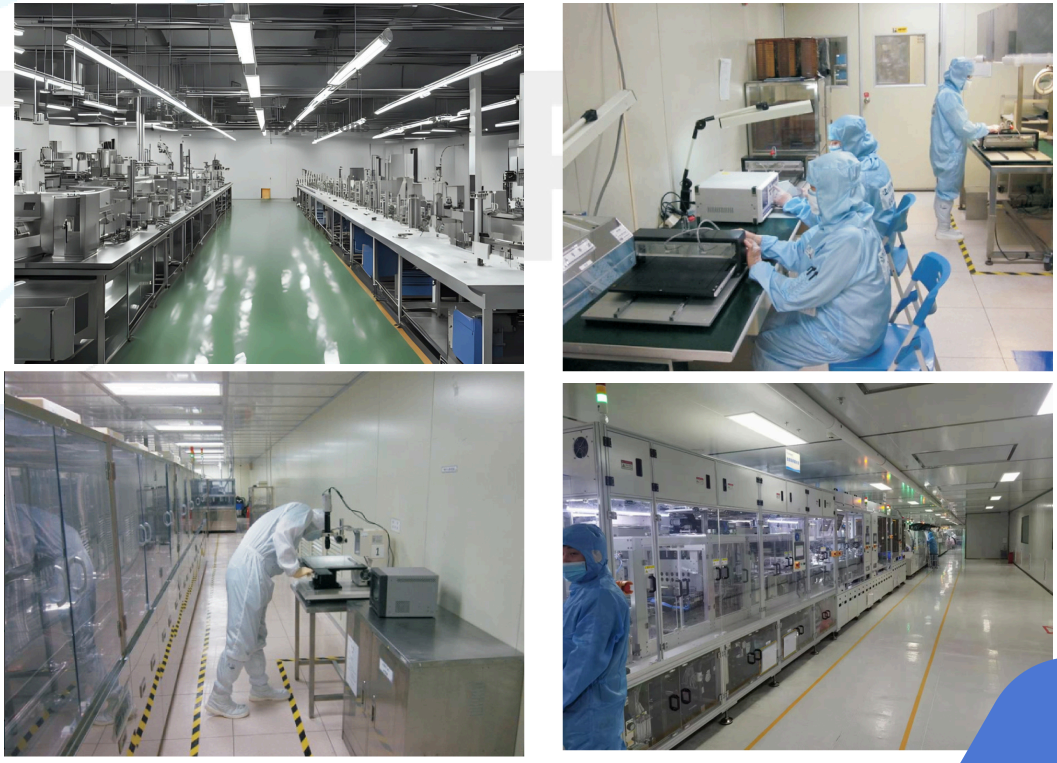

Ether Photoelectric is a state of the art company that is engaged in various integrated activities including R&D, designing, manufacturing, selling, and servicing with two factories located in Shenzhen and Jiangxi. We have designed over 100 TFT color screens and colorful module products as well as over 1,000 TN/HTN/STN/VA display products. Our strong point is being equipped with state-of-the-art equipment, having in-depth production experience, as well as a professional R&D team. We also provide customized structural designs as a supplement to our diverse range of high-quality products and comprehensive after-sales support.
To support the global expansion of the leading banks, the client ordered the creation of a 4-inch financial-grade encrypted display equipped with a military-grade IPS full lamination touchscreen that is comfortably compliant with PCIDSS payment security standards. For further increase of security, an anti-peep and tamper-proof enclosure are the main attributes of the devices installed in a bank ATM and other self-service terminals environment.
The display hosts an intelligent ambient light adaptation system that can switch automatically to the best display state according to the branch lighting conditions, quite markedly increasing the customer operation experience and transaction efficiency.
We custom-made a 5-inch medical-grade touch display for a famous medical device manufacturer using a high-resolution IPS fully laminated panel, Class B electromagnetic compatibility standard compliant. Besides medical on ergonomics requirements, we also implemented antibacterials bezels and an anti-glare design to make sure equipment can work steadily in complex environments such as operating rooms. The screen comes with a system that intelligently adjusts to the ambient light and can optimize display settings automatically, thus not only significantly reducing the visual fatigue of medical personnel but also enhancing their diagnostic and treatment work efficiency.
Designed a 3.5-inch high-precision temperature control display mainly for a famous HVAC brand, it was made with full-view IPS full lamination technology and the multi-touch operation feature. As per home environment requirements, the ultra-thin bezel and rounded corner design were used, so it is perfectly in line with modern interior decoration styles. The display carries an ambient light intelligent adjustment function that can automatically optimize display brightness and contrast according to indoor lighting conditions, greatly improving user operation experience and energy saving.
